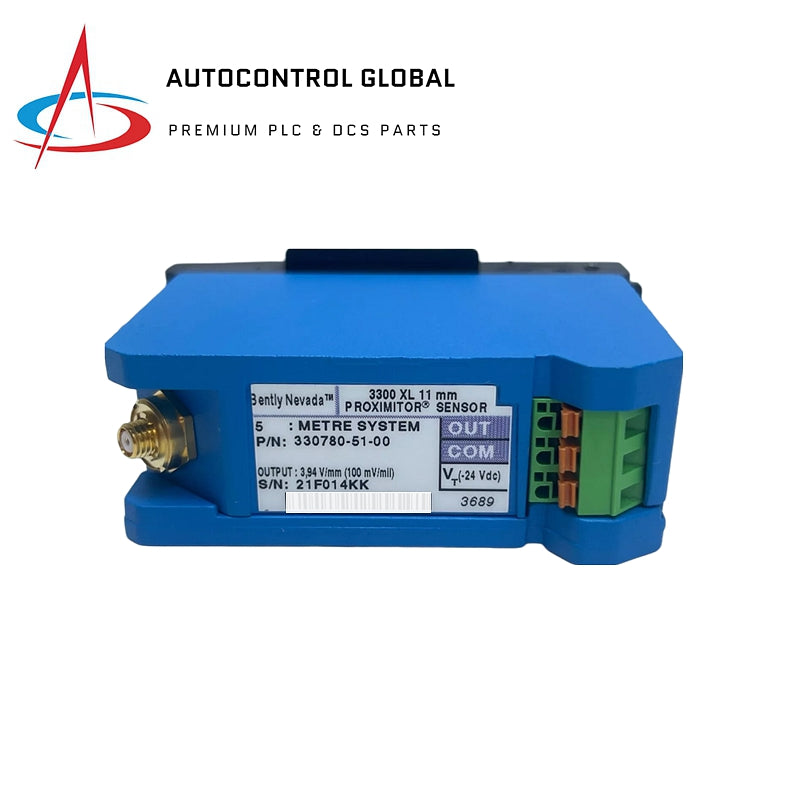

330780-51-00 | Bently Nevada | 3300 XL 11 mm Proximitor Sensor

Overview

The 330780-51-00 is a 3300 XL 11 mm Proximitor Sensor by Bently Nevada, designed for high-precision measurement in various industrial applications.

Features

• Total Length: 5.0 meters (16.4 feet) system length
• Mounting Option: DIN mount
• Material: A380 aluminum
• Agency Approval: Not required

Technical Specifications

• Relative Humidity: 100% condensing, non-submersible when connectors are protected (tested to IEC 68-2-3 damp heat)
• Operating Temperature: -35°C to +85°C (-31°F to +185°F)
• Storage Temperature: -51°C to +100°C (-60°F to +212°F)
• Frequency Response: 0 to 10,000 Hz
• Supply Voltage: 24 VDC
• Output Signal: 4-20 mA
• Environmental Protection: IP65 rating

Dimensions and Weight

• Weight: 0.255 Kg (0.56 lbs)
• Length: 50 mm (2.0 in)
• Width: 25 mm (1.0 in)
• Height: 20 mm (0.8 in)
