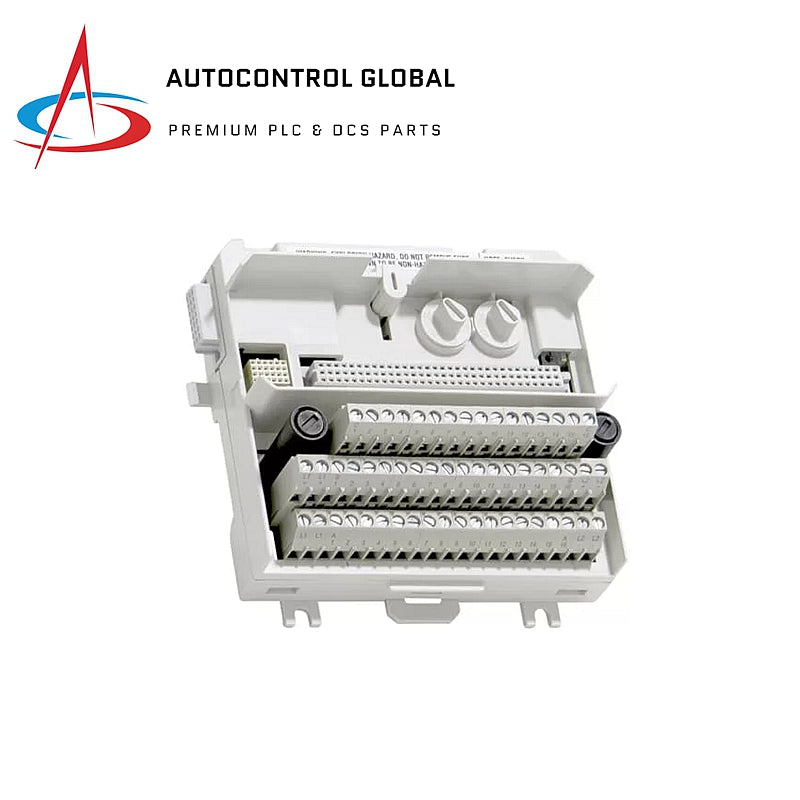

ABB TU830 Extended Module Termination Unit

Overview

The ABB TU830 Extended Module Termination Unit is designed for use in ABB Ability™ System 800xA™. It facilitates the connection of I/O modules, ensuring reliable communication and efficient system performance.

Technical Specifications

• Model: TU830

• Manufacturer: ABB

• Model Compatibility: ABB Advant S800 I/O, ABB Advant-800xA

• Dimensions: 5.0" x 3.0" x 5.0" (12.7 cm x 7.6 cm x 12.7 cm)

• Weight: 0 lbs 12.0 oz (0.3 kg)

• Voltage Rating: 50 V

• Number of I/O Channels: 16

• Process Voltage Connections: 2

• Mounting: DIN rail

• Mechanical Keying: Prevents incorrect module insertion

• Latching Device: For grounding to DIN rail

• Certifications: UL, CE, CSA

• Operating Temperature Range: 0°C to 55°C (32°F to 131°F)

• Environmental Resistance:

  • Shock: 15 g for 11 ms

  • Vibration: 5 g at 10-500 Hz
