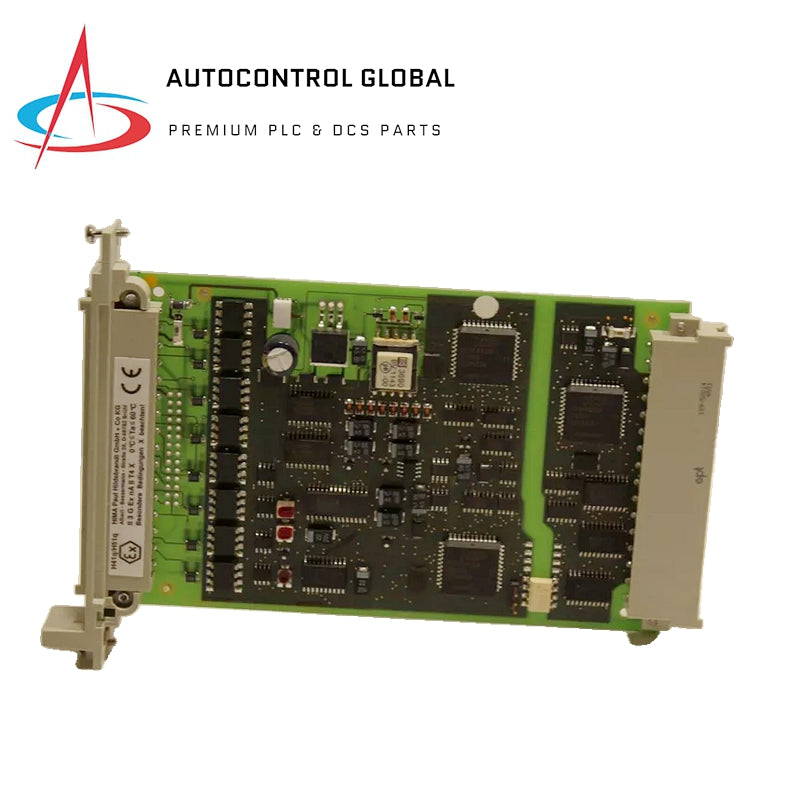

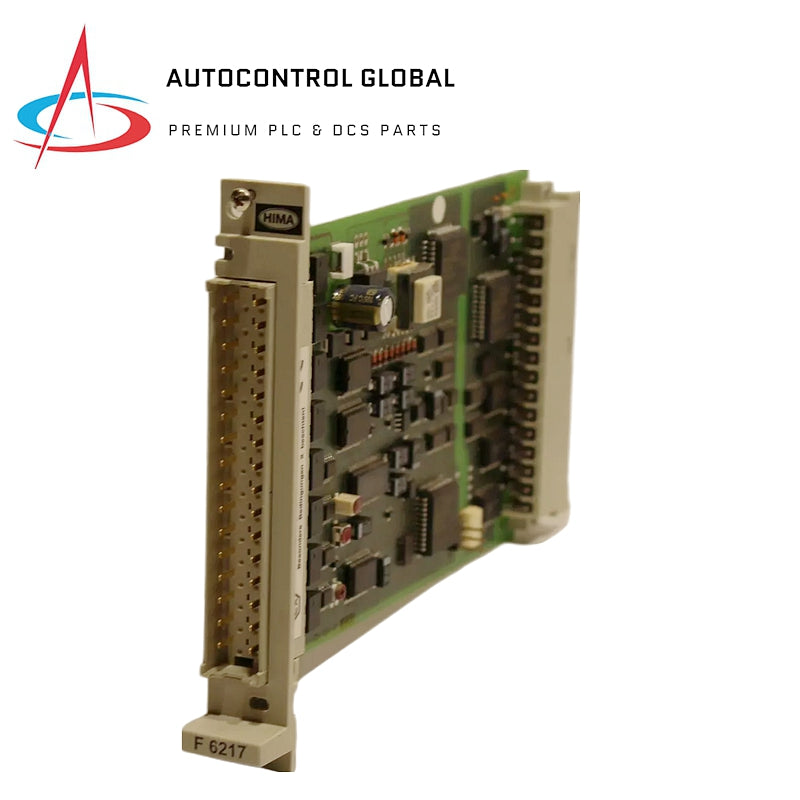

F 6217 | F6217 | HIMA | 8 Fold Analog Input Module

Overview

The F 6217 (F6217) by HIMA is an 8-fold analog input module designed for safety-related applications. It supports current inputs (0/4...20 mA) and voltage inputs (0...5/10 V), with integrated safety isolation. The module is tested according to AK6/SIL3 and offers high resolution and reliable safety performance for critical systems.

Key Specifications

• Inputs:
  • Current: 0/4...20 mA
  • Voltage: 0...5/10 V
  • Maximum Input Voltage: 7.5 V
  • Maximum Input Current: 30 mA
• Resolution:
  • 12 bits, with 0 mV = 0 and 5.5 V = 4095
• Accuracy:
  • Basic Error: 0.1% at 25°C
  • Operating Error: 0.3% at 0...+60°C
  • Error Limit for Safety: 1%
• Safety:
  • Tested according to AK6/SIL3
  • Safety Isolation Included
  • Electric Strength: 200 V against GND

Performance and Testing

• Measurement Update:
  • 50 ms
• Safety Time:
  • < 450 ms
• Input Resistance:
  • 100 kOhm
• Time Constant:
  • Approx. 10 ms
• Redundant Processor System:
  • Self-testing of microcontrollers, memory, and input filters
  • Tests for linearity, cross-talk, and I/O bus communication

Construction and Space Requirements

• Space Requirement:
  • 4 TE (Modular design)

Operating Data

• Voltage:
  • 5 V DC: 80 mA
  • 24 V DC: 50 mA
