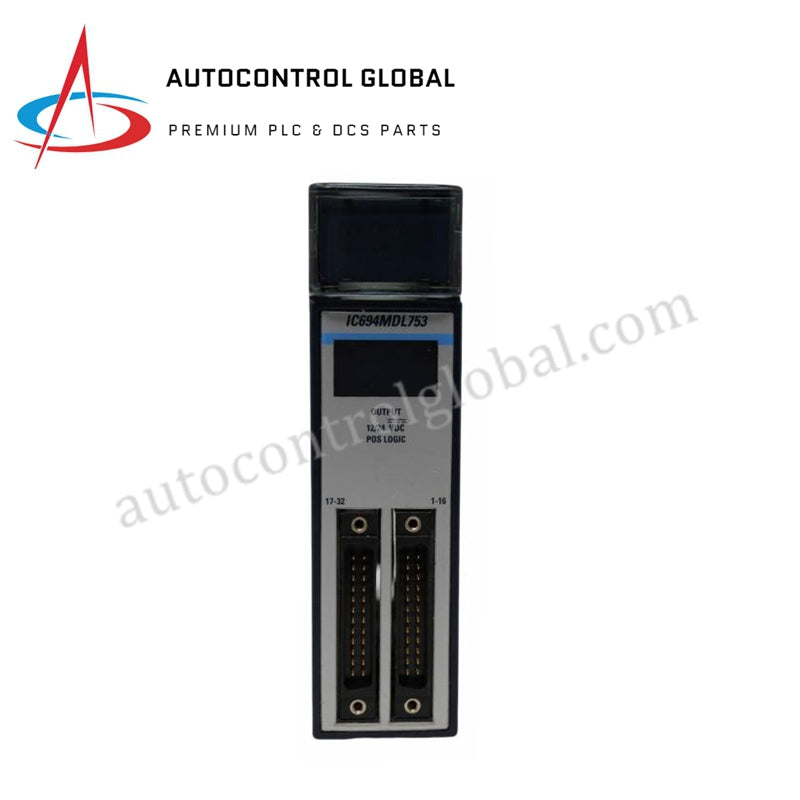

GE Fanuc IC694MDL753 High Density Discrete Output Module

Overview

The IC694MDL753 is a High Density Discrete Output Module from GE Fanuc's PACSystem RX3i series. Designed for applications requiring a high number of discrete outputs, this module provides 32 outputs with a positive logic configuration, ideal for control systems that need precise and reliable switching.

Key Specifications

• Model: IC694MDL753

• Product Type: High Density Discrete Output Module

• No. of Channels: 32

• No. of Output Groups: 4

• Output Voltage Range: 10.2-28.8 VDC

• Output Current: 0.5 Amps per point; 4 Amps maximum per group

• Operating Voltage: 12/24 Volts DC

Electrical Characteristics

• On-State Voltage Drop: 0.3 VDC

• Off-State Voltage Leakage Current: 0.1 mA (Maximum)

• Switching Current: 3.0 Amps per Group

• Response Time: 0.5 ms (Maximum, On and Off)

• Inrush Rating: 5.4 Amps

Wiring & Configuration

• Wiring Configuration: Positive Logic

• Nominal Output Voltage: 12/24 VDC

• I/O Capacity: 32 Discrete Outputs

• Compatible Pre-Wired Cables: IC694CBL327 / IC694CBL328

Performance & Installation

• Point to Point Isolation: Yes

• Max Backplane Draw: 260 mA

• Output Current per Module: 3 Amps

Applications

• Primary Application: RX3i PACSystems
