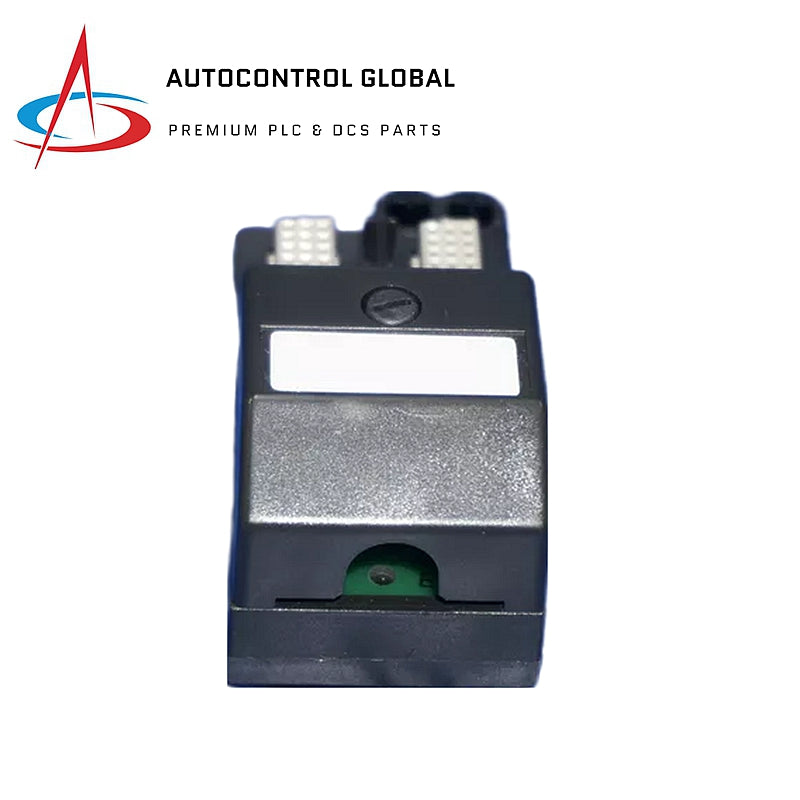

KJ4001X1-CE1 | Emerson | Mass Terminal Block

Overview

The Emerson KJ4001X1-CE1 Mass Terminal Block is a robust and reliable 16-pin terminal block designed for industrial automation systems. It provides secure and efficient connections for mass termination in various applications.

Power Specifications

• Input Power Rating: 30 VDC @ 1 A per channel

Environmental Specifications

• Ambient Temperature: -40 °C to +70 °C
• Shock: 10 g half-sine wave for 11 ms
• Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
• Airborne Contaminants: ISA-S71.04-1985 Airborne Contaminants Class G3
• Relative Humidity: 5 to 95% non-condensing

Removal and Insertion

• This unit cannot be removed or inserted with system power energized.

Maintenance and Adjustment

• This unit contains no user-serviceable parts and should not be disassembled. Calibration is not required.
