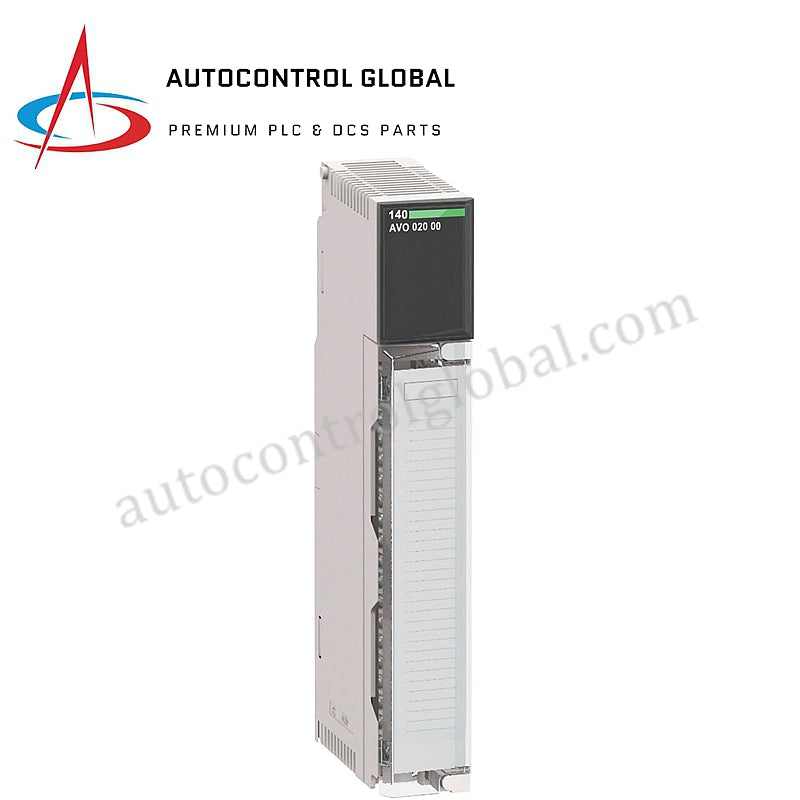

140AVO02000 | Schneider | Analog Output Module

Product Overview

The 140AVO02000 is an analog output module with 4 outputs, offering a variety of output ranges and high precision.

Key Specifications

• Output Range:

• ±10 V ≥ 1000 Ohm (bipolar)

• ±5 V ≥ 500 Ohm (bipolar)

• 0...10 V ≥ 1000 Ohm (unipolar)

• 0...5 V ≥ 500 Ohm (unipolar)

• Resolution: 12 bits

• Current Output: -10…10 mA

• Accuracy: ±0.15% of full scale (at 77 °F / 25 °C)

• Linearity: ±1 LSB

• Drift: 0.003–0.007% of full scale/°C

• Update Time: 3 ms

• Bus Current Requirement: 700 mA

• Power Dissipation: 4.5 W

General Information

• Weight: 0.7 lb (0.3 kg)

• Marking: CE

• Module Format: Standard

• LED Indicators: Green for active communication and turned-on channels; Red for faults
