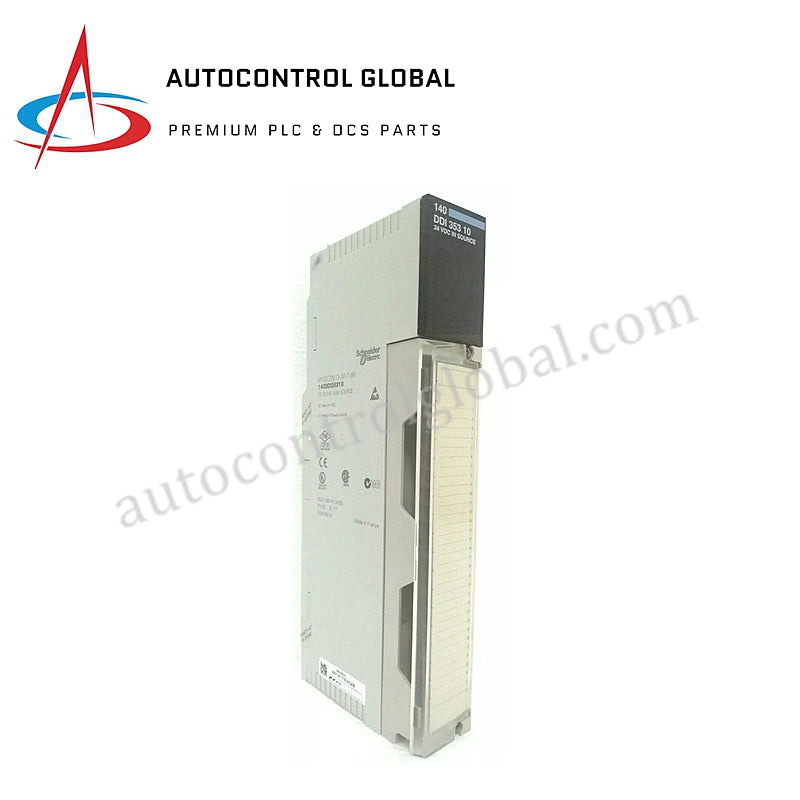

140DDI35310 | Schneider | Discrete Input Module

Description

The 140DDI35310 is a low-voltage DC discrete input module designed for use with the Modicon Quantum automation platform. It provides 32 discrete inputs and is ideal for monitoring signals in industrial systems with fast response times and reliable input protection.

Specifications

• Discrete Input Number: 32
• Input Voltage: 24 V DC (19.2...30 V range)
• Voltage State 1 Guaranteed: -30...-15 V DC
• Voltage State 0 Guaranteed: -5...0 V DC
• Current State 1 Guaranteed: ≥ 2.5 mA at Us = -14 V
• Input Impedance: 2400 Ohm
• Response Time: ≤ 1 ms
• Maximum Leakage Current: 200 mA at Us = 5.5 V and Uin = 4 V
• Isolation:
  • Between group and bus: 1780 Vrms for 1 minute
  • Between group: 500 Vrms for 1 minute
• Power Dissipation: 1.5 W + (0.26 × number of points on)
• Current Consumption: 330 mA
• Local Signaling: LEDs for communication, external faults, and input status
• Weight: 0.3 kg
