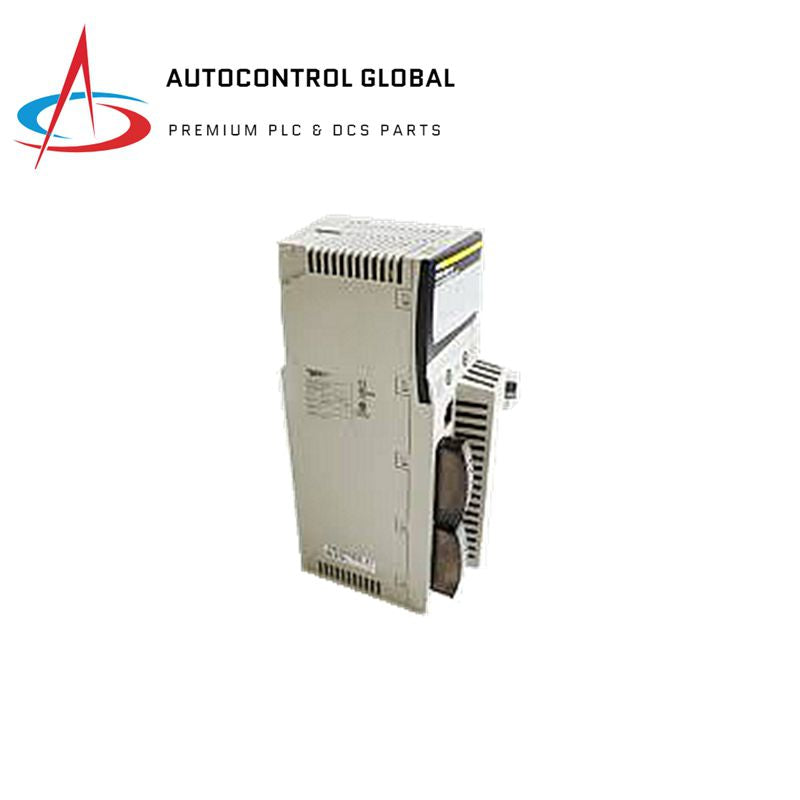

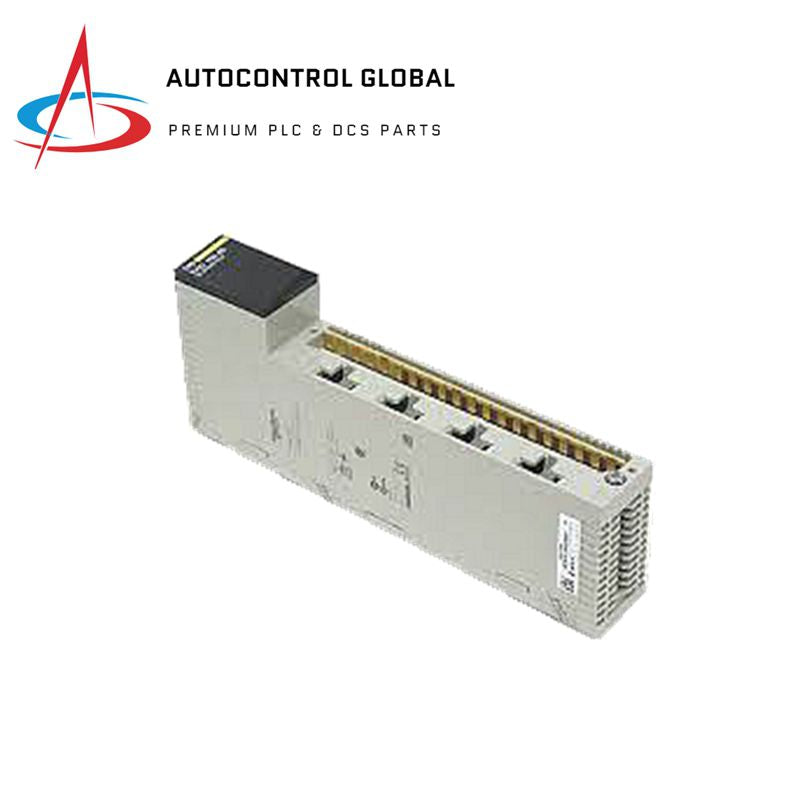

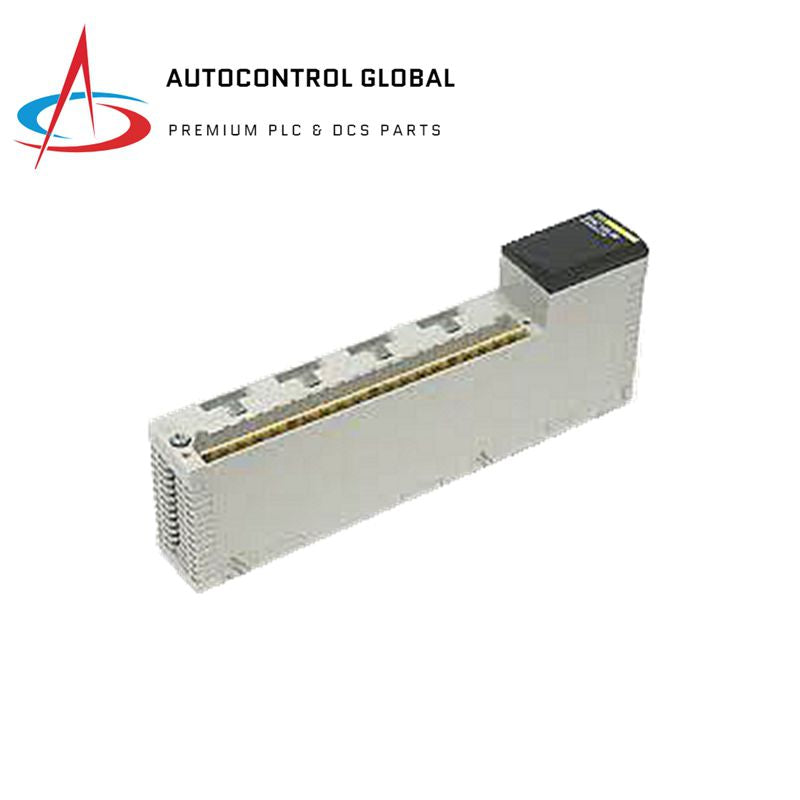

140EHC10500 | Schneider | High-speed Counter Module

Description

The Schneider 140EHC10500 is a high-speed counter module designed for the Modicon Quantum automation platform. It features 8 inputs and can handle counting frequencies up to 100000 Hz. This module is used for high-speed counting applications in industrial automation.

Features

• High-speed counter module
• 8 discrete inputs
• Counting frequency up to 100000 Hz
• Discrete incremental counter
• Field Effect Transistor (FET) outputs
• CE marking
• RoHS/REACh compliant

Technical Specifications

• Number of Channels: 5
• Number of Inputs: 8
• Counting Input Voltage: 30 V DC max
• Counting Input Current: 7 mA
• Counting Frequency: 100000 Hz
• Discrete Input Current: 5 mA
• Operating Threshold: 15…30 V single ended mode, 24 V REF DC at state on, 3…5 V single ended mode, 24 V REF DC at state off
• Discrete Output Number: 8
• Discrete Output Type: Field Effect Transistor (FET)
• Discrete Output Voltage: 0 V switch off DC, 20…30 V switch on DC
• Load Current: 0.21 A
• Maximum Leakage Current: 0.1 mA state off
• Maximum Voltage Drop: <1.25 V state on
• Isolation Between Channels and Bus: 500 Vrms 60 s
• Fault Type: Loss of output field power, Output short-circuit protection
• Power Dissipation: >= 6 W
• Bus Current Requirement: 250 mA
• External Power Requirement: 19.2…30 V
• Module Format: Standard
• Operating Temperature: 0…60 °C
• Storage Temperature: -40…85 °C
• Relative Humidity: 95 % without condensation
• Operating Altitude: <= 5000 m
• Standards: UL 508, RINA, UL, GOST, LR, CSA Class 1 Division 2, RRS, ABS, GL, DNV, C-tick
