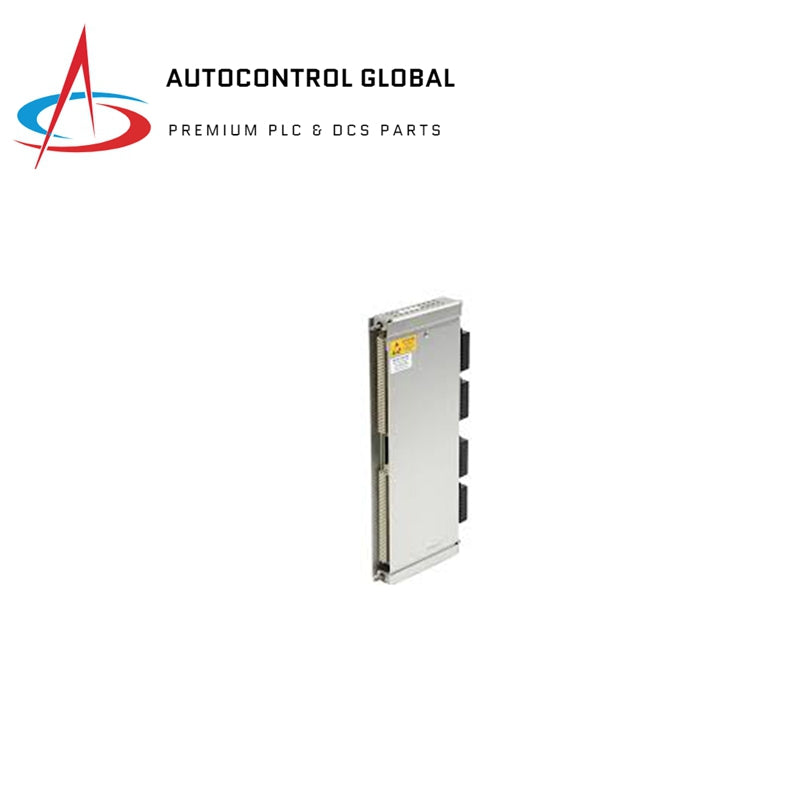

172103-01 | Bently Nevada | 3500/65 I/O Module

Description

The Bently Nevada 3500/65 172103-01 is an RTD/Isolated Tip TC I/O Module with Internal Terminations. It is part of the 3500/65 Temperature Monitor system, designed for critical temperature monitoring in industrial applications. The module accepts both resistance temperature detectors (RTD) and isolated tip thermocouple (TC) temperature inputs. These inputs are conditioned and evaluated against user-programmable alarm setpoints.

Features and Technical Specifications

• Inputs:
  • Accepts up to 16 temperature channels.
  • Compatible with RTD or TC inputs.
  • Supports isolated tip thermocouples, 3-wire RTDs, 4-wire RTDs, or a combination of TC and RTD inputs.
• Compatibility:
  • The 3500/65 software should not be used with 3500/02 or 3500/03 software.
  • Internal termination I/O modules cannot be used with external termination blocks.
• Dimensions:
  • Height x Width x Depth: 241.3 mm x 24.4 mm x 99.1 mm
  • Weight: 0.45 kg
