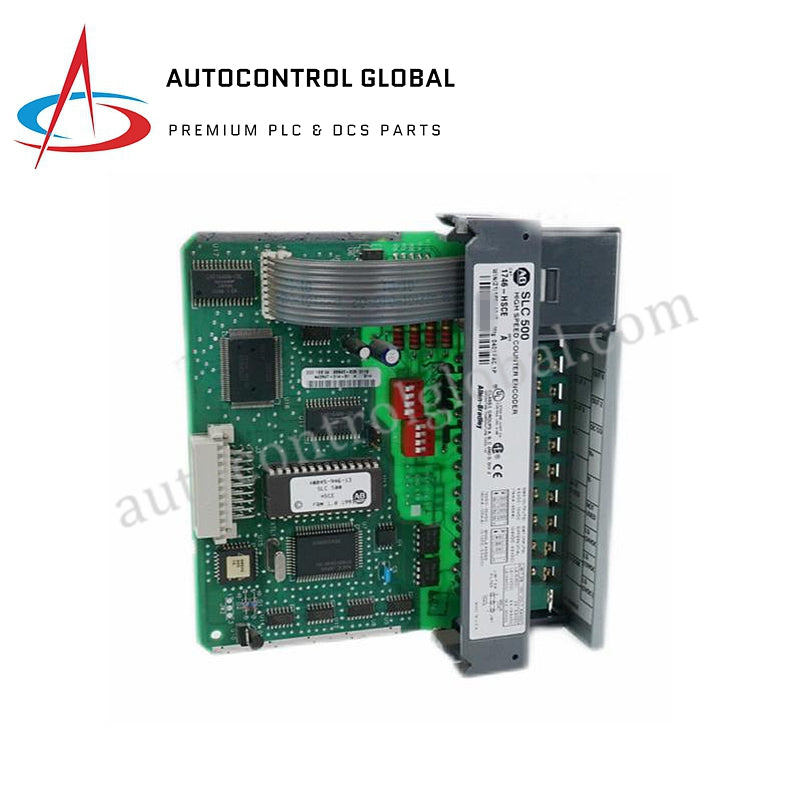

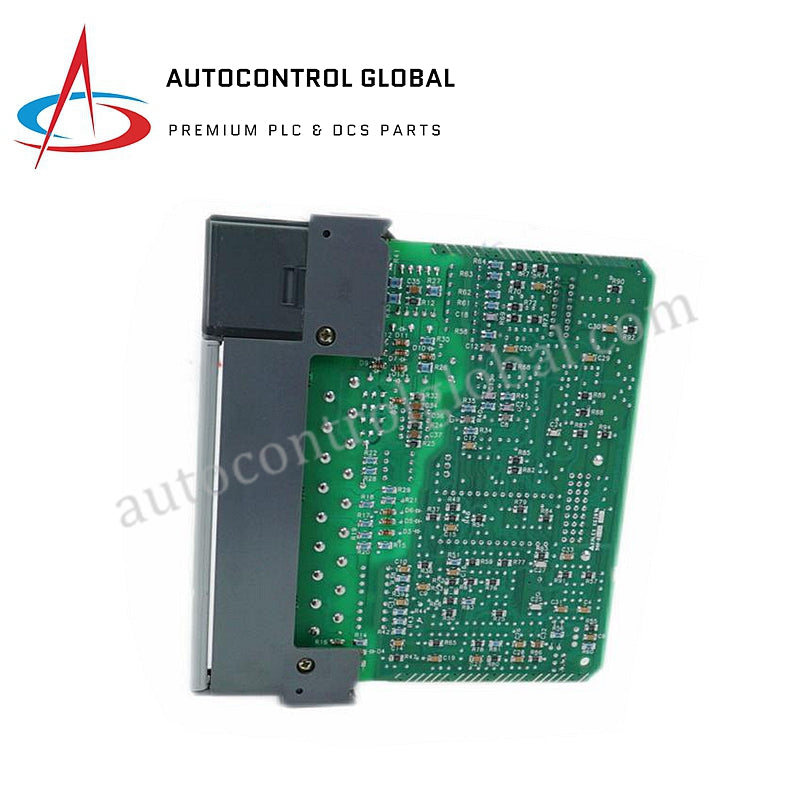

1746-HSCE Allen-Bradley High-Speed Counter Module

Description

The 1746-HSCE is a high-speed counter module by Allen-Bradley, designed for use with the SLC 500 series. It provides precise counting capabilities for high-speed input signals and features a variety of input/output configurations.

Specifications

• Manufacturer: Rockwell Automation

• Product No.: 1746-HSCE

• Module Type: High-Speed Counter Module

• Series: SLC 500

• Brand: Allen-Bradley

• Backplane Current: 320 mA at +5V; 0 mA at +24V

Input/Output

• Channels: 1 counting channel

• Input Voltage: ±5V DC (Differential); 0-5V DC (Single-ended)

• Min. Pulse Width: 10 µs

• Min. Pulse Separation: 4.5 µs

• Max. Input Frequency:

• Sequencer and Range: 50 kHz

• Rate: 32.767 kHz

• Outputs: 4 open-collector outputs

• 16 mA at 4.5V DC

• 40 mA at 10V DC

• 125 mA at 30V DC

• On-State Output Current:

Operating Conditions

• Operating Temperature: 0°C to +60°C (+32°F to +140°F)

• Storage Temperature: -40°C to +85°C (-40°F to +185°F)

• Relative Humidity: 5 to 95% (without condensation)

Additional Information

• Max Cable Length: 305 m (1000 ft)

• Recommended Cable: Belden 9503 or equivalent
