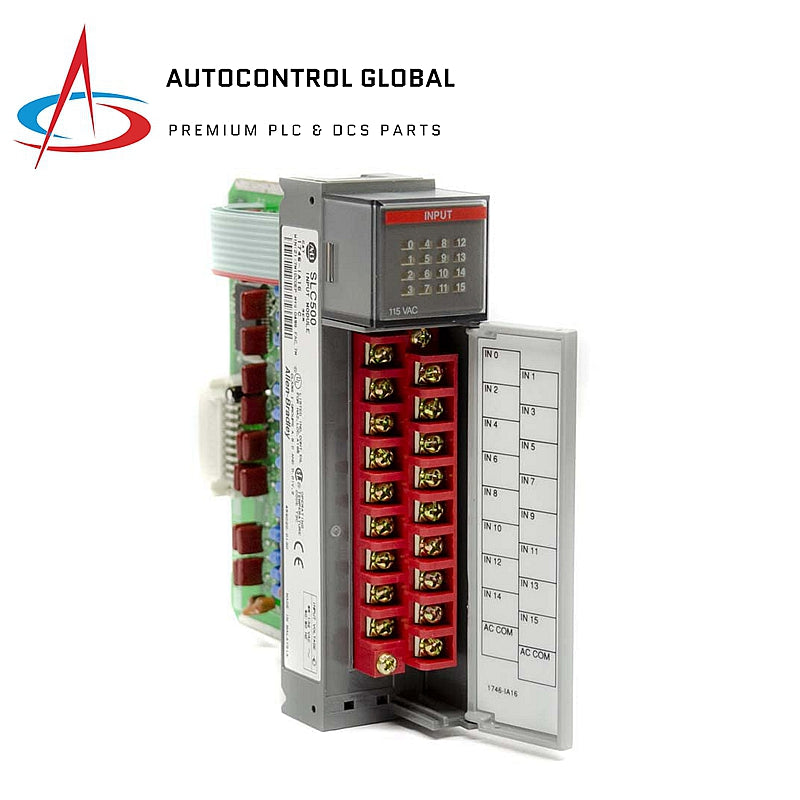

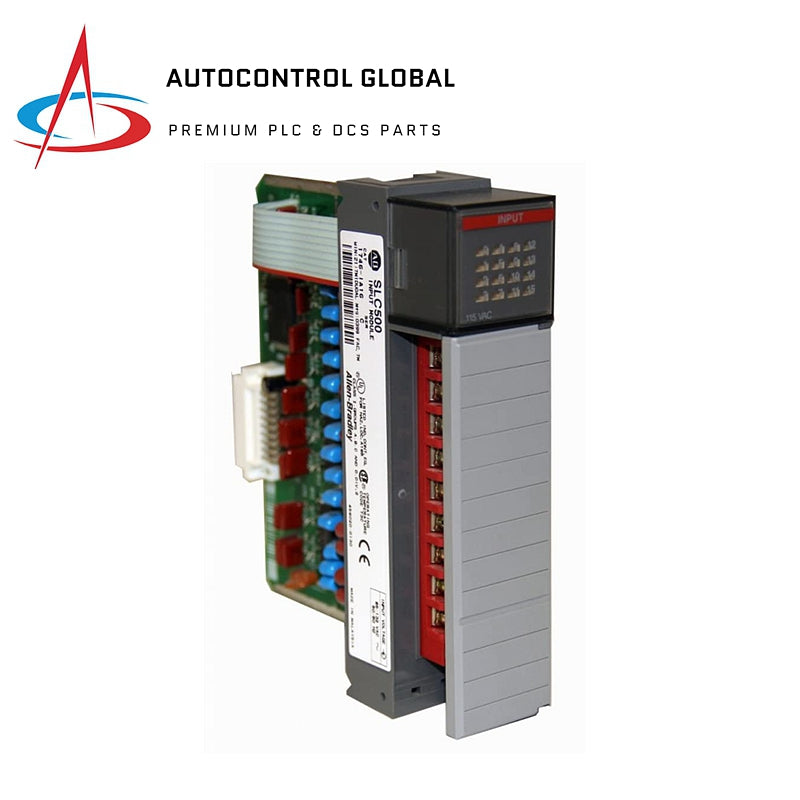

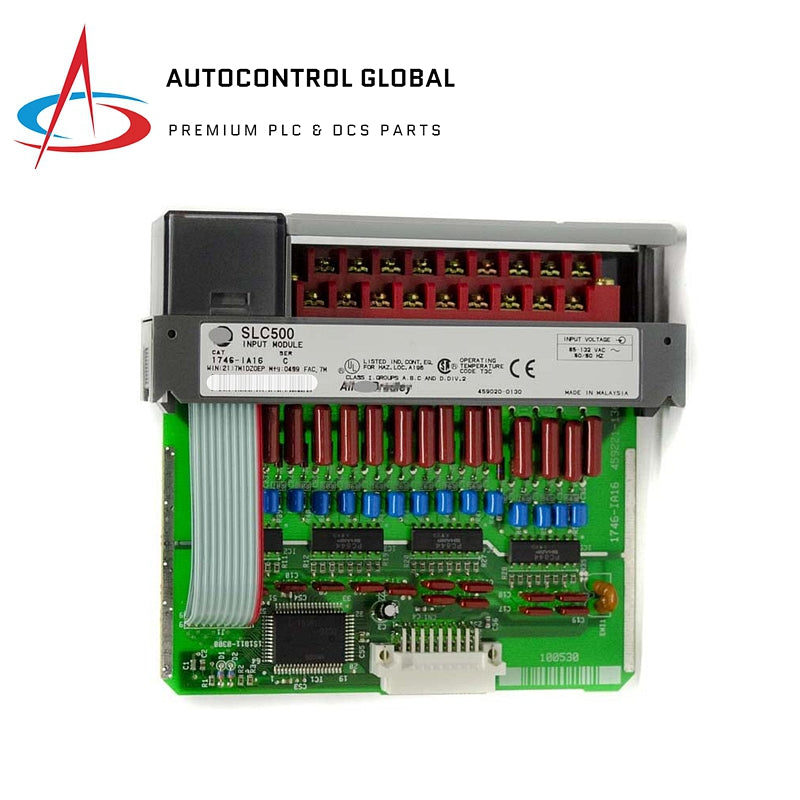

1746-IA16 | Allen-Bradley | Digital AC Input Module SLC 500

Description

The 1746-IA16 is an Allen-Bradley SLC 500 Digital AC Input Module. It features 16 input channels with a voltage range of 85-132V AC. The module is designed for integration into the SLC 500 platform and occupies a single slot in the chassis.

Specifications

• Model: 1746-IA16
• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Module Type: Digital AC Input Module
• Series: SLC 500
• Voltage Range: 85-132V AC
• Input Channels: 16
• Backplane Current (5V DC): 85mA
• Signal Delay (ON): 35ms
• Signal Delay (OFF): 45ms
• OFF-State Voltage (max): 50V AC
• OFF-State Current (max): 2mA
• Step Response: 100ms in, 2.5ms out
• Signal Delay (max): 45ms

Features

• 16 Channels: Accepts AC input signal from 85V to 132V AC
• Removable Terminal Block: Allows easy replacement and wiring without disconnection
• Compatible: Works with SLC 500 controllers in both fixed and modular hardware setups
• Mounting: Chassis-type mounting
• Applications: General-purpose AC input for various digital systems
• Inrush Current: Max 0.8mA, 500μs duration

Additional Information

• Weight: 0.34kg
• Dimensions: 5 x 2 x 6 inches (13 x 5 x 15 cm)
• Power Consumption: 4.8W total
• Operating Temperature: 0-60°C
• Humidity: 5% to 95% non-condensing
• Input Signal Voltage: 85-132V AC, 47-63Hz
