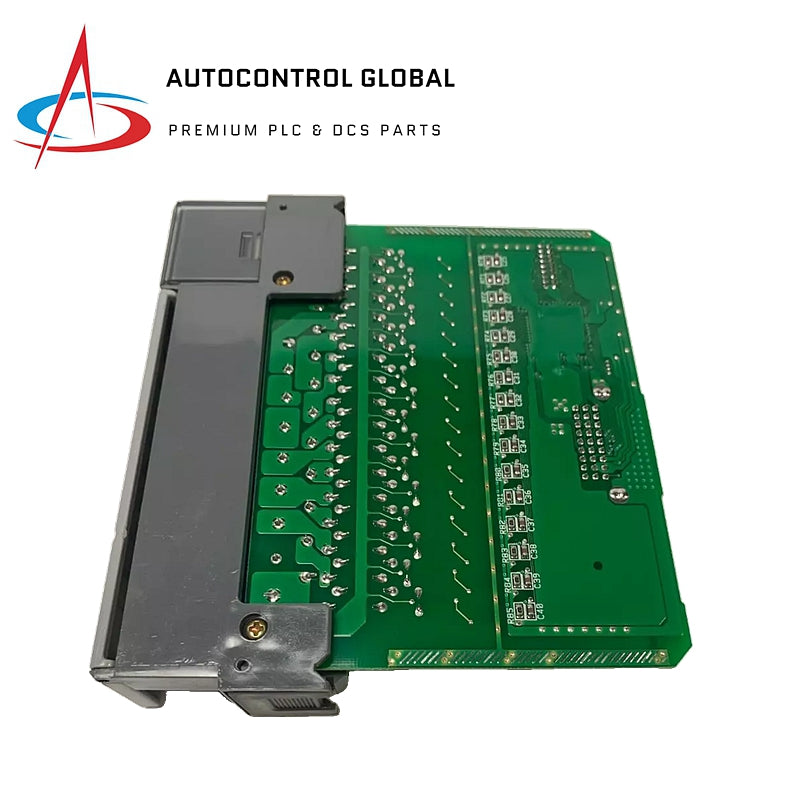

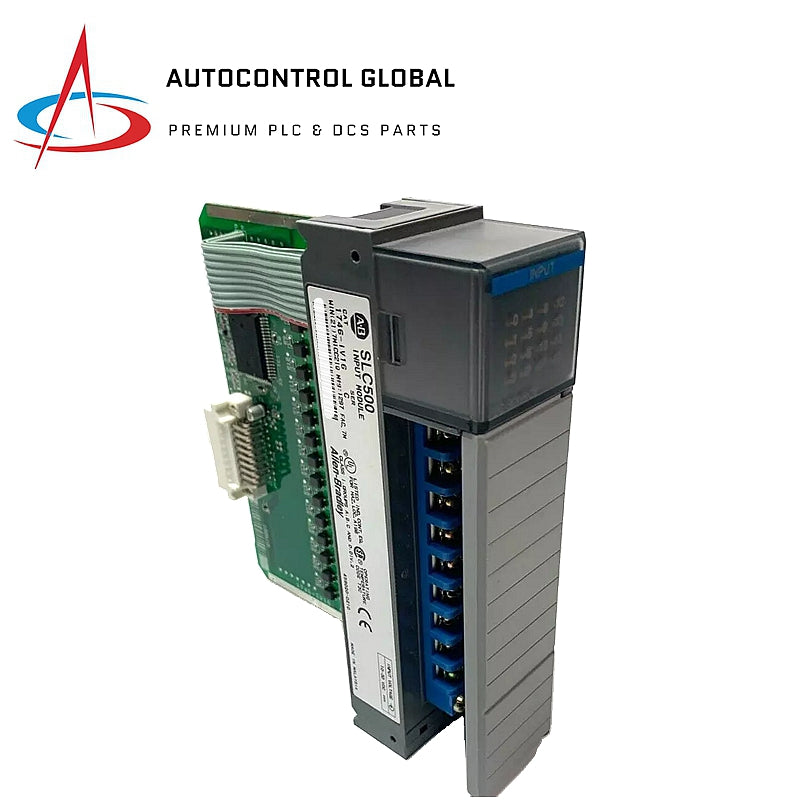

1746-IV16 | Allen-Bradley | Sourcing Discrete Input Module

Description

The 1746-IV16 is an Allen-Bradley SLC 500 sourcing discrete input module. It features 16 input channels and operates with a 24VDC nominal input voltage, supporting an input voltage range of 10-30VDC. This module interfaces with devices that provide binary ON/OFF signal states, such as switches, sensors, and auxiliary contacts.

Specifications

• Model: 1746-IV16
• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Module Type: Discrete Input Module
• Series: SLC 500
• Nominal Input Voltage: 24VDC
• Input Voltage Range: 10-30VDC
• Nominal Input Current: 8mA
• Max Off-State Voltage: 5VDC
• Max Off-State Current: 1mA
• Backplane Current: 0.085A
• Signal Delay:
  • On: 0.3ms
  • Off: 0.5ms
• Inputs: 16
• Backplane Current (5VDC): 85mA
• Signal Delay Time: 8ms
• Off-State Current: 1mA

Features

• Sourcing Input Channels: 16 binary input channels
• Source Wiring: Provides signal voltage to the loop
• Compact: Single-slot wide module
• LED Indicators: 16 status LEDs
• Modular Wiring: Removable terminal blocks for easy wiring
• Applications: General-purpose DC inputs

Additional Information

• Power Dissipation: 3.6W max
• Operating Temp: 0°C to 60°C
• Humidity: 5%-95% non-condensing
• Compatible With: SLC 500 processors, Ladder Logic
