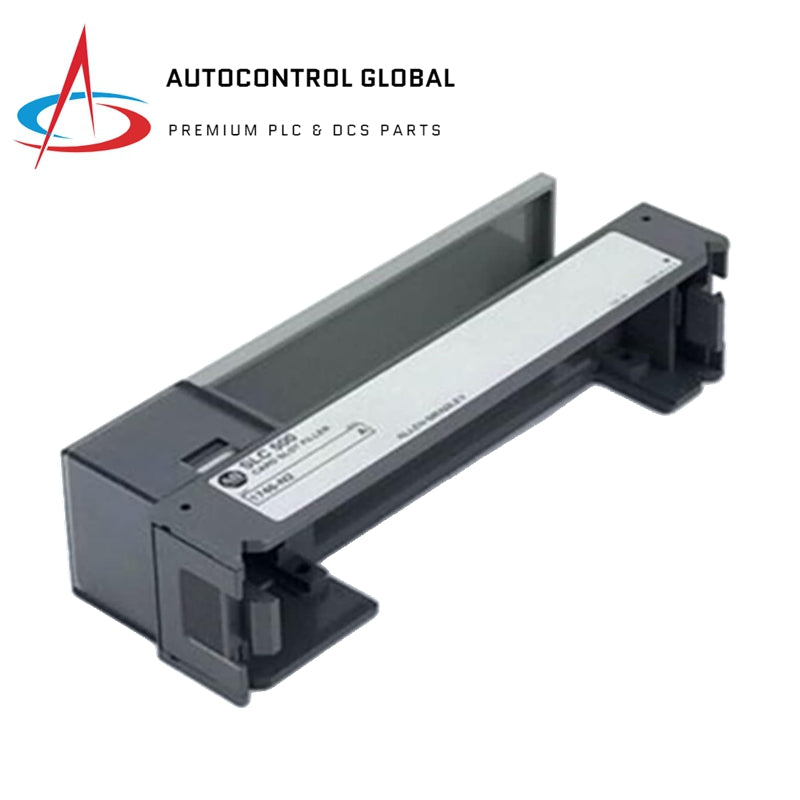

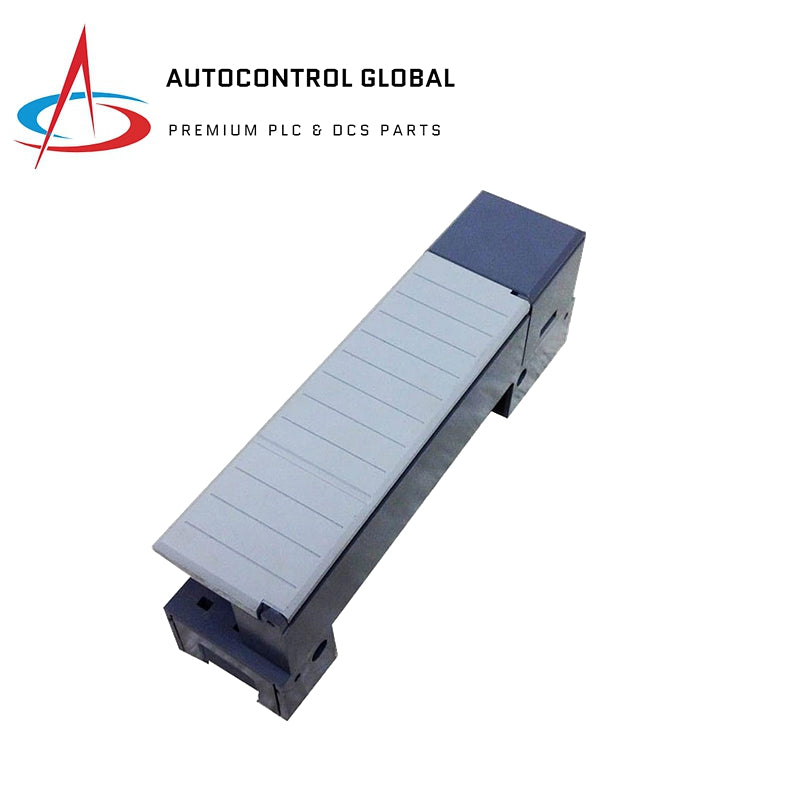

1746-N2 | Allen-Bradley SLC 500 | Slot Filler

Overview

The 1746-N2 is an Allen-Bradley SLC 500 Slot Filler designed to protect unused I/O slots in the chassis from debris and dust. It ensures the integrity of the backplane and prevents defects.

Key Specifications

• Model: 1746-N2
• Hardware Type: Slot Filler
• Voltage Range: 10-30 VDC
• Inputs: 8
• Backplane Current (5VDC): 50 mA
• Signal Delay: 8 ms
• Off-State Current: 1 mA

Environmental Ratings

• Operating Temperature: -25°C to 60°C
• Nonoperating Temperature: -40°C to 85°C
• Humidity: 5% to 95% non-condensing
• Operating Vibration: 2 g at 10-500 Hz
• Operating and Nonoperating Shock: 30 g

Certifications

• Compliance: EN 61131-2, Directive 73/23/EEC (Low Voltage Directive)
• Location: Suitable for Class I, Division 2, Groups A, B, C, D and non-hazardous locations

Dimensions and Weight

• Dimensions: 12.7 x 7.62 x 20.32 cm (5 x 3 x 8 in)
• Weight: 0.045 kg
