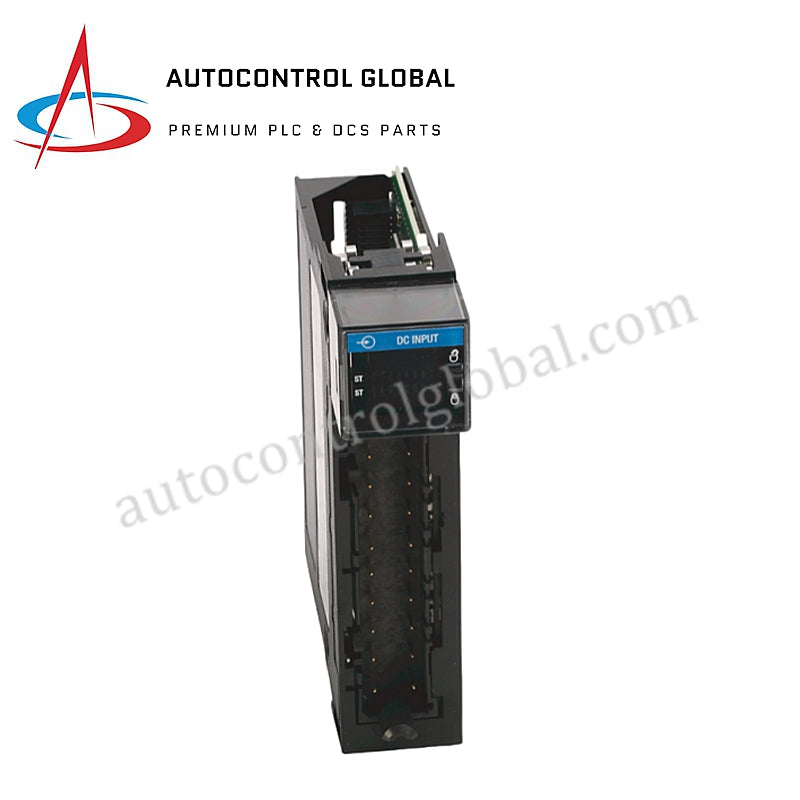

1756-IB16 Allen-Bradley Controllogix Discrete Input Module
Manufacturer: Allen Bradley
-
Part Number: 1756-IB16
Condition：New with Original Package
Product Type: Discrete Input Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The 1756-IB16 is a ControlLogix Discrete Input Module from Allen-Bradley with 16 digital DC input points. It supports a voltage range of 10-31.2 VDC and offers fast input processing with selectable filter options for input delay times.
Module Details
-
Manufacturer: Rockwell Automation
-
Brand: Allen-Bradley
-
Model: 1756-IB16
-
Series: ControlLogix
-
Module Type: Digital DC Input Module
-
Inputs: 16
Electrical Characteristics
-
Operating Voltage Range: 10-31.2 VDC
-
Input Voltage: 12-24 VDC Sink
-
Maximum Operating Current: 10 mA at 31.2 VDC
-
Minimum Operating Current: 2 mA at 10 VDC
-
Maximum Input Current (Off-State): 1.5 mA
Input Delay Time
-
OFF to ON:
-
Hardware delay: 290 µs nom/1 ms max
-
Plus filter time (user-selectable)
-
ON to OFF:
-
Hardware delay: 700 µs nom/2 ms max
-
Plus filter time (user-selectable)
Thermal Performance
-
Power Dissipation (Max): 5.1 W @ 60°C (140°F)
-
Thermal Dissipation: 21.1 BTU/hr @ 60°C (140°F)
Backplane and Connections
-
Backplane Current:
-
24 VDC: 2 mA
-
5.1 VDC: 120 mA
