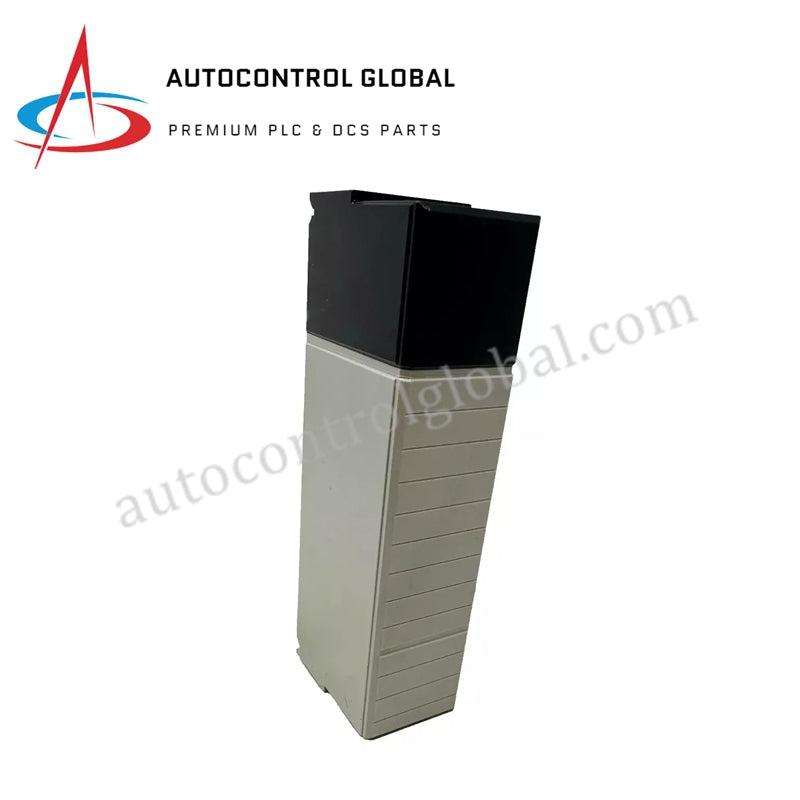

1756-N2 | Allen-Bradley Slot Filler Module

Description

The 1756-N2 Slot Filler Module from Allen-Bradley is designed for use with the ControlLogix series, ensuring proper system operation when an empty slot needs to be filled in the chassis. It helps maintain the integrity of the system while offering seamless integration into the ControlLogix platform.

Key Features

• Function: Slot Filler

• Communications: RS-232, RS-422, RS-485

• Number of Slots Protected: Single slot

• Backplane Current:

• 5V: 800 mA

• 24V: 3 mA

• Current Draw: None

• Power Dissipation: 6.2 Watts

• Status LED Indicators: None

• SERCOS Data Rate: 4 or 8 Megabits per second

• Removable and Insertion Under Power: Yes

Electrical & Environmental

• Current Draw (5.1V): 1.2 A

• Operating Temperature Range: 0°C to 60°C (32°F to 140°F)

• Storage Temperature Range: -25°C to +60°C (-13°F to +140°F)
