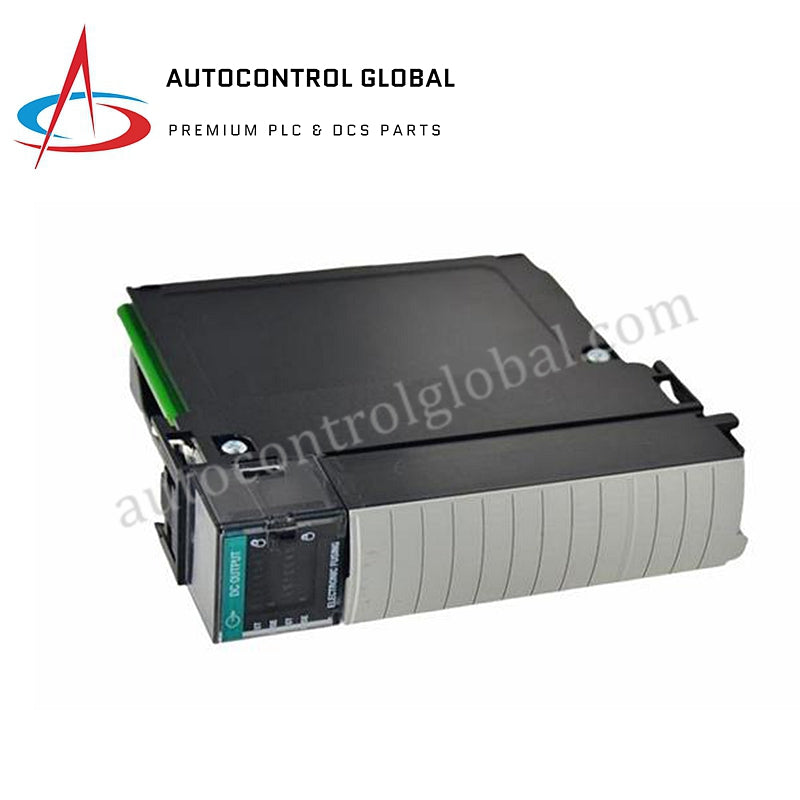

1756-OB16E | Allen-Bradley | ControlLogix Discrete Output Module
Manufacturer: Allen Bradley
-
Part Number: 1756-OB16E
Condition：New with Original Package
Product Type: Discrete Output Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Description
The 1756-OB16E is a ControlLogix Discrete Output Module by Allen-Bradley, designed for industrial automation systems. It provides sixteen digital DC outputs with a nominal voltage of 24VDC and is suitable for controlling various types of field devices.
Specifications
-
Manufacturer: Rockwell Automation
-
Brand: Allen-Bradley
-
Model: 1756-OB16E
-
Module Type: Digital DC Output Module
-
Series: ControlLogix
-
Output Voltage Range: 10-31.2 VDC
-
Nominal Output Voltage: 24VDC
-
Outputs: 16 Points
-
Output Delay Time:
-
OFF to ON: 70 µs nominal / 1 ms max
-
ON to OFF: 360 µs nominal / 1 ms max
-
Slot Width: 1
-
Module Keying: Electronic
-
RTB Keying: User-defined mechanical
Power & Thermal Dissipation
-
Power Dissipation (Max): 4.1 W @ 60°C (140°F)
-
Backplane Current at 24 Volts: 2 milliamperes
-
Backplane Current at 5.1 Volts: 250 milliamperes
-
Thermal Dissipation: 13.98 BTU/hr @ 60°C (140°F)
Additional Information
-
Removable Terminal Block(s): 1756-TBNH; 1756-TBSH
-
Output Type: Electronically Fused
-
Voltage: 12-24 Volts DC
