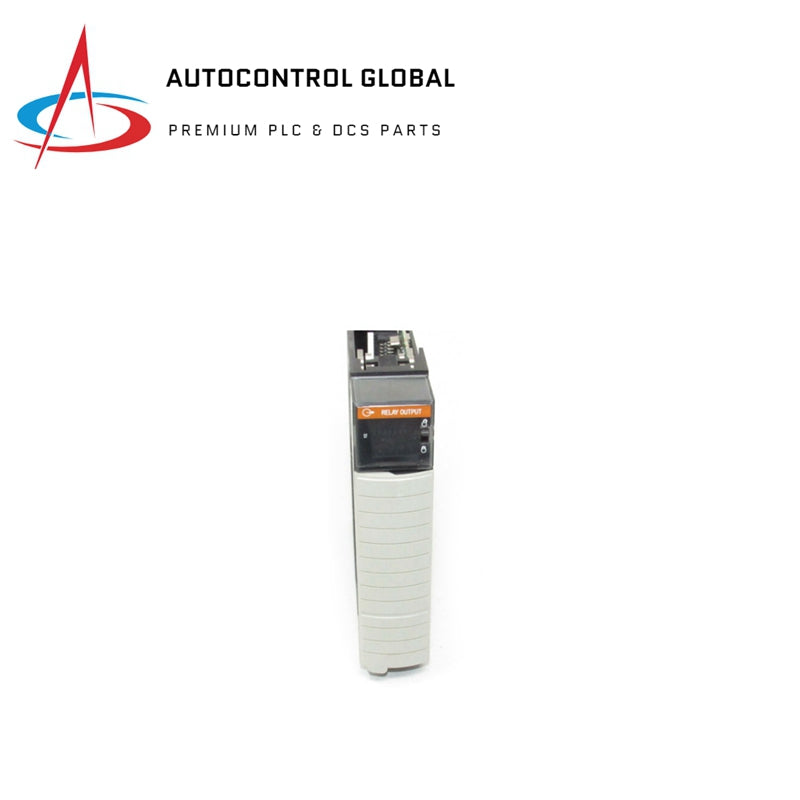

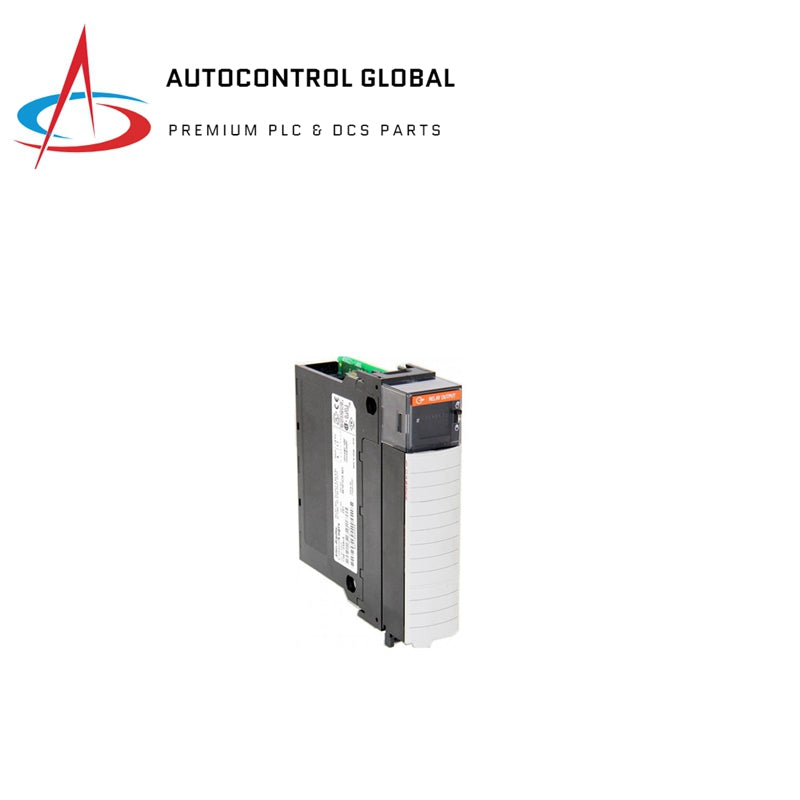

1756-OX8I | Allen Bradley | Isolated Contact Module

Key Specifications

• Voltage Type: DC
• Digital Output Type: Relay
• Connection Type: Screw connection
• Backplane Power: 2.9 W
• Thermal Dissipation: 10.57 BTU/h
• Current Draw: 100 mA @ 5.1V, 100 mA @ 24V
• Outputs:
  • 8 Normally Open (N.O.)
  • 8 Normally Closed (N.C.)
  • Individually isolated (two points per group)
• Contact Current Rating:
  • 1 A @ 5…30V DC
  • 0.5 A @ 48V DC
  • 0.22 A @ 125V DC
  • 1.5 A @ 120V AC, 50/60 Hz
  • 0.75 A @ 240V AC, 50/60 Hz
• Isolation Voltage: 250V (continuous), basic insulation type, outputs-to-backplane, and output-to-output
• Wire Category: 1
• Switching Frequency: Max 1 operation/3 s (0.3 Hz at rated load)
• Operating Temperature: 0 to 60 °C
