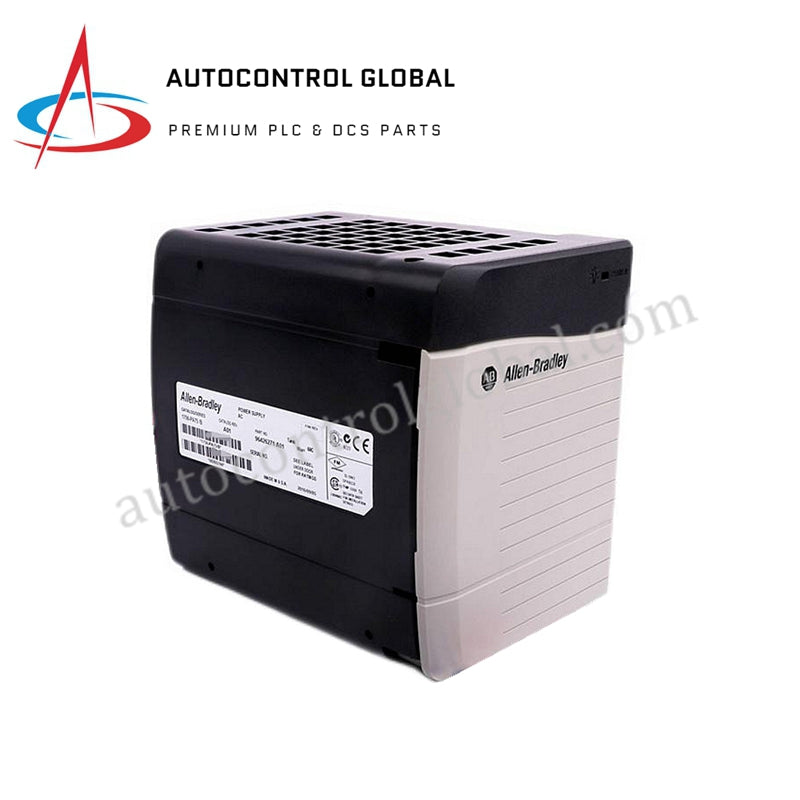

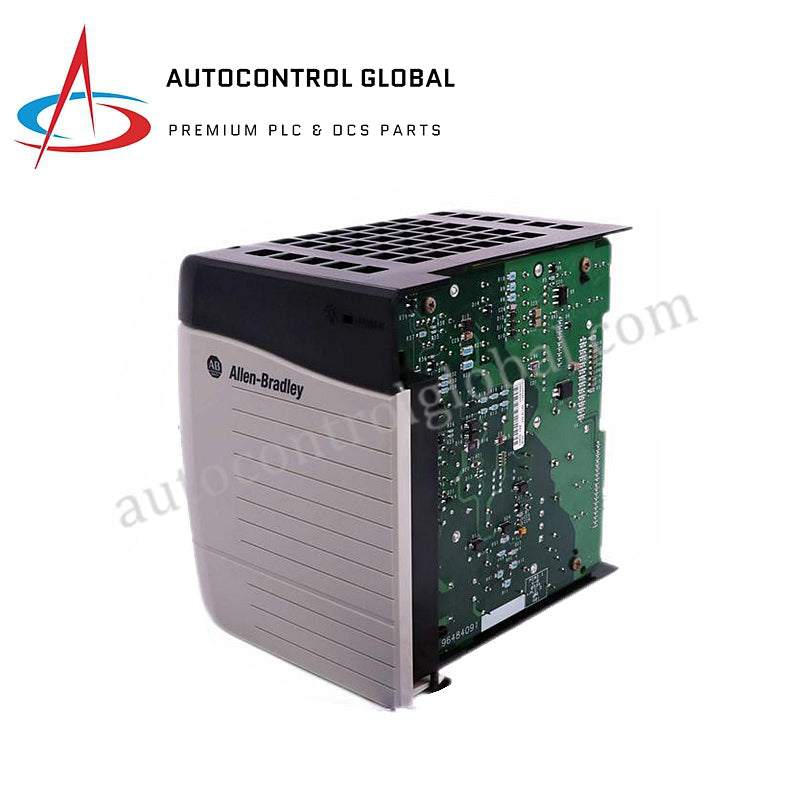

1756-PA75 | Allen-Bradley Power Supply

Description

The 1756-PA75 is a standard DC power supply by Allen-Bradley, designed for use with the ControlLogix series. It provides reliable power to the system with a wide input voltage range.

Specifications

• Manufacturer: Rockwell Automation

• Product No.: 1756-PA75

• Module Type: Standard DC Power Supply

• Series: ControlLogix

• Weight: 0.95 kg (2.10 lb)

• Dimensions: 14.0 x 11.2 x 14.5 cm (5.51 x 4.41 x 5.71 in.)

• Input Voltage: 120/240VAC

• Input Voltage Range: 85-265VAC

• Input Power: 100 Watts

• Input Frequency: 47-63 Hz

Current Capacity

• 4A at 3.3VDC

• 13A at 5.1VDC

• 2.8A at 24VDC

Features

• Isolation Voltage: 250 Volts Continuous

• Max Inrush Current: 30 Amperes

• Hold Up Time:

• 2 cycles @ 85V AC, 60 Hz

• 6 cycles @ 120V AC, 60 Hz

• 20 cycles @ 220V AC, 60 Hz

Chassis Compatibility

• Compatible with 1756-A4/A, 1756-A7/A, 1756-A10/A, 1756-A13/A, 1756-A17/A, 1756-A4/B, 1756-A7/B, 1756-A10/B, 1756-A13/B, 1756-A17/B, 1756-A4/C, 1756-A7/C, 1756-A10/C, 1756-A13/C, 1756-A17/C

Location

• Installed in the 1756 Chassis Left Side
