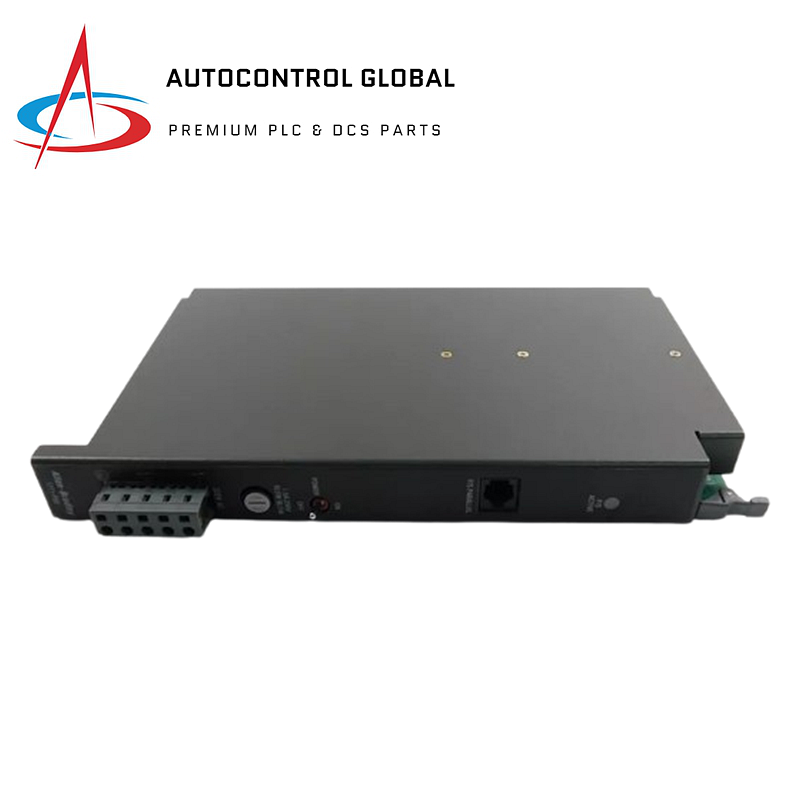

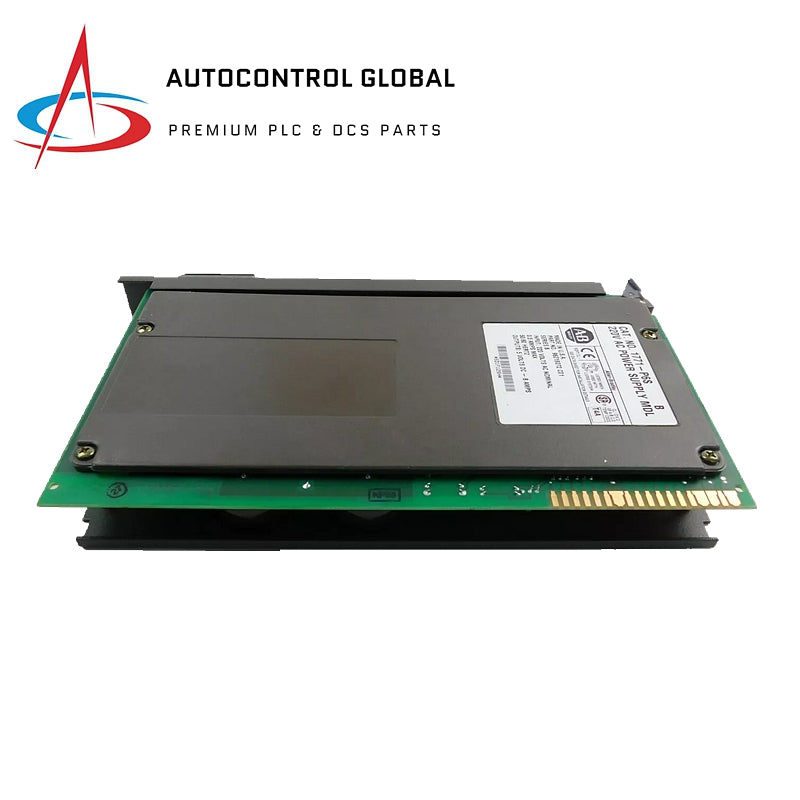

1771-P6S B | Allen-Bradley Rockwell Power Supply

Description

• Manufacturer: Rockwell Automation
• Part Number: 1771-P6S B
• Product Type: Power Supply
• Brand: Allen-Bradley
• Series: PLC 5

Specifications

• Nominal Input Voltage: 220 V AC
• Input Voltage Range: 194-264 V AC
• Maximum Real Input Power: 56 W
• Maximum Apparent Input Power: 89 VA
• Maximum Transformer Load: 140 VA
• Backplane Output Current: 8 A (at 5 V DC)
• Frequency: 47-63 Hz
• Fuse: 1.5 A, 250 V, slow-blow
• Cabling: 1771-CT
• Location: 1771 Chassis, 1 Slot
• Dimensions: 1 Chassis Slot

Configuration & Paralleling

• Paralleled: Compatible with -P6S, -LWP, -LZP, -LXP for parallel use
• Jumpers: Configure for remote or local sensing at the back panel

Shutdown Features

• Low Voltage Shutdown: Generates a shutdown signal if the AC line voltage falls below the minimum threshold, only lifted once the voltage returns above the limit

Installation & Operation

• Chassis Mounting: Installed on the I/O chassis side plate
• Auxiliary Power Supply: Provides auxiliary power in PLC 5 systems
• Termination: Ships with a 5-position terminal block
