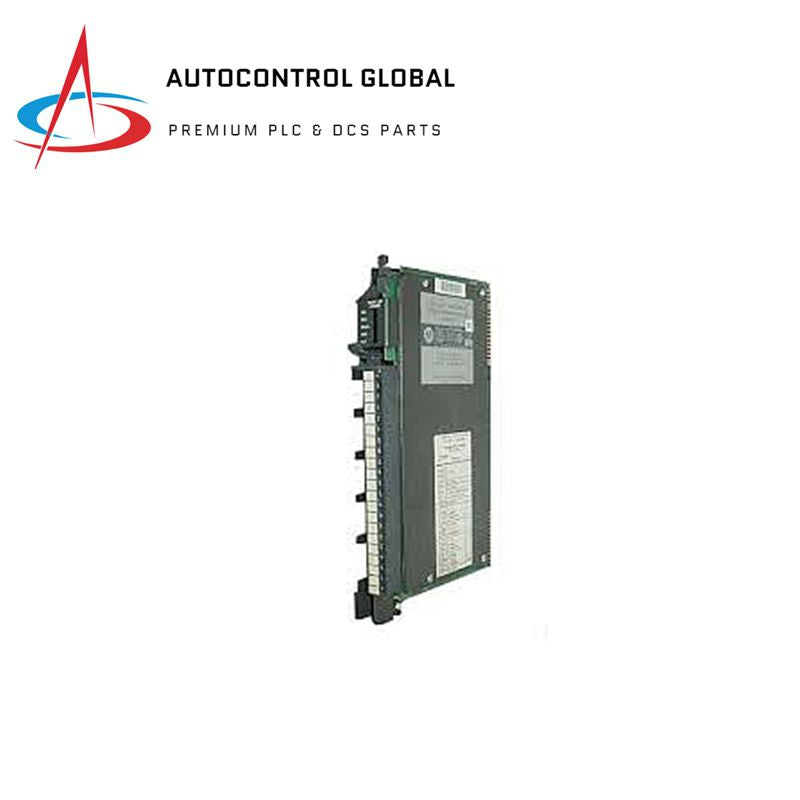

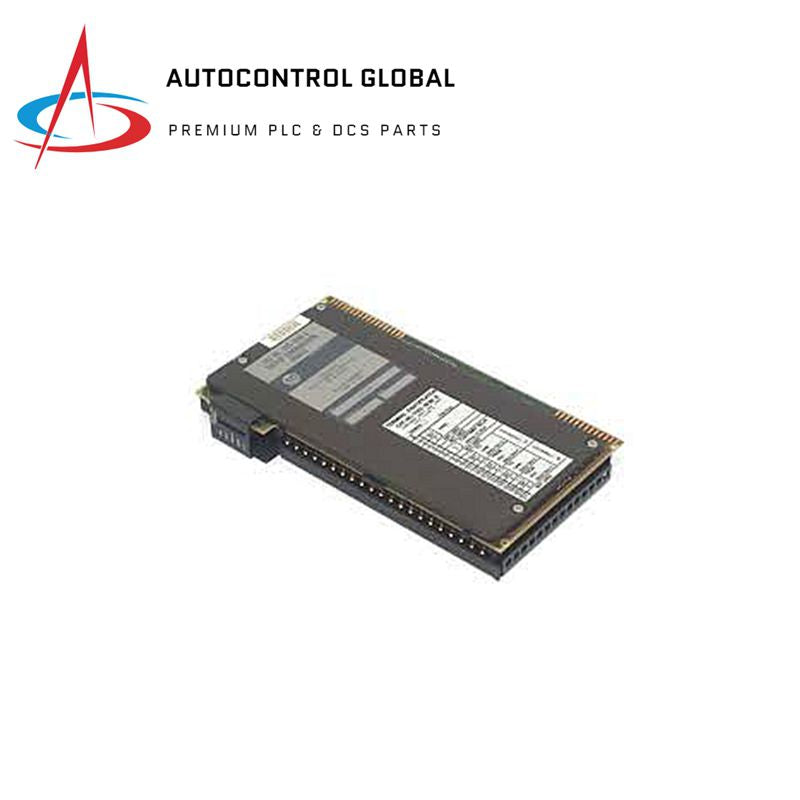

1785-BCM | Allen-Bradley | PLC-5 Backup Communication Module
Manufacturer: Allen Bradley
-
Part Number: 1785-BCM
Condition：New with Original Package
Product Type: Communication Module
-
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
Specifications
- Manufacturer: Allen-Bradley
- Product No.: 1785-BCM
- Product Type: PLC-5 Backup Communication Module
- Compatibility: The 1785-BCM series B backup module is compatible with the 1785-BCM series A backup module when you properly configure switch assembly SW1 and switch assembly SW2 of the series B module.
- Determining Power Supply Requirements: The logic circuit of the 1785-BCM module is driven by a power supply through the backplane of the I/O chassis.
- Connecting Your PLC-5 Backup System: Connect the 1785-BCM modules, make remote I/O connections, make Data Highway Plus network connections.
- Compatible Processors: PLC-5/15 series B, -5/20, -5/25, -5/30, -5/40, and -5/60 processors.
- Module Location: 1771 I/O Chassis (local).
- Backplane Current: 1.0A @ 5V dc.
- Keying Locations: between 8 and 10, between 34 and 36.
- Wiring Arm: 1771-WG.
- Customer Relay: .25A @ 24V dc (resistive).
- HSSL: communicates with 1.2 Megabaud.
- Certification: UL – Industrial Control Equipment, E65584 CSA – Class 1, Division 2, LR69960C.
