1SAP240100R0001 | DC532 ABB Digital Input/Output Module In Stock

Product Review

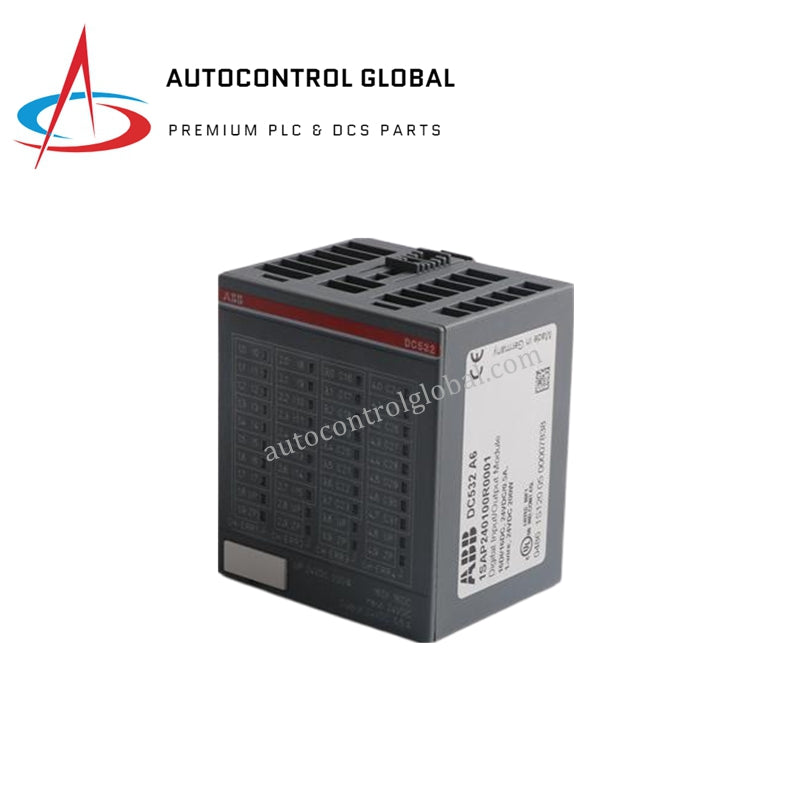

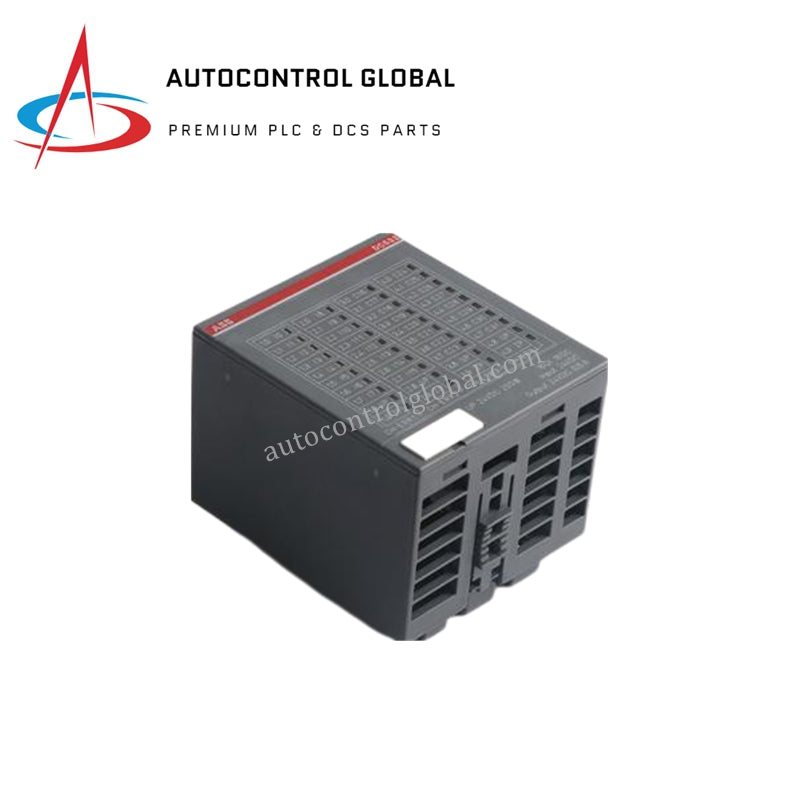

The ABB DC532 is a digital input/output module designed for use within the AC500 PLC family, offering 16 digital inputs and 16 digital outputs. It supports 24VDC signals for both inputs and outputs, with each output capable of driving up to 0.5A. The module integrates seamlessly into the AC500-eCo system, which features easy programming via CoDeSys and allows for downloading user programs through an SD card without additional tools. This makes it ideal for industrial automation applications where simplicity and flexibility are required.

Specification

• Extended Product Type: DC532
• Product ID: 1SAP240100R0001
• ABB Type Designation: DC532
• EAN: 4016779649162
• Catalog Description: S500, Digital I/O Module, 16DI/16DC, 24VDC
• Digital Inputs (DI): 16 channels, 24VDC
• Digital Outputs (DO): 16 channels, 24VDC, 0.5A per channel
• Wiring Configuration: 1/2-wire
• Compatibility: Fully compatible with AC500 PLC family
• Programming Environment: CoDeSys, SD card download support

Features

• High Channel Count: Provides 16 digital inputs and 16 digital outputs in a single module, making it suitable for complex control systems.
• Flexible Power Options: Supports 24VDC for both input and output operations, ensuring compatibility with a wide range of devices and sensors.
• Robust Output Current: Each output can handle up to 0.5A, allowing for direct control of relays, solenoids, and other actuators.
• Easy Integration: Seamlessly integrates into the AC500 PLC family, supporting central or decentralized expansion options.
• User-Friendly Programming: Utilizes the CoDeSys environment, simplifying network configuration and program development.
• Convenient Program Transfer: User programs can be easily transferred using an SD card, eliminating the need for specialized programming hardware.
