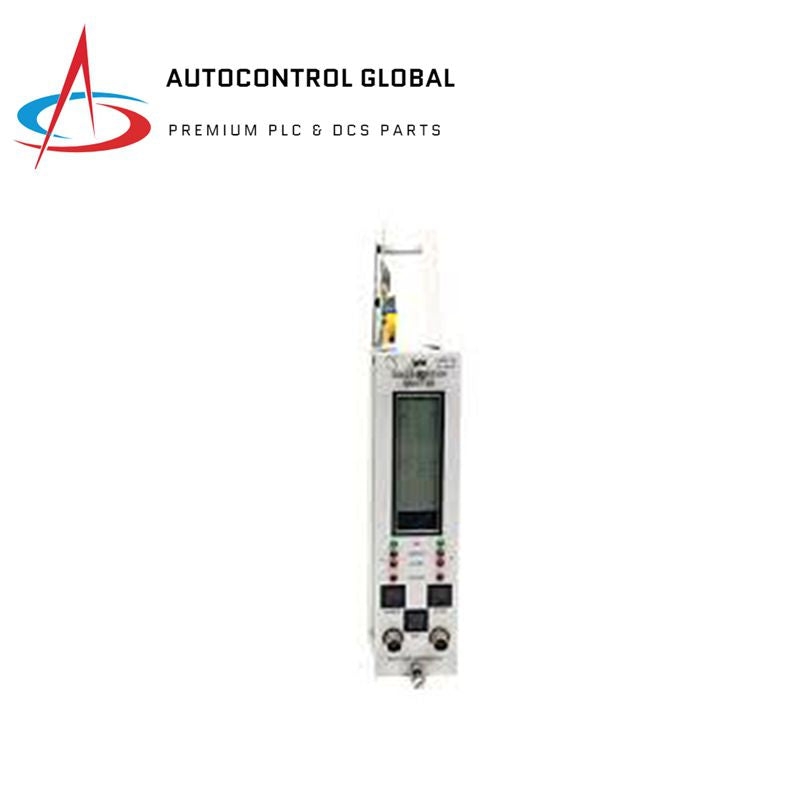

3300/55-03-04-14-14-00-00-04-00 Bently Nevada Vibration Transducer

Description

The Bently Nevada 3300/55-03-04-14-14-00-00-04-00 is a high-temperature proximity transducer system designed for monitoring machinery in harsh environments. It is part of the 3300 XL Proximitor Sensor series, which offers advanced performance and reliability.

Features

• High-Temperature Operation: Capable of operating in temperatures ranging from -52°C to +100°C (-62°F to +212°F).
• Humidity Resistance: Less than a 3% change in Average Scale Factor (ASF) when tested in 93% humidity.
• API 670 Compliance: Fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability.
• Mounting Options: Can be mounted in high-density DIN-rail installations or traditional panel mount configurations.
• Long Service Life: Designed for long-term use with minimal maintenance requirements.

Technical Specifications

• Operating Temperature: -52°C to +100°C (-62°F to +212°F)
• Storage Temperature: -52°C to +105°C (-62°F to +221°F)
• Relative Humidity: Less than a 3% change in ASF when tested in 93% humidity
• Power Supply:
  • 95 to 125 Vac, single phase, 50 to 60 Hz, at 1.0 A maximum
  • 190 to 250 Vac, single phase, 50 to 60 Hz, at 0.5 A maximum
• Peak Current: 26 A peak, or 12 A rms, for one cycle
