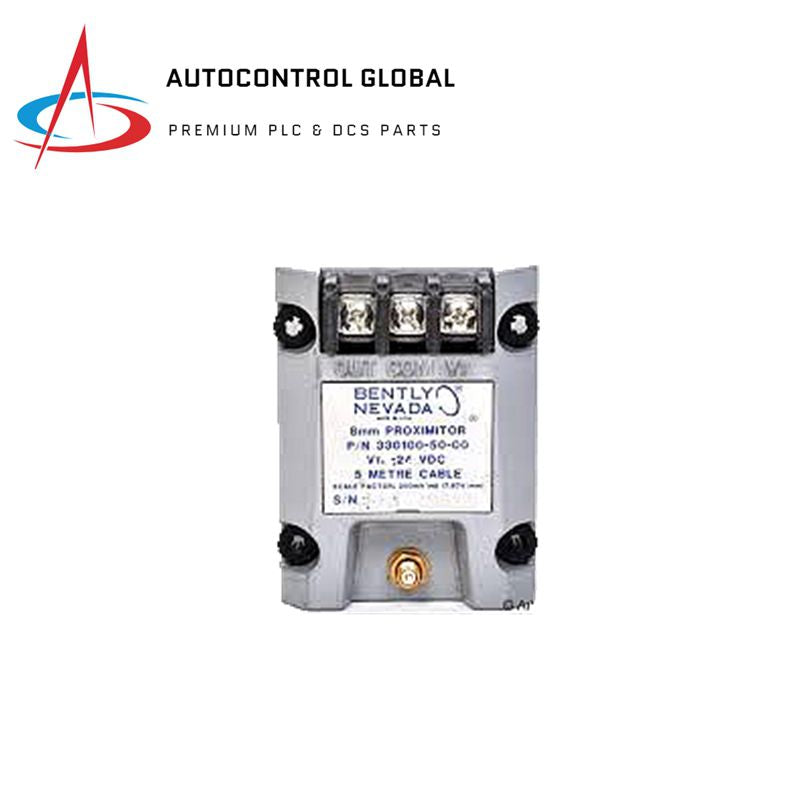

330100-50-01 | Bently Nevada | Proximitor Probe

Description

The Bently Nevada 330100-50-01 is a high-temperature proximity probe designed for monitoring the position of rotating machinery components. It is part of the 3300 Proximity Transducer System, commonly used in industries such as gas turbines and steam turbines.

Features

• High-Temperature Capability: Rated for temperatures up to +350°C (662°F)
• Material: Made from A383 aluminum
• Operating Temperature Range: -51°C to +100°C (-60°F to +212°F)
• Shipping Weight: 1.5 kg
• Connector and Cable-Type: Miniature Coaxial ClickLoc Connector, Standard Cable

Technical Specifications

• Total Length: 5.0 meters (16.4 feet)
• Unthreaded Length: 0.0 inches
• Overall Case Length: 5 inches
• Agency Approval: Multiple approvals
• Nominal Probe DC Resistance: Specific to the 3300 XL 8 mm Proximitor Sensor
• Power Supply: -24 Vdc
• Load: 10 kΩ
• Target Material: AISI 4140 steel
• Probe Gapping: 1.27 mm (50 mils)
