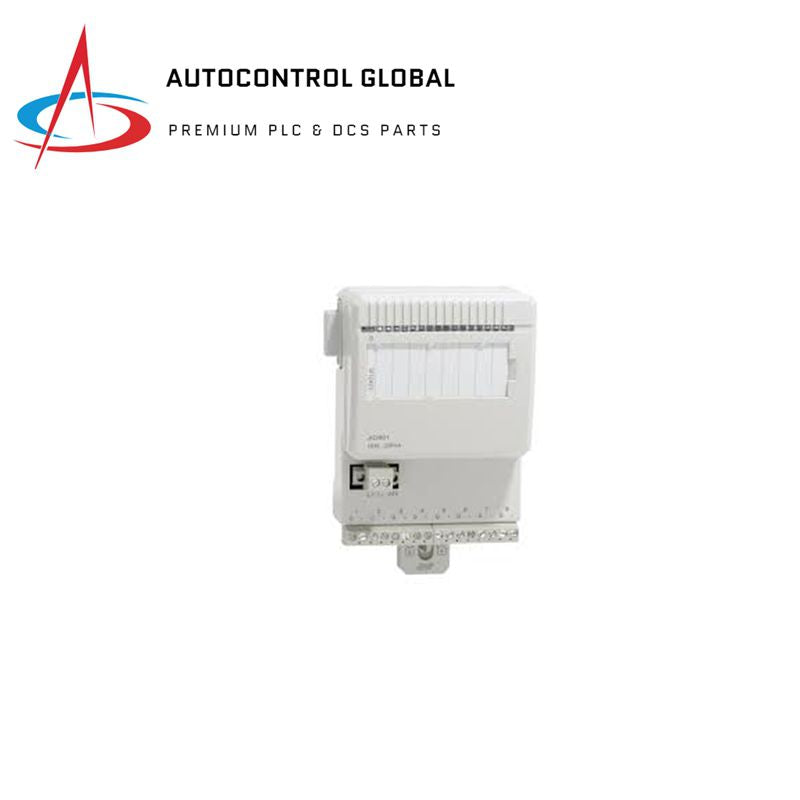

3BSE020514R1 ABB AO801 Analog Output Module

General Information

• Article Number: 3BSE020514R1
• Type: Analog Output
• Signal Specification: 0...20 mA, 4...20 mA
• Number of Channels: 8
• Signal Type: Unipolar single ended
• HART: No
• SOE: No
• Redundancy: No
• High Integrity: No
• Intrinsic Safety: No
• Mechanics: S800L

Detailed Data

• Resolution: 12 bit
• Isolation: Groupwise isolated from ground
• Under/Over Range: - / +15%
• Output Load: Max 850 Ω
• Error: 0.1%
• Temperature Drift: Typ 30 ppm/°C, Max 50 ppm/°C
• Rise Time: 10 µs
• Update Cycle Time: 1 ms
• Current Limiting: Short circuit proof current limited output
• Maximum Field Cable Length: 600 meters (656 yards)
• Rated Insulation Voltage: 50 V
• Dielectric Test Voltage: 500 V a.c.
• Power Dissipation: 3.8 W
• Current Consumption +5 V Modulebus: 70 mA
• Current Consumption +24 V External: 200 mA
• Supported Wire Size:
  • Solid: 0.05-2.5 mm², 30-12 AWG
  • Stranded: 0.05-1.5 mm², 30-12 AWG
• Recommended Torque: 0.5-0.6 Nm
• Stripping Length: 6-7.5 mm, 0.24-0.30 inch

Diagnostics

• Front LEDs: S(tatus) (run or fault)
• Status Indication of Supervision: Module Error, Module Warning, Channel Error

Environment and Certification

• CE Mark: Yes
• Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
• Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
• Marine Certification: ABS, BV, DNV, LR
• Temperature, Operating: 0 to +55 °C (+32 to +131 °F), approvals are issued for +5 to +55 °C
• Temperature, Storage: -40 to +70 °C (-40 to +158 °F)
• Pollution Degree: Degree 2, IEC 60664-1
• Corrosion Protection: ISA-S71.04: G3
• Relative Humidity: 5 to 95 %, non-condensing
• Max Ambient Temperature: 55 °C (131 °F), for vertical mounting 40 °C (104 °F)
• Protection Class: IP20 according to IEC 60529
• Mechanical Operating Conditions: IEC/EN 61131-2
• EMC: EN 61000-6-4 and EN 61000-6-2
• Overvoltage Categories: IEC/EN 60664-1, EN 50178
• Equipment Class: Class I according to IEC 61140; (earth protected)
• RoHS Compliance: DIRECTIVE/2011/65/EU (EN 50581:2012)
• WEEE Compliance: DIRECTIVE/2012/19/EU

Dimensions

• Width: 86.1 mm (3.4”)
• Depth: 58.5 mm (2.3”)
• Height: 110 mm (4.33”)
• Weight: 0.24 kg (0.53 lbs)
