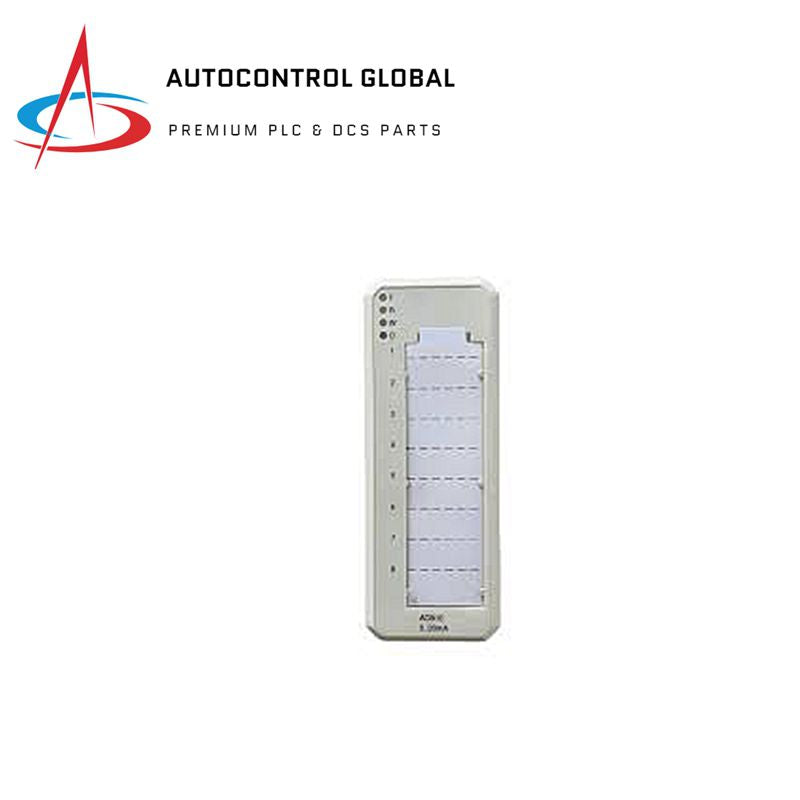

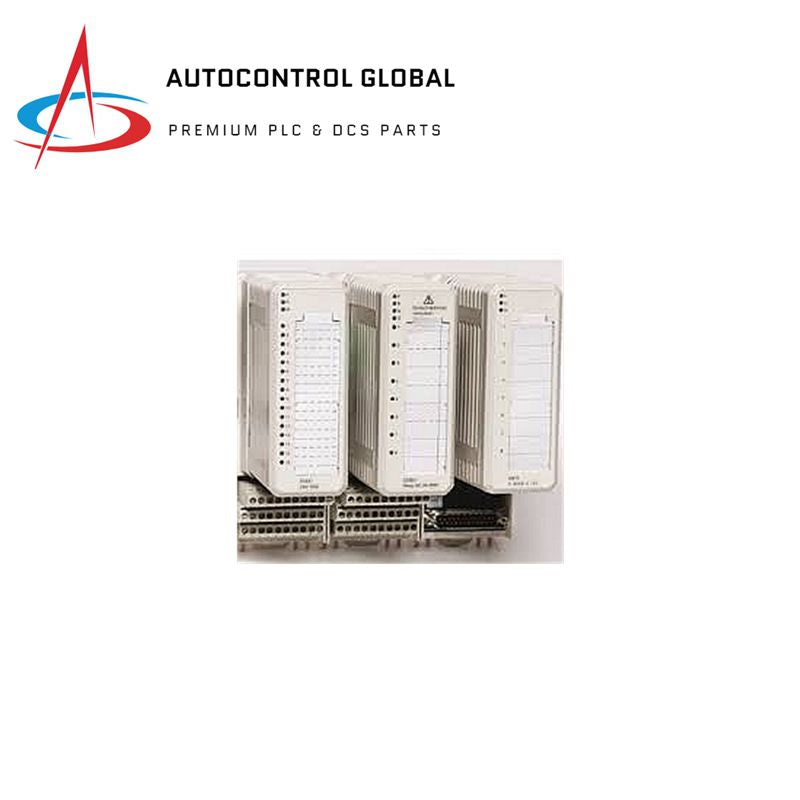

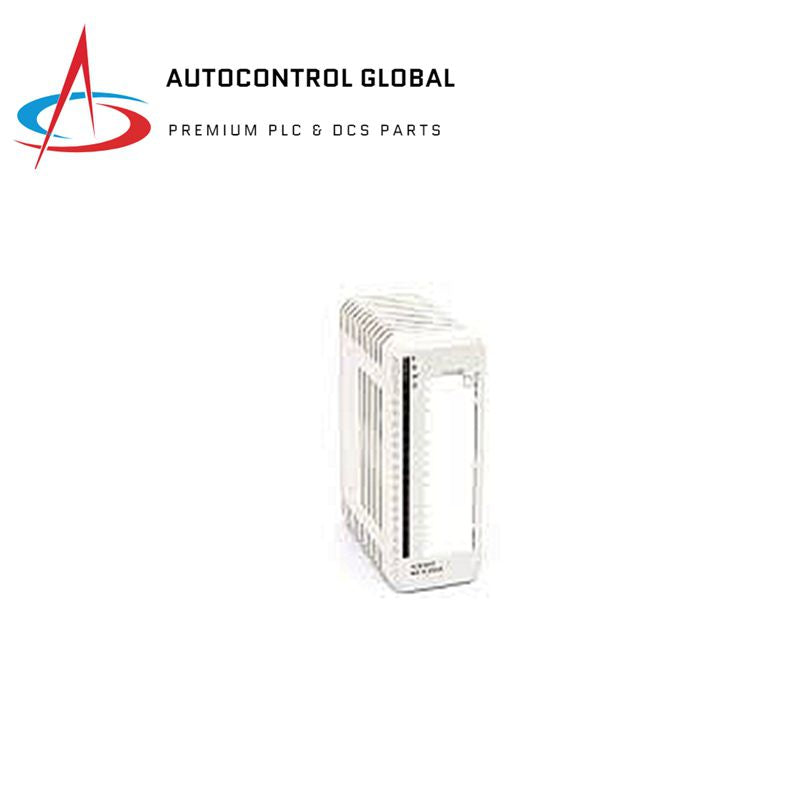

3BSE038415R1 ABB AO810 Analog Output Module

Description:

The ABB AO810 is an analog output module designed for the S800 I/O system. It features 8 unipolar analog output channels and is used for various industrial automation applications.

Features:

• 8 unipolar analog output channels
• Output signal range: 0…20 mA, 4…20 mA
• Open circuit diagnostics for error detection
• Self-diagnostic capabilities for reliable operation
• Short circuit protection to ZP or +24 V
• Compatible with MTUs: TU810V1, TU812V1, TU814V1, TU830V1, TU833

Technical Specifications:

• Product ID: 3BSE038415R1
• Type Designation: AO810
• Number of Channels: 8
• Signal Specification: 0…20 mA, 4…20 mA
• HART: No
• SOE: No
• Redundancy: No
• High Integrity: No
• Intrinsic Safety: No
• Net Depth: 160 mm
• Net Height: 226 mm
• Net Width: 210 mm
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
• HS Code: 85177000
