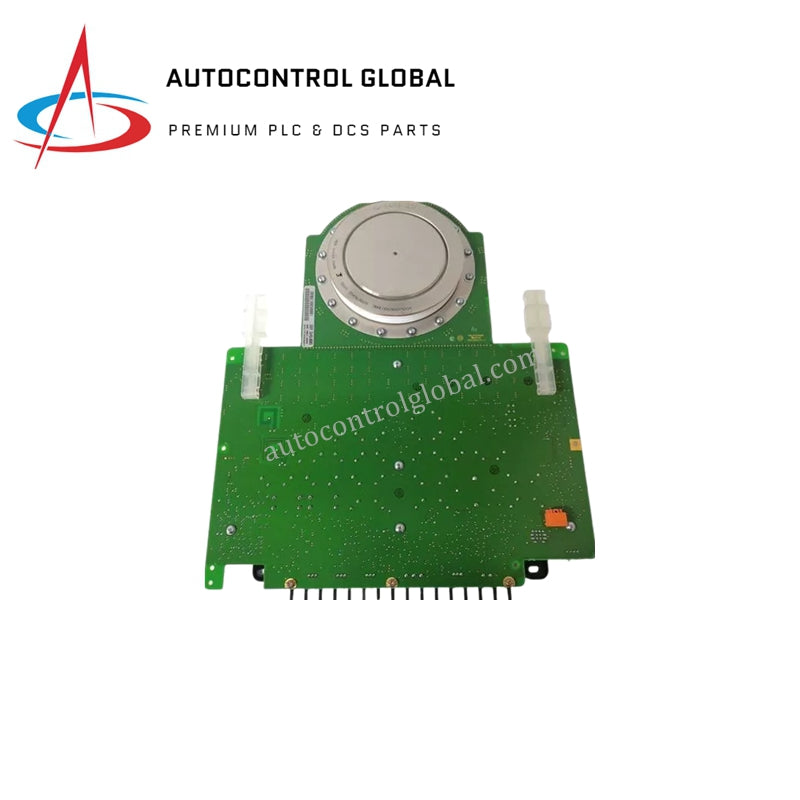

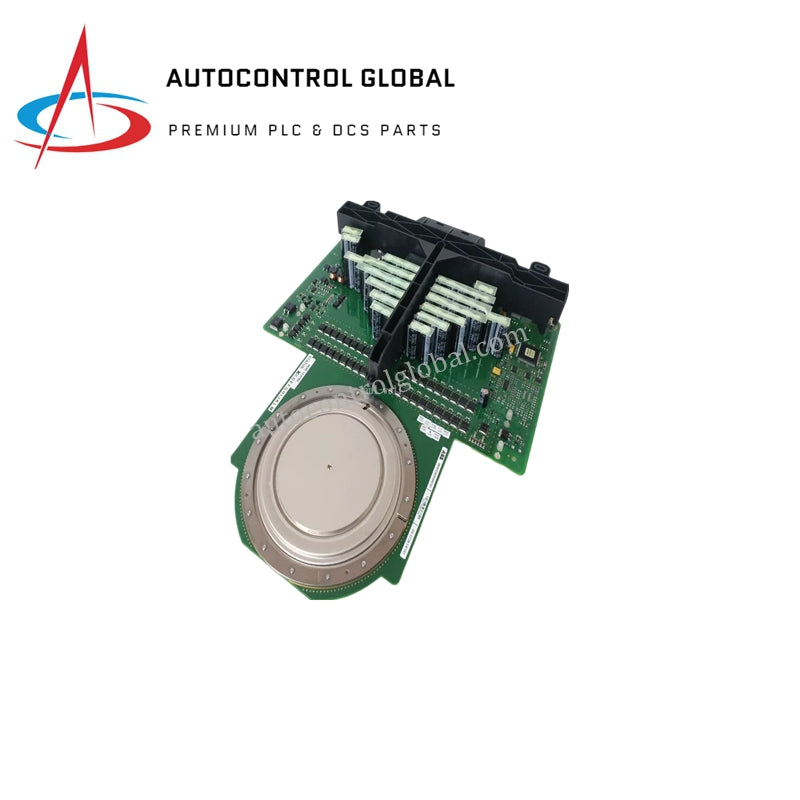

5SHY4045L0006 3BHB030310R0001 IGCT Module In Stock

Product Review

The ABB Commutated Thyristor 5SHY4045L0006, also identified by the part number 3BHB030310R0001, is a specialized IGCT (Integrated Gate-Commutated Thyristor) module designed for high-performance applications. This component is used within the ACS 6000 series, which includes an Active Rectifier Unit (ARU) that employs self-commutated, 6-pulse, 3-level voltage source inverter technology

Specification

• Model Number: 5SHY4045L0006 / 3BHB030310R0001
• Technology: IGCT (Integrated Gate-Commutated Thyristor)
• Application: Power exciter control module for ACS 6000 Active Rectifier Unit (ARU)
• Design: Self-commutated, 6-pulse, 3-level voltage source inverter
• Turn-off Rating: High snubberless turn-off rating
• Frequency Range: Optimized for medium frequency (<1 kHz)
• Temperature Range: Wide operating temperature range
• Reliability: High reliability under demanding conditions
• Electromagnetic Immunity: High electromagnetic immunity to ensure stable operation in electrically noisy environments
• Control Interface: Simple interface with status feedback for AC or DC supply voltages

Features

• Advanced IGCT Technology: Utilizes cutting-edge IGCT technology to provide efficient power conversion and management.
• High Loadability: Designed for maximum load capacity with reduced complexity through fewer components.
• Wide Operating Conditions: Capable of performing reliably across a wide range of temperatures and frequencies.
• Snubberless Design: Eliminates the need for snubber circuits, reducing cost and increasing reliability.
• Robust Control System: Equipped with a straightforward control interface that provides status feedback, making it easy to monitor and manage the system.
• Versatile Supply Voltage: Compatible with both AC and DC supply voltages, enhancing flexibility in various application scenarios.
• Superior Electromagnetic Performance: Offers high immunity to electromagnetic interference, ensuring consistent performance even in challenging electrical environments
