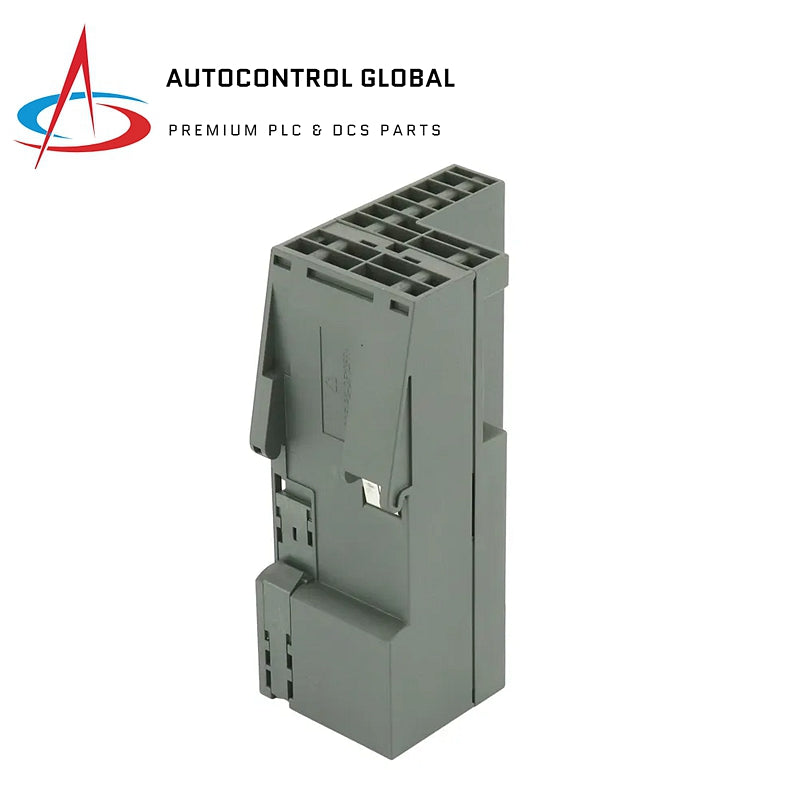

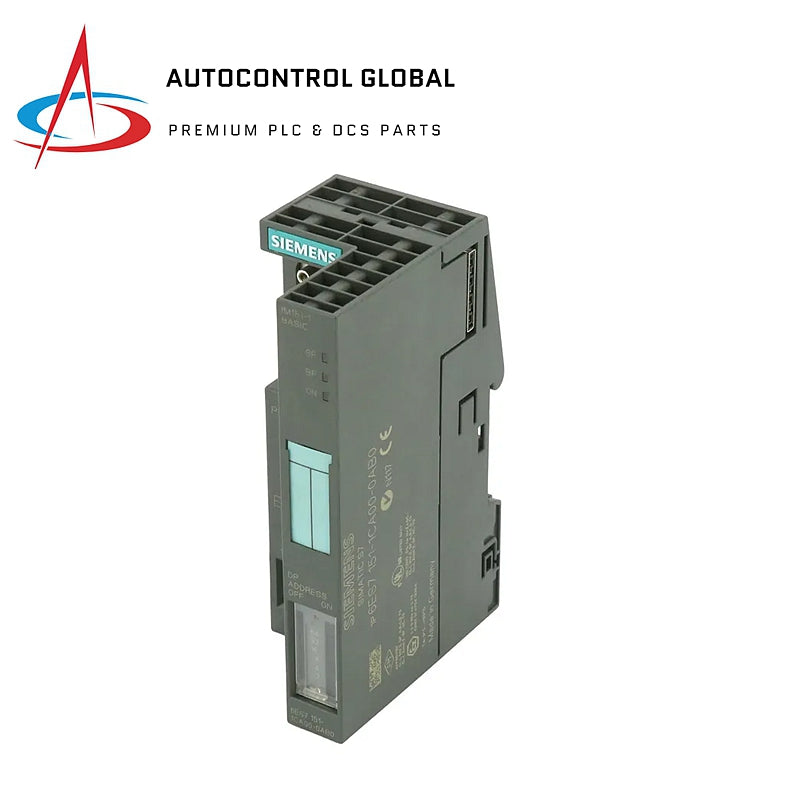

6ES7151-1CA00-0AB0 | Siemens | SIMATIC DP Interface Module

Description

The 6ES7151-1CA00-0AB0 is a Siemens SIMATIC DP Interface Module, designed for the ET200S system. It provides a high-speed data transfer rate of up to 12 Mbit/s, and supports up to 12 power, electrical, or motor starter modules (excluding F-modules). The module features bus interfacing via a 9-pin SUB-D connector and includes a terminating module.

Key Specifications

• Model: 6ES7151-1CA00-0AB0
• Vendor ID: 80F3h
• Supply Voltage: 24 V DC
• Power Loss: 1.5 W (typical)
• Input Current: Max. 70 mA
• Transmission Rate: Up to 12 Mbit/s, with selectable rates
  • 9.6 / 19.2 / 45.45 / 93.75 / 187.5 / 500 kbit/s
  • 1.5 / 3 / 6 / 12 Mbit/s
• Max. Output Current: 80 mA
• Interfaces:
  • RS485 (9-pin SUB-D)
  • PROFIBUS DP
• Protocols Supported:
  • PROFIBUS DP
  • No support for PROFINET IO or TCP/IP

Diagnostics & Indicators

• Diagnostic Functions: Yes
• LED Indicators:
  • Bus fault (BF) – Red
  • Group error (SF) – Red
  • Monitoring 24V supply (ON) – Green

Isolation & Voltage

• Isolation:
  • Electronics from PROFIBUS DP: Yes
  • Electronics from backplane bus: No
  • Supply voltage from electronics: No
• Permissible Potential Difference: 75 V DC / 60 V AC
• Isolation Test: 500 V DC

Dimensions and Weight

• Dimensions:
  • Width: 45 mm
  • Height: 119.5 mm
  • Depth: 75 mm
• Weight: Approx. 150 g
