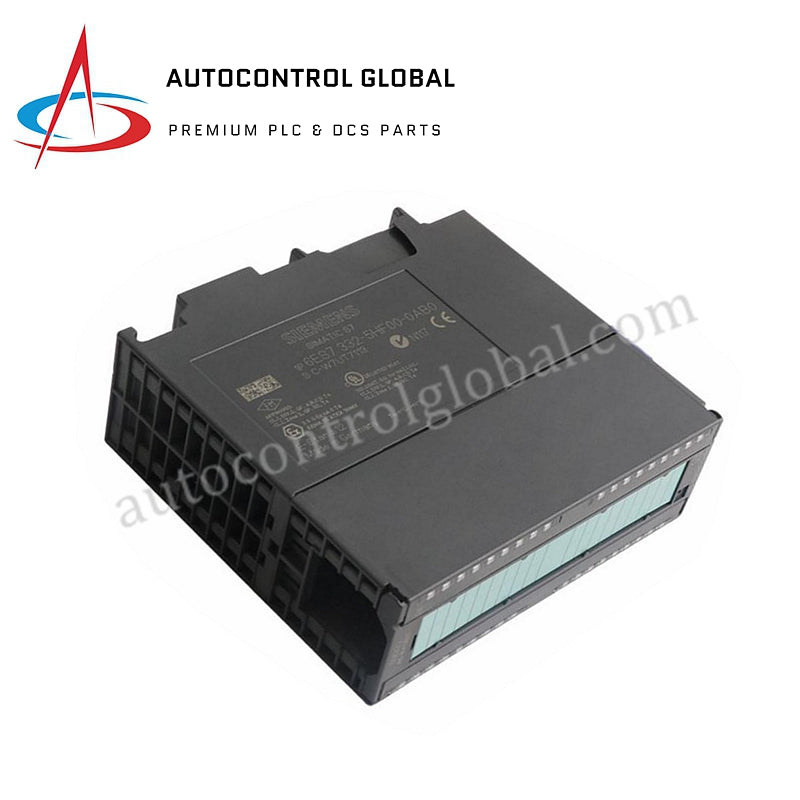

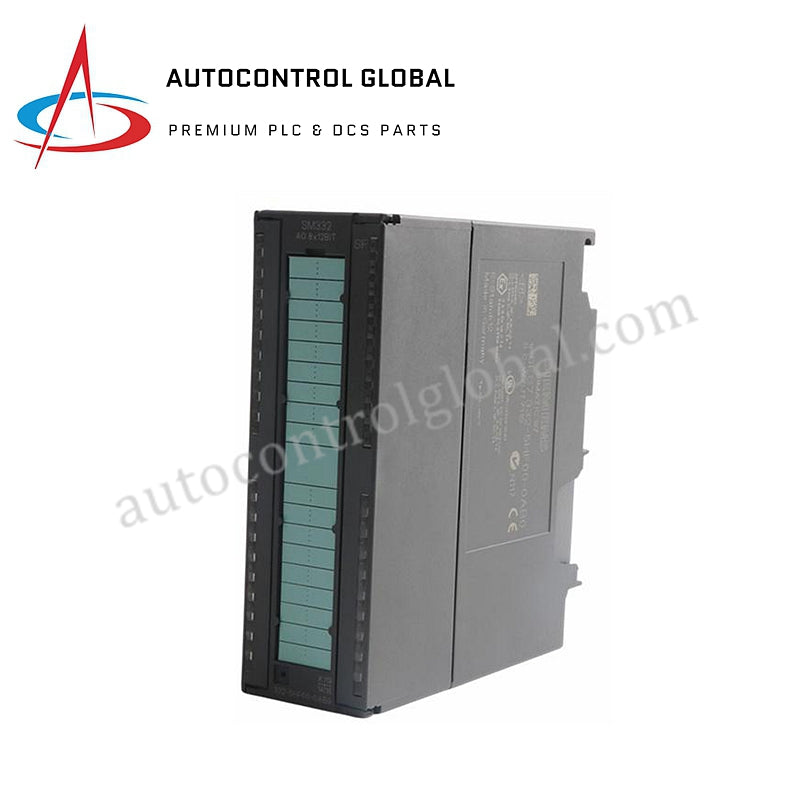

6ES7332-5HF00-0AB0 Siemens Analog Output

Description

6ES7332-5HF00-0AB0 is a Siemens Analog Output module from the SIMATIC S7-300 series, featuring 8 optically isolated analog outputs with diagnostic capabilities, offering voltage and current output ranges.

Analog Outputs

• Number of Analog Outputs: 8
• Voltage Output, Short-Circuit Protection: Yes
• Max Short-Circuit Current (Voltage Output): 25 mA
• No-Load Voltage (Current Output): Max. 18 V
• Output Ranges (Voltage):
  • 0 to 10 V: Yes
  • 1 V to 5 V: Yes
  • -10 V to +10 V: Yes
• Output Ranges (Current):
  • 0 to 20 mA: Yes
  • -20 mA to +20 mA: Yes
  • 4 mA to 20 mA: Yes
• Load Impedance (Voltage Outputs):
  • Min. 1 kΩ
  • Capacitive Load: Max. 1 µF
• Load Impedance (Current Outputs):
  • Max. 500 Ω
  • Inductive Load: Max. 10 mH
• Cable Length (Shielded): Max. 200 m

Connection Method

• Required Front Connector: 40-pin

Dimensions

• Width: 40 mm
• Height: 125 mm
• Depth: 117 mm

Weights

• Weight: 272 g
