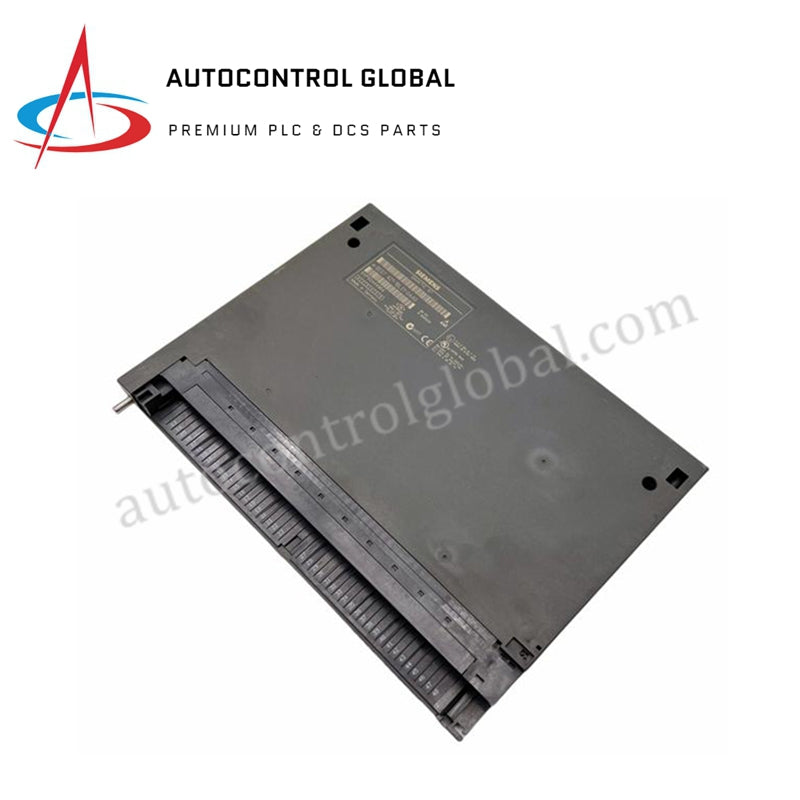

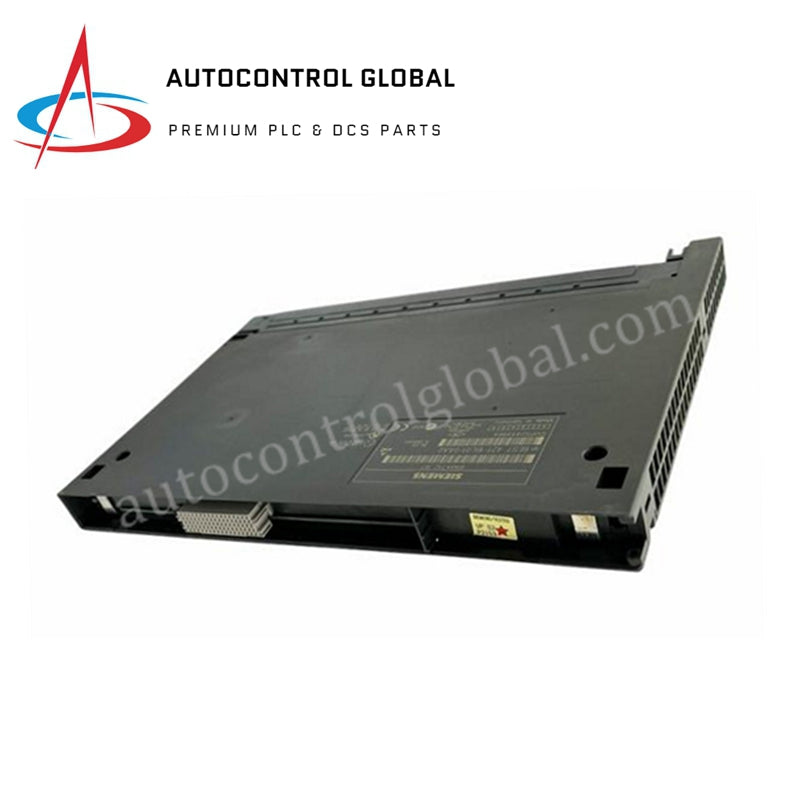

6ES7422-1BL00-0AA0 | Siemens | Digital Output Module

Overview

The Siemens Digital Output Module (6ES7422-1BL00-0AA0) is designed to efficiently handle multiple digital outputs, providing reliability in industrial automation.

Voltage and Current Specifications

• Supply Voltage:

• Rated Value: 24 V DC

• Permissible Range: 20.4 V to 28.8 V DC

• Load Voltage L+:

• Input Current:

• From Load Voltage L+ (without load): Max. 30 mA

• From Backplane Bus 5 V DC: Max. 200 mA

Power Loss

• Typical Power Loss: 4 W

Digital Outputs

• Number of Digital Outputs: 32

• Limitation of Inductive Shutdown Voltage: -27 V

• Switching Capacity on Lamp Load: Max. 5 W

Potential Separation and Isolation

• Potential Separation:

• Between Channels: In groups of 32

• Between Channels and Backplane Bus: Yes

• Isolation: Tested with 500 V DC

Dimensions and Weight

• Dimensions:

• Width: 25 mm

• Height: 290 mm

• Depth: 210 mm

• Weight: Approx. 600 g
