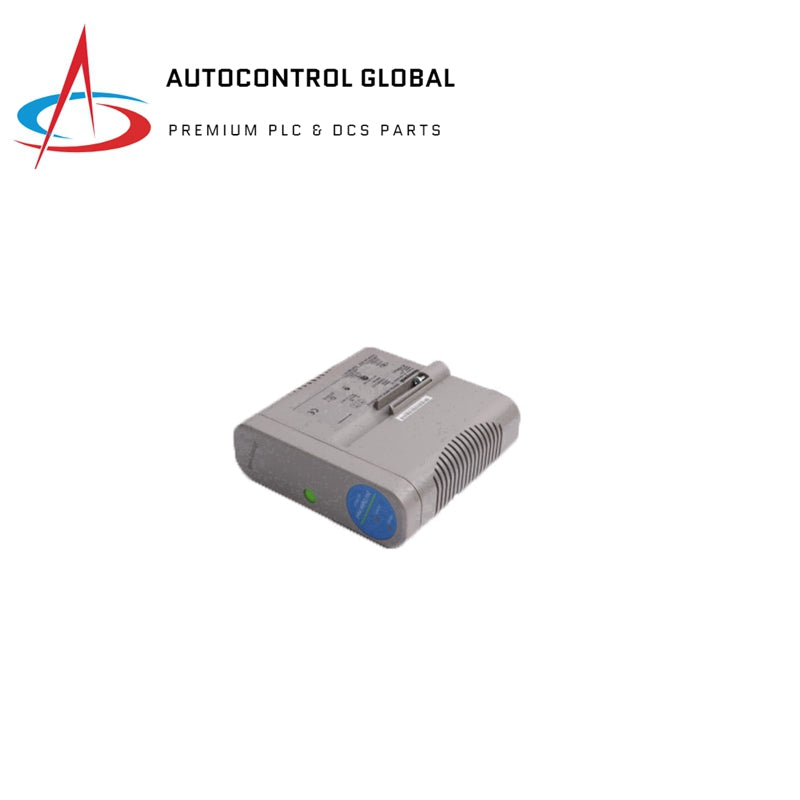

8C-PAIHA1 | Honeywell | Analog Input with HART

Input Specifications

• Input Type: Current (2-wire or self-powered transmitters)
• Input Channels: 16 Channels (All 16 Single Ended)
• A/D Converter Resolution: 16 bits
• Input Range: 4-20 mA (through 250 Ω)

Electrical Ratings

• Voltage Rating: 24 VDC
• Module Current Rating: 110 mA

Temperature Ratings

• Operating Temperature: 0 to 60 °C
• Storage Temperature: -40 to 85 °C

Performance Characteristics

• Module Removal and Insertion: Supported Under Power
• Normal Mode Rejection Ratio (at 60 Hz): 19 dB
• Normal Mode Filter Response: Single-pole RC, -3 dB @ 6.5 Hz
• Crosstalk (dc to 60 Hz, channel-to-channel): -60 dB
• Maximum Input Voltage (any input referenced to common, no damage): ±30 Volts
• Input Scan Rate: 50 ms
• Hardware Accuracy:
  • ±0.075% of full-scale (23.5° ± 2°C)
  • ±0.15% of full-scale (0 to 60°C)

Isolation Specifications

• Galvanic Isolation (any input terminal voltage referenced to common): 1000 VAC RMS or ±1000 VDC
• Isolation Technique: Icoupler (in IOM)
