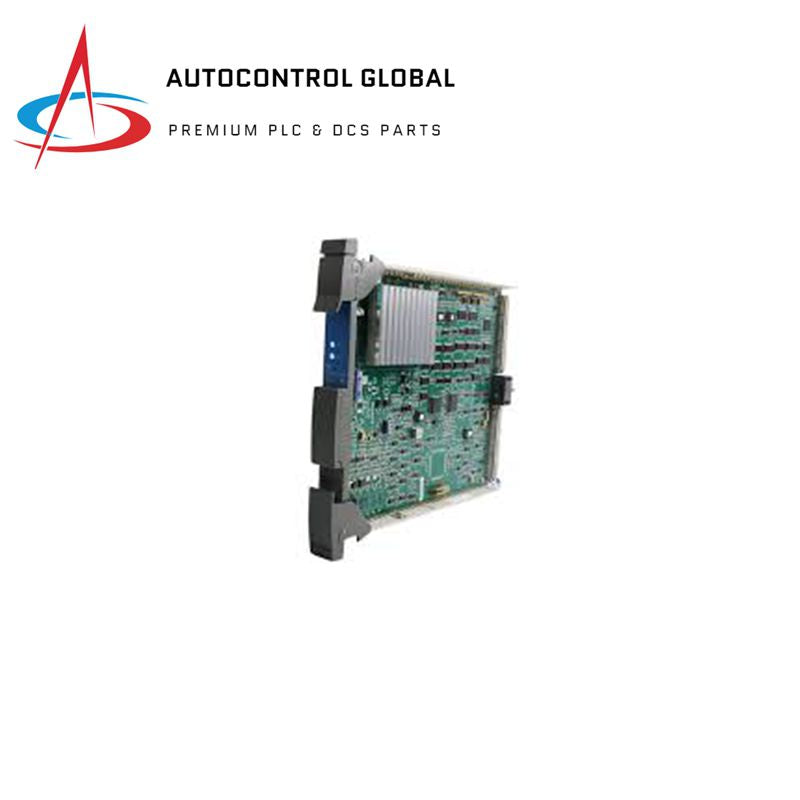

900A16-0101 | Honeywell | Analog Input Hi Level Module

Description

The Honeywell 900A16-0101 is an Analog Input Hi Level Module designed for high-precision analog signal processing. It offers a range of features for accurate and reliable data acquisition in industrial applications.

Technical Specifications

• Manufacturer: Honeywell
• Product No.: 900A16-0101
• Product Type: Analog Input Hi Level Module
• Inputs per Module: 16 (isolated)
• Input Types: Voltage (V), Current (mA)
• Input Impedance:
  • Voltage Inputs: >1 megohm
  • Current Inputs: 250 ohms
• Galvanic Input Isolation:
  • Point to Point: 400 VDC
  • Solid State Switching: 1K VDC to logic
• Noise Rejection:
  • Series Mode: >31dB
  • Common Mode: >90dB at 120VAC
• Over-Range Limit: ±10% for linear ranges (volts)
• Temperature Effect on Accuracy: ±0.01% of full scale per degree Celsius maximum
• A/D Converter: One per module
• A/D Resolution: ±15 Bits
• Update Rate: 100ms (Analog to Digital Converter per module)
• Long-Term Stability: 0.1% per year
