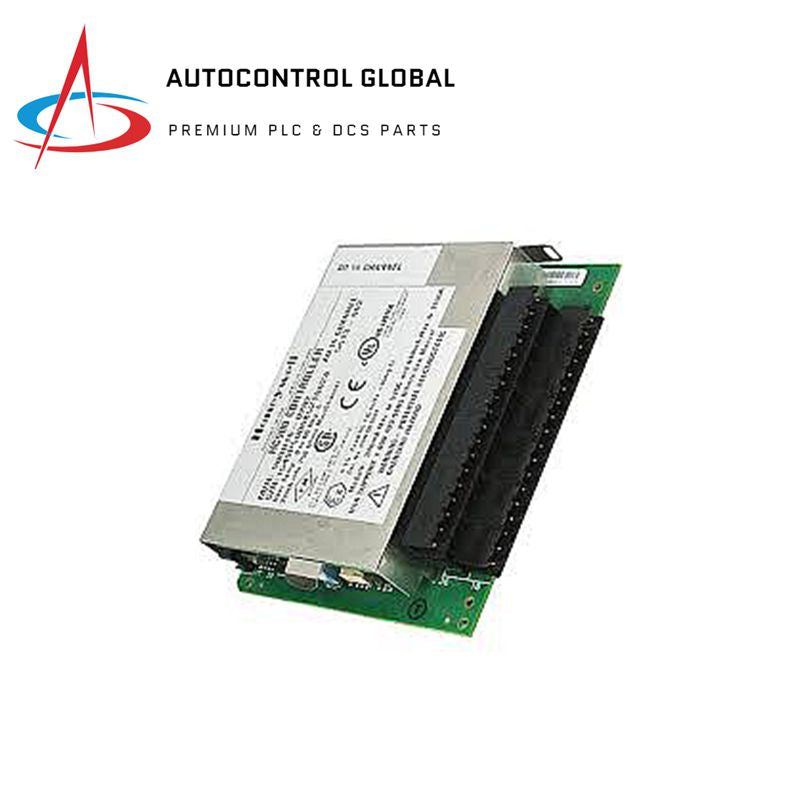

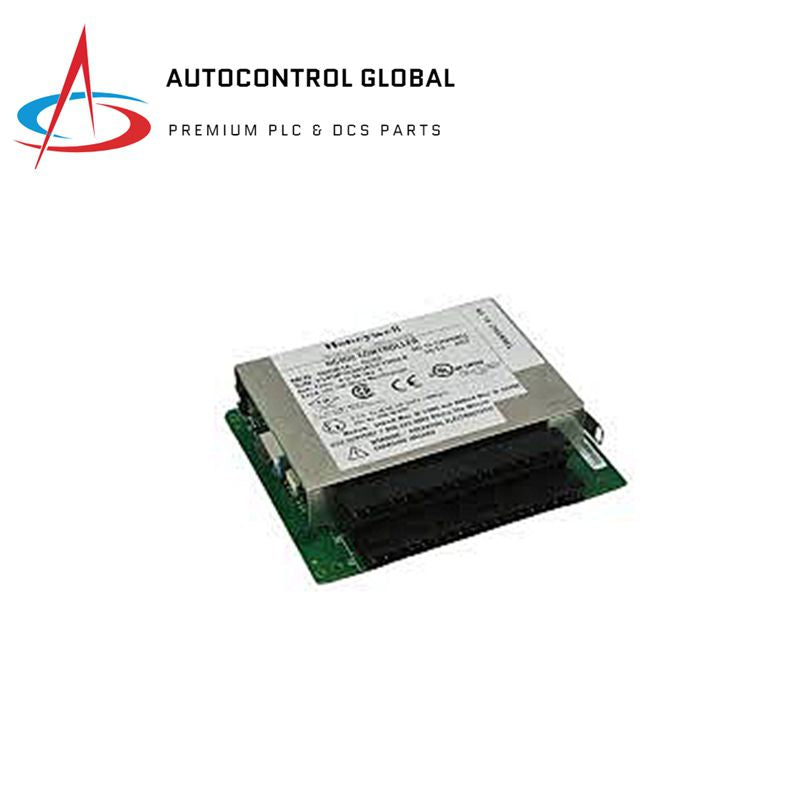

900B16-0202 | Honeywell | Analog Output Module

Description

• Manufacturer: Honeywell
• Product Number: 900B16-0202
• Product Type: Analog Outputs 0 to 20mA, 16 Channel

Features

• Outputs per module: 16, isolated in 4 groups of 4 outputs (1-4, 5-8, 9-12, 13-16)
• Current: 0 to 21.0 mA, range selectable
• Load resistance: 750 ohms max
• Galvanic Isolation: 500VDC group to group (Groups 1-4, 5-8, 9-12, 13-16)
• Galvanic Isolation from logic: 500 VDC
• Accuracy: 0.1% full scale at reference conditions
• Modules per rack: 2 max when powered from internal 24V backplane power
• Minimum current sensing: > 0.5mA per output
• Calibration Data: Data is stored in non-volatile memory. Redundant Factory Calibration, with automatic rejection of Bad version. Individual Channel Field Calibration
• Diagnostics: Monitoring of Factory Calibration, Field Calibration, and Configuration
• Output Verification: Feedback to controller to indicate output current is flowing
• D/A Resolution: 13+ bits (1 part in 13332)
• Power Supply Loading: 5V; 350 mA max / 24V; 700 mA max
• Terminal Block: 36 Position – Euro style, (Model 900TCK-0001)
