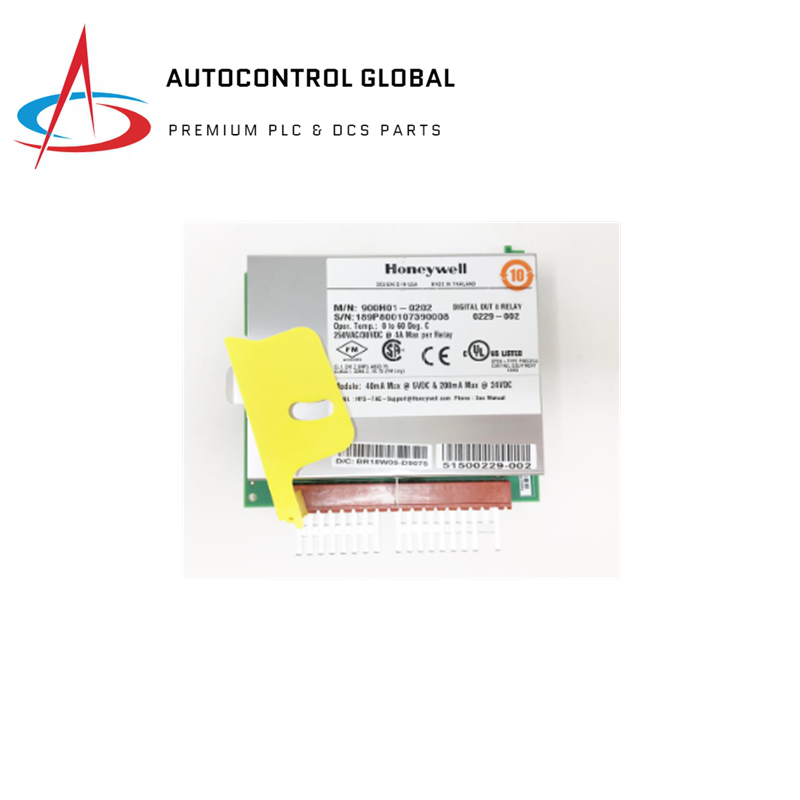

900H01-0202 | Honeywell | Digital Output, Relays, 8 Channel

Description

• Manufacturer: Honeywell
• Product No.: 900H01-0202
• Product Type: Digital Output, Relays, 8 Channel

Features

• 8 Relays per Module:

  • 4 Form A (SPST-NO)
  • 4 Form C (SPDT)

• Output Device: Electromechanical relay

• Voltage Ratings:

  • 120/240 VAC
  • 30 VDC

• Current Rating:

  • 4A @ 240VAC or 30VDC resistive load
  • 0.5 A @ 240VAC or 30VDC incandescent lamp load

• Galvanic Isolation:

  • Relay Output Contact to Relay Output Contact
  • Relay Output Contact to Logic

• Max. Leakage Current: 1 mA @ 350 VDC

• De-rating:

  • Max. outputs at max. load – none
  • Max. modules per rack – none

• Response Time:

  • OFF to ON: 11 ms max
  • ON to OFF: 8 ms max

• Power Supply Loading:

  • 5V; 110mA max
  • 24V; 100mA max

• Expected Life (Min. Operations):

  • Mechanical (at 180 cpm): 5 x 10^7
  • Electrical: 10^5

• Dimensions:

  • Height: 137 mm (5.4”)
  • Width: 35.6 mm (1.4”)

• Weight:

  • Module: 0.425 kg
  • Shipping: 2 kg
