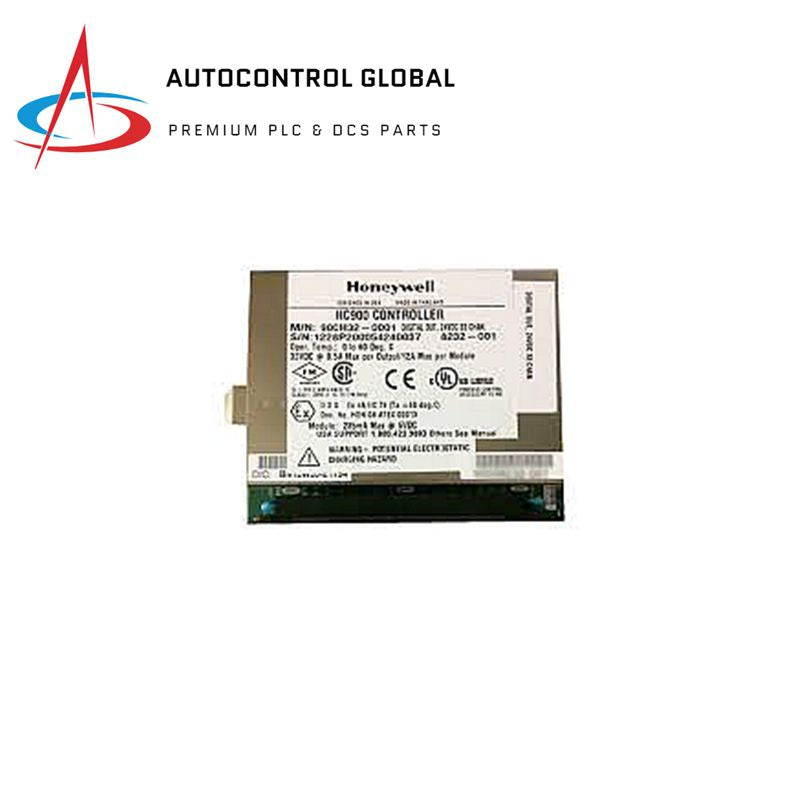

900H32-0001 | Honeywell | 32 Point Digital Output Module

Description

The Honeywell 900H32-0001 is a 32-point digital output module designed for industrial automation and control systems. It provides reliable and efficient output signal processing for various applications.

Features

• 32 digital output channels
• Output type: High side driver
• Galvanic isolation: 2 groups of 16 outputs
• Operating voltage range: 10.5 VDC to 32 VDC
• Peak voltage: 32 VDC
• ON voltage drop: 0.15 VDC @ 0.5 A load
• Overload protection: Active current limiting integrated into output driver

Technical Specifications

• Product Type: 32 Point Digital Output Module
• Outputs per module: 32 (current sourcing, high side)
• Galvanic Isolation: 2 groups of 16 outputs
• Operating Voltage: 10.5 to 32 VDC
• Peak Voltage: 32 VDC
• ON Voltage Drop: 0.15 VDC @ 0.5 A load
• Maximum Load Current: 0.5 A per point, 12 A max. per module
• Maximum Leakage Current: 0.15mA @ 32 VDC
• Response Time (OFF to ON): 6 ms
• Response Time (ON to OFF): 6 ms
