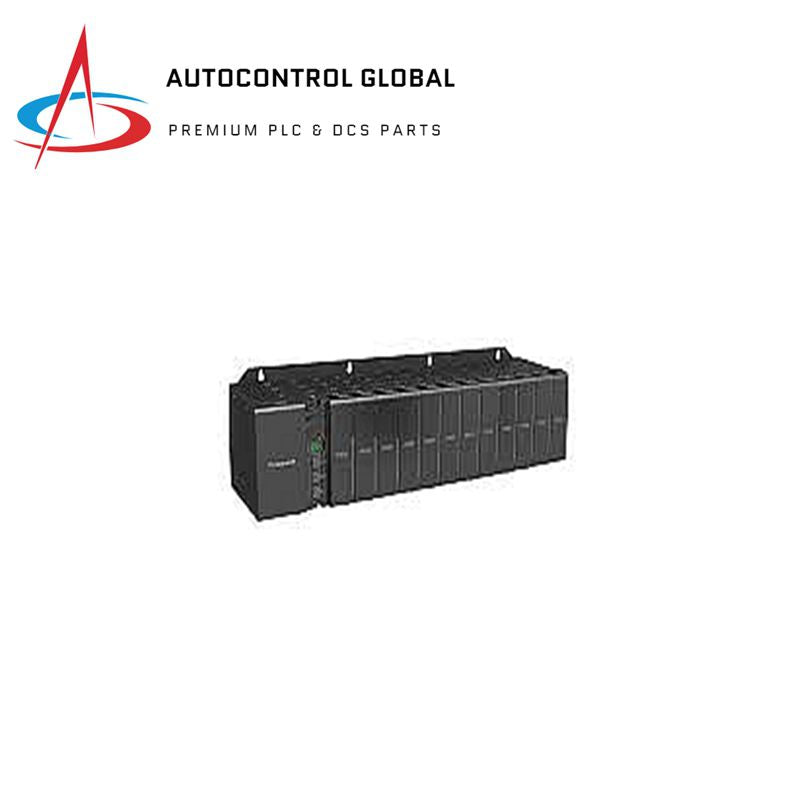

900U02-0100 | Honeywell | ControlEdge HC900 IO Module

Description

The 900U02-0100 is a versatile safety universal input/output module from Honeywell’s ControlEdge HC900 series. It is designed for various industrial automation and process control applications.

Features

• SIL-2 Safety Rated: Meets SIL-2 requirements for high safety levels in hazardous environments
• 16 Universal Channels: Configurable as input or output, providing flexibility
• Line Monitoring: Continuous monitoring of channel integrity
• HART Supported: Allows advanced device configuration and diagnostics
• 4-20 mA: Handles standard 4-20 mA analog signals
• 24V Field Power Supply: Powers external devices and sensors directly
• Modular Design: Integrates seamlessly into the HC900 system

Technical Specifications

• Part Number: 900U02-0100
• Model: ControlEdge HC900 Safety Universal Input/Output Module
• Manufacturer: Honeywell
• Number of Channels: 16
• Signal Type: Universal (input/output)
• Current: 4.2 Amps maximum per module, 500 mA maximum per channel
• Voltage: 24V DC
• Protocol: HART supported
• Safety Rating: SIL-2
• A/D Converter Resolution: 16 Bit
• Input Range: 4-20 mA
• Dimensions: 13.2 cm x 2.5 cm x 17 cm
• Weight: 1.00 lbs
• Approvals: CE, TUV, UL508, CSA
• Power Supply Loading: 5V; 350 mA max / 24V; 700 mA max
• Terminal Block: 36 Position – Euro style, (Model 900TCK-0001)
