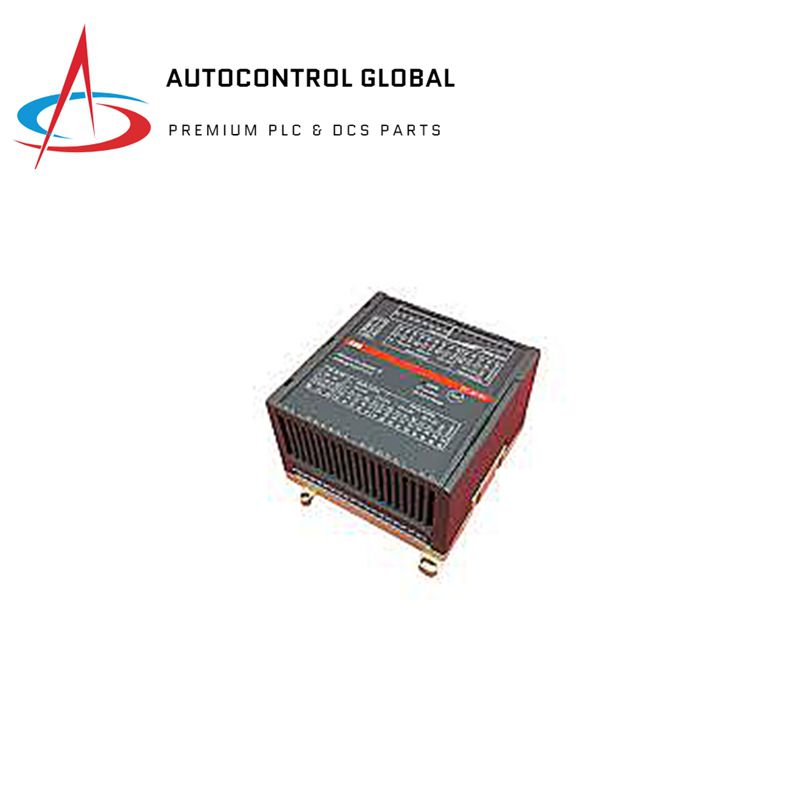

ABB 07AI91 GJR5251600R0202 Analog I/O Module

General Information

• Extended Product Type: 07AI91

• Product ID: GJR5251600R0202

• ABB Type Designation: 07AI91

• EAN: 4013614267635

• Catalog Description: 07AI91:AC31, Analog I/O, module

• Long Description: 07AI91:AC31, Analog I/O, module 8AI, 24VDC, U/I/RTD, 8/12bit+Sign 1/3-wire, CS31

Additional Information

• ABB Type Designation: 07AI91
• ABS Certificate: 1SAA960000-0102
• Ambient Air Temperature:
  • Operation: 0 … +55 °C
  • Storage: -25 … +75 °C
• Analog Inputs: 8 channels, thermocouple (J, K, S), PT100, PT1000, -50 … +50mV, -500 … +500mV, -5 … +5V, -10 … +10V, 0 … 20mA, 12 bit+sign
• CN8: 85389091
• CS31-Bus: 1
• CSA Certificate: 1SAA960000-1102
• Cable Cross-Section: 0.08 … 1.5 mm²
• Country of Origin: Germany (DE), Spain (ES)
• Customs Tariff Number: 85389091
• DNV Certificate: 1SAA960000-0304
• Data Sheet, Technical Information: 2CDC122023D0202
• Declaration of Conformity - CE: 1SAD938505-0047
• Degree of Protection: IP20
• EAN: 4013614267635
• Environmental Information: 1SAA960001-2401
• Fieldbus Interface Type: CS31 Slave
• Frame Size: Undefined
• GL Certificate: 1SAA960000-0401
• Gross Weight: 0.48 kg
• I/O Option: Bus module with Onboard IO - 8AI
• Instructions and Manuals: AC31 with AC1131 Part 2: hardware series 90
• Invoice Description: 07AI91:AC31, Analog I/O, module
• LR Certificate: 1SAA960000-0502
• Made To Order: No
• Maximum Operating Altitude Permissible: 2000 m
• Minimum Order Quantity: 1 piece
• Mounting on DIN Rail:
  • TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
• Number of Analog Configurable I/Os: 0
• Order Multiple: 1 piece
• Primary Voltage: 24 V
• Product Depth: 85 mm
• Product Main Type: 07AI91
• Product Name: Distributed Automation I/O
• Product Net Depth / Length: 85 mm
• Product Net Height: 140 mm
• Product Net Weight: 0.48 kg
• Product Net Width: 120 mm
• Product Type: PLC-AC31-90
• Quote Only: No
• RINA Certificate: 1SAA960000-0802
• RMRS Certificate: 1SAA960000-0702
• RoHS Information: 1SAA960005-4401
• Selling Unit of Measure: piece
• Serial Port 1 Type: RS-485, CS31
• Short Description: 1/3-wire, CS31
• Stocked At (Warehouses):
  • Wickliffe, Ohio, United States
  • New Berlin, Wisconsin, United States
• Supply Voltage: 24 V DC
• Terminal Type: Screw Terminals, Pluggable
• UL Certificate: 1SAA960000-1602
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
