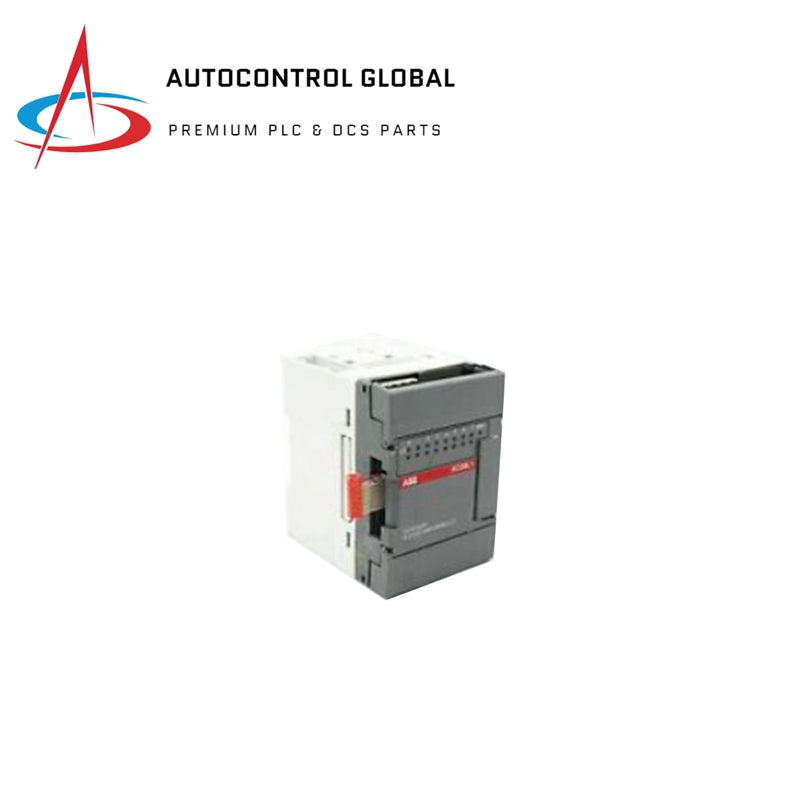

ABB 07KR51 1SBP260102R1001 Basic Controller Unit

General Information

• Extended Product Type: 07KP90

• Product ID: 1SBP260102R1001

• ABB Type Designation: 07KP90

• Catalog Description: 07KP90: AC31, PLC 8DI/6DO-Rel., 34kB.24VDC

• Long Description: 07KP90: AC31, PLC 8DI/6DO-Trans.34kB, 24VDC, Spring

Classifications

• ABB Type Designation: 07KP90
• Ambient Air Temperature:
  • Operation: 0 ... +55 °C
  • Storage: -40 ... +75 °C
• Battery Type: Portable
• Gross Weight: 0.35 kg
• Maximum Hardware Counter Input Frequency: 7 kHz
• Maximum Number of Analog I/Os: 258 AI, 224 AO
• Maximum Number of Digital I/Os: 1000
• Maximum Operating Altitude Permissible: 2000 m
• Memory Size:
  • User Data: 4.4 kB (non-volatile RAM)
  • User Program: 34 kB (Flash EPROM)
• Minimum Order Quantity: 1 piece
• Mounting on DIN Rail:
  • TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
  • TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
• Number of Digital Inputs DC 24V: 8
• Number of Digital Output Relays: 6
• Number of Hardware Counters: 2
• Order Multiple: 1 piece
• Output Current: 2 A
• Output Voltage (Uout): 230 V AC/DC
• Parallel Extension: 1
• Primary Voltage: 120 / 230 V AC
• Product Depth: 84 mm
• Product Main Type: 07KP90
• Product Name: Distributed Automation PLCs
• Product Net Depth / Length: 85 mm
• Product Net Height: 93 mm
• Product Net Weight: 0.29 kg
• Product Net Width: 65 mm
• Supply Voltage: AC 120 / 230 V
• UL Certificate: UL_E134045 Vol3 Sec2
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
