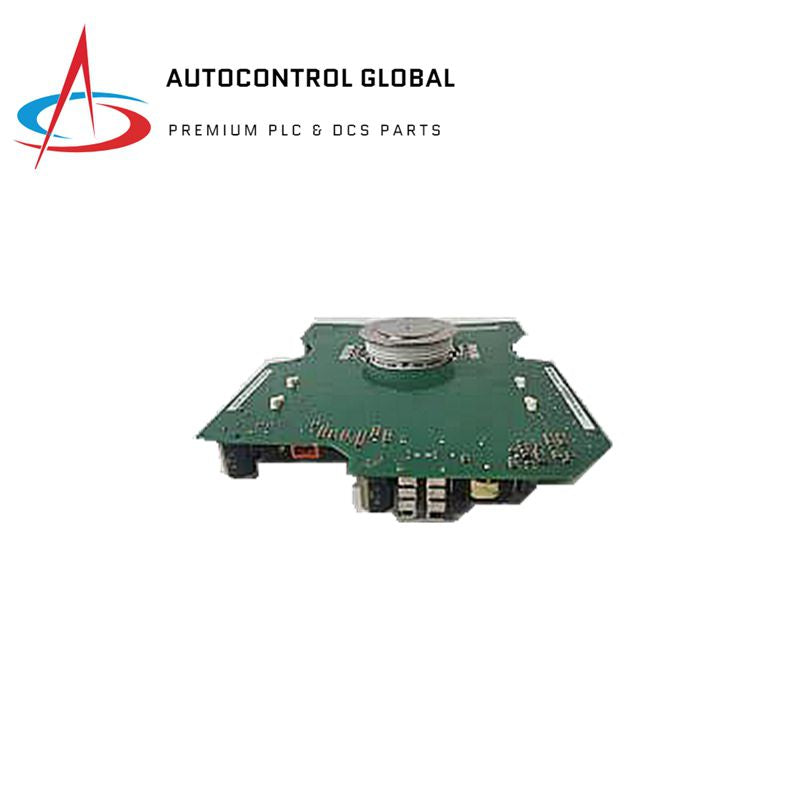

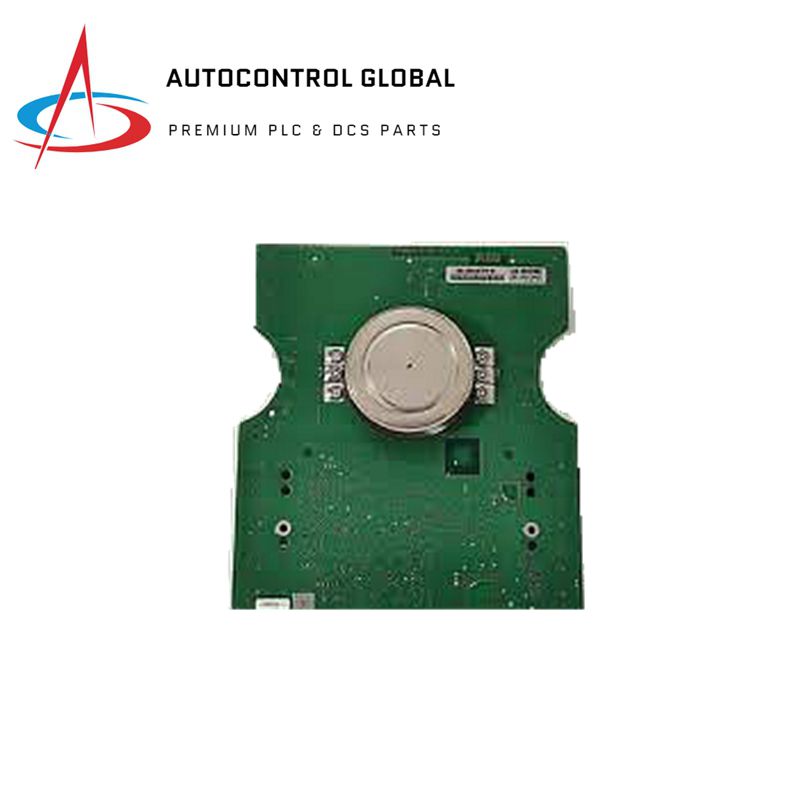

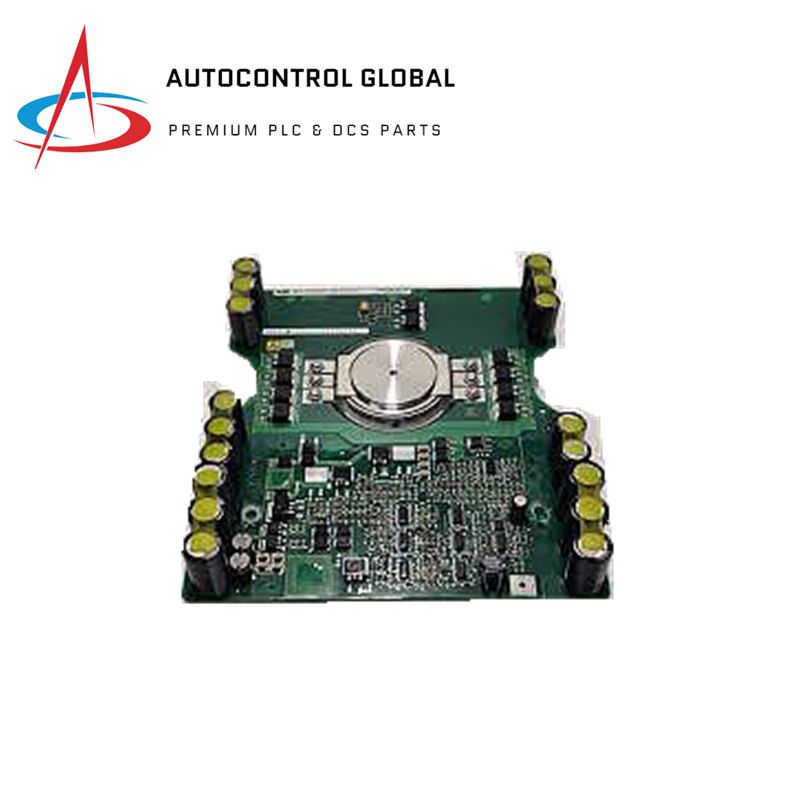

ABB 5SGX0845F0001 3BHB003387R0101 IGCT Module

Description

The ABB 5SGX0845F0001 3BHB003387R0101 is an Insulated Gate Bipolar Transistor (IGCT) module designed for high-voltage, megawatt applications. It combines robust construction with integrated control features to ensure reliable performance in demanding industrial environments.

Features

• High Current Capacity: Capable of delivering up to 1150A of continuous current.
• Durability: Designed to withstand harsh operating conditions, ensuring longevity in extreme environments.
• Integrated Gate Drive: Includes a dedicated gate drive circuit within the module, simplifying system design and reducing installation costs.
• Space Optimization: Maximizes space utilization within control cabinets, enhancing efficiency and flexibility in layout.
• Protection Mechanisms: Incorporates comprehensive protection mechanisms to safeguard the system against faults and overloads.

Technical Specifications

• Type: IGCT Module
• Continuous Current: Up to 1150A
• Operating Conditions: Suitable for heavy-duty industrial settings
• Gate Drive Circuit: Integrated within the module
• Protection: Comprehensive fault and overload protection
