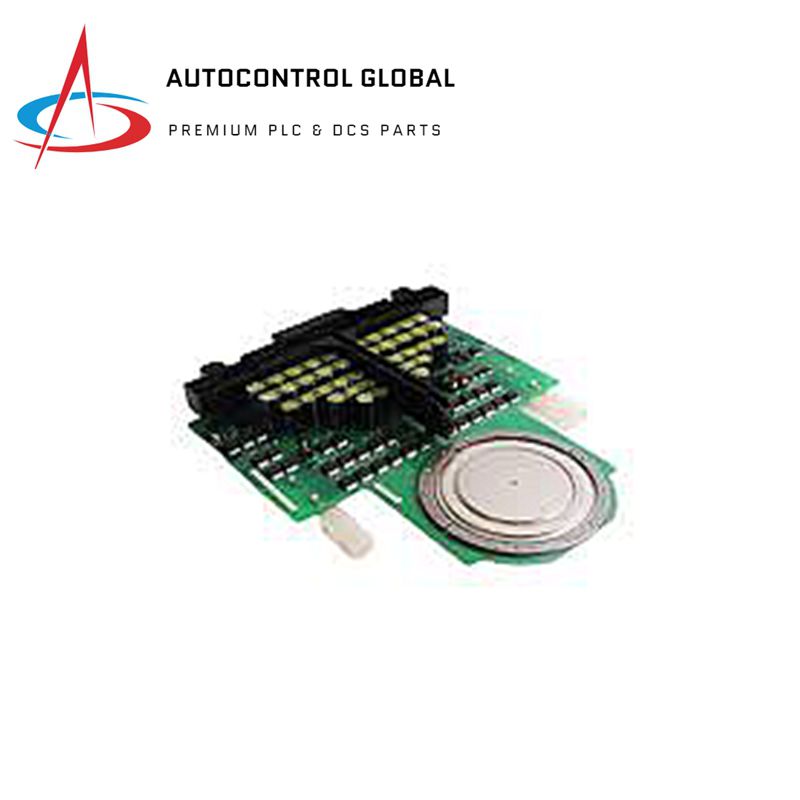

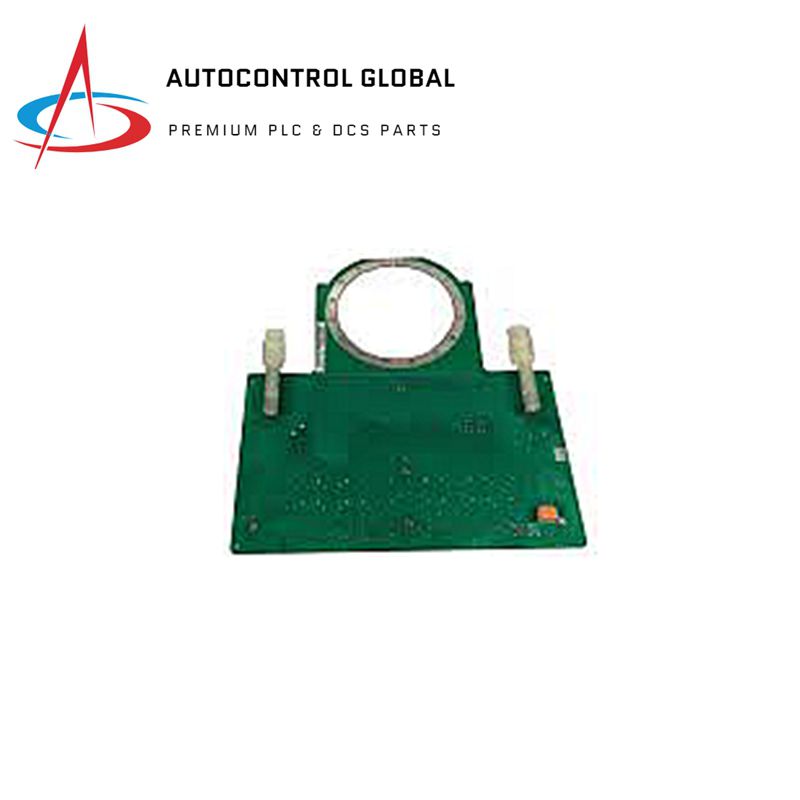

ABB 5SHX2645L0004 3BHB003154R0101 IGCT Module

Description

The ABB 5SHX2645L0004 3BHB003154R0101 is an advanced Integrated Gate Commutated Thyristor (IGCT) module designed specifically for high-voltage and high-power applications. Part of ABB’s esteemed 5SHX family of IGCT modules, it is renowned for its reliability, efficiency, and robust performance in demanding industrial environments.

Features

• High Voltage and Current Ratings: Capable of handling a maximum voltage of 4500V and a maximum current of 91A, suitable for applications such as HVDC converters, traction inverters, and industrial drives.
• Low Switching Losses: Utilizes IGCT technology to minimize switching losses, enhancing overall efficiency and reducing heat generation.
• High Switching Frequency: Can operate at frequencies up to 2kHz, enabling its use in high-demand applications such as wind turbines and solar inverters.
• Rugged Construction: Designed to withstand harsh operating conditions and environments, ensuring reliability and longevity.

Technical Specifications

• Model: 5SHX2645L0004
• Part Number: 3BHB003154R0101
• Maximum Voltage: 4500V
• Maximum Current: 91A
• Switching Frequency: Up to 2kHz
• Turn-on Time: ≤ 1.5μs
• Turn-off Time: ≤ 1.5μs
• Cooling Method: Liquid-cooled
• Case Dimensions: 230mm x 110mm x 34mm
• Weight: 3.5kg
