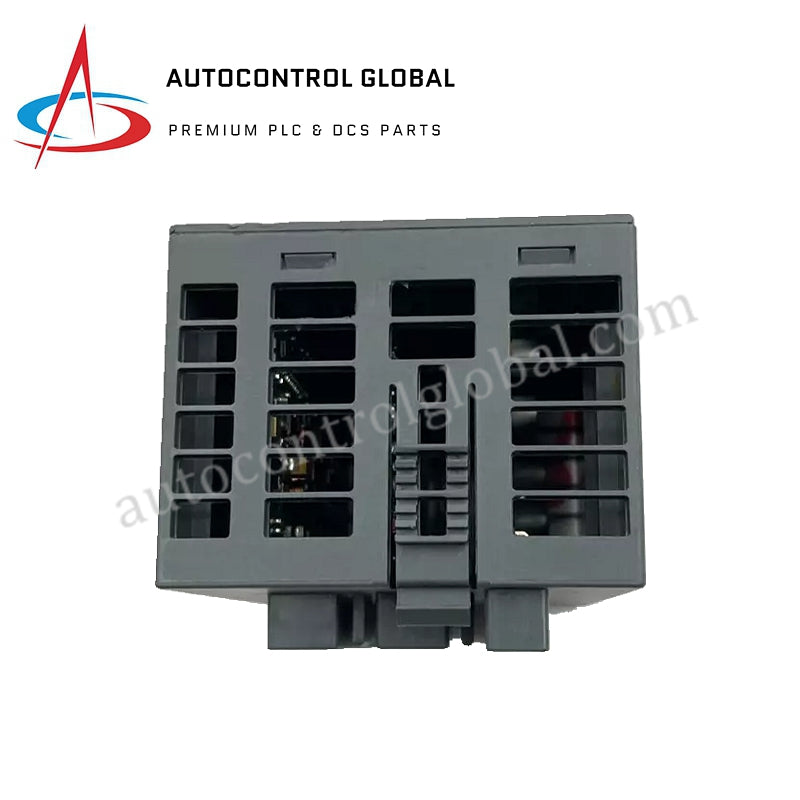

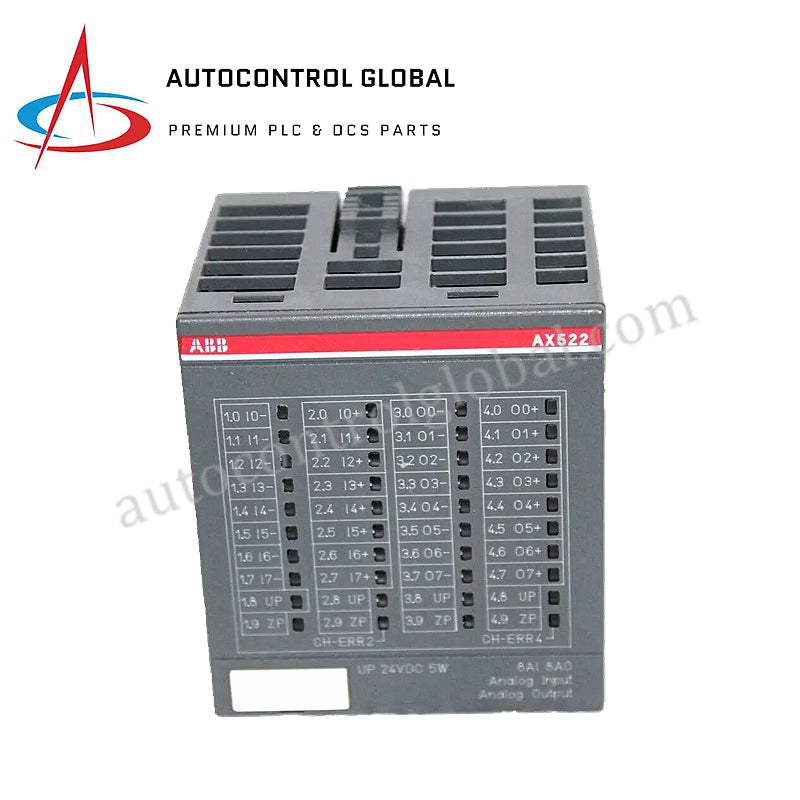

ABB AX522 Analog Input/Output Module

Ordering Data

• Part no.: 1SAP 250 000 R0001
  Description: AX522, analog input/output module, 8 AI, 8 AO, U/I/Pt100, 12 bits + sign, 2-wires
  Product Life Cycle Phase: Active

• Part no.: 1SAP 450 000 R0001
  Description: AX522-XC, analog input/output module, 8 AI, 8 AO, U/I/Pt100, 12 bits + sign, 2-wires, XC version
  Product Life Cycle Phase: Active

Technical Data

• Process voltage
  • Connections: Terminals 1.8, 2.8, 3.8, and 4.8 for +24 V (UP), as well as 1.9, 2.9, 3.9, and 4.9 for 0 V (ZP)
  • Rated value: 24 VDC
  • Max. ripple: 5 %
  • Protection against reversed voltage: Yes
  • Rated protection fuse on UP: 10 A fast
  • Galvanic isolation: Yes, per module
• Current consumption
  • From 24 VDC power supply at the terminals UP/L+ and ZP/M of the CPU/bus module: Ca. 2 mA
  • From UP at normal operation: 0.15 A + output loads
  • Inrush current from UP (at power up): 0.020 A2s
• Weight: 300 g
