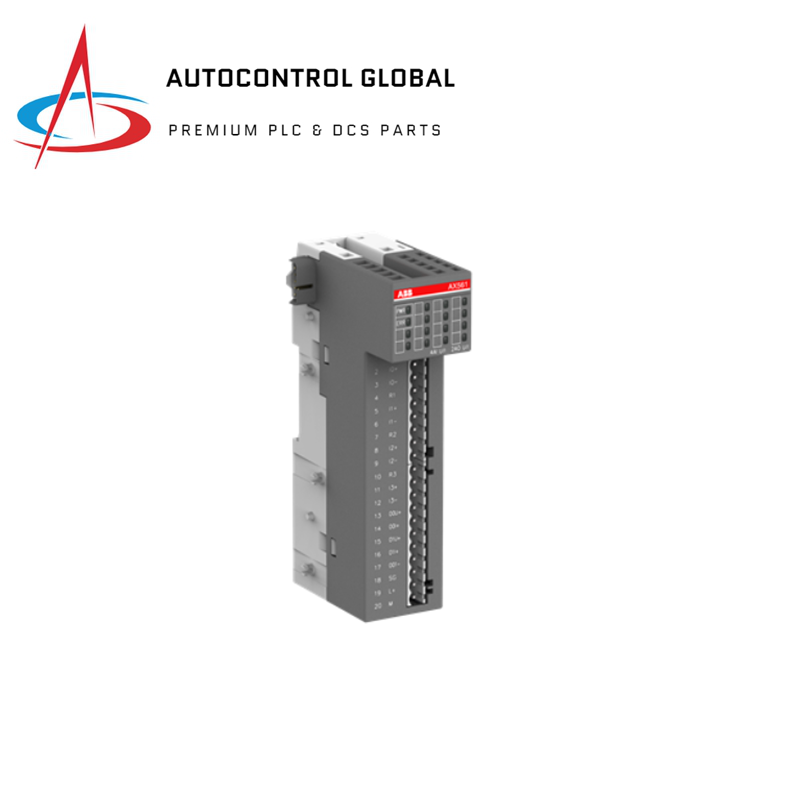

ABB AX561 Analog Input/Output Module

General Information

• Extended Product Type: AX561
• Product ID: 1TNE968902R1301
• ABB Type Designation: AX561
• EAN: 6943747170190
• Catalog Description: Analog input/output module. 4 AI: U, I. 2 AO: U, I (AX561)
• Long Description: AX561: S500 Analog input/output module with 4 Analog Inputs (U, I) and 2 Analog Outputs (U, I). 1-wire communication.

Dimensions

• Product Net Weight: 0.122 kg
• Product Net Depth / Length: 135 mm
• Product Net Height: 74 mm
• Product Net Width: 34 mm

Technical

• Function: 4 Analog Inputs (U, I), 2 Analog Outputs (U, I)
• Number of Analog Configurable I/Os: 0
• Analog Inputs: 4
• Input Signal: U, I
• Analog Outputs: 2
• Output Signal: U, I
• Resolution: 12-bit for both Analog Input and Analog Output
• Connection Type: Pluggable
• Degree of Protection: IP20
• Ambient Air Temperature:
  • Operation: 0 to +60 °C
  • Storage: -40 to +70 °C

Additional Information

• Product Main Type: AX561
• Product Name: Distributed Automation I/Os

Environmental

• SCIP: c887cf92-28a3-4b16-8e08-37da9806c17f (Germany DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
