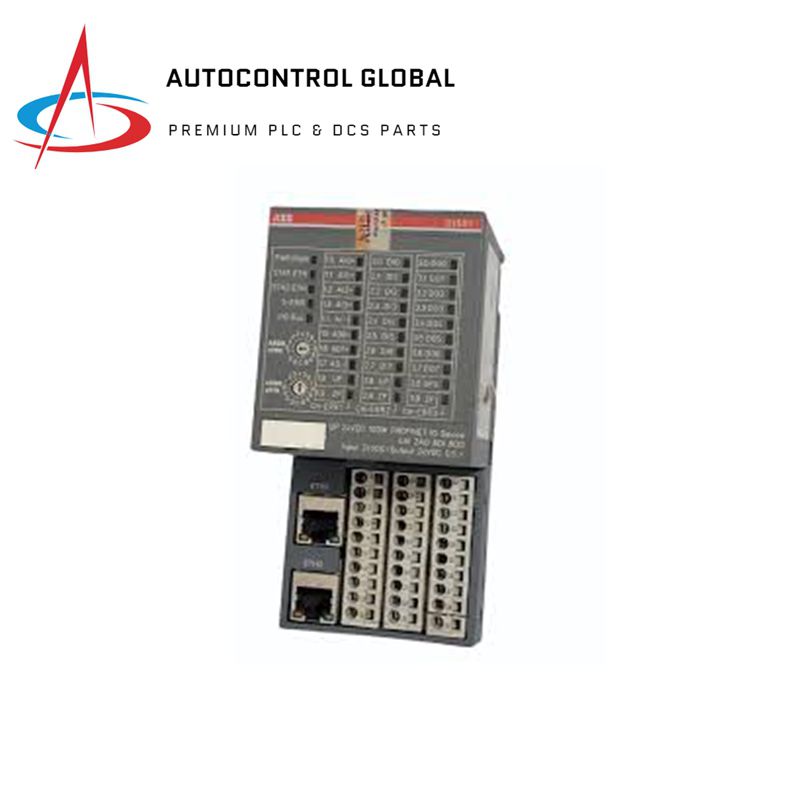

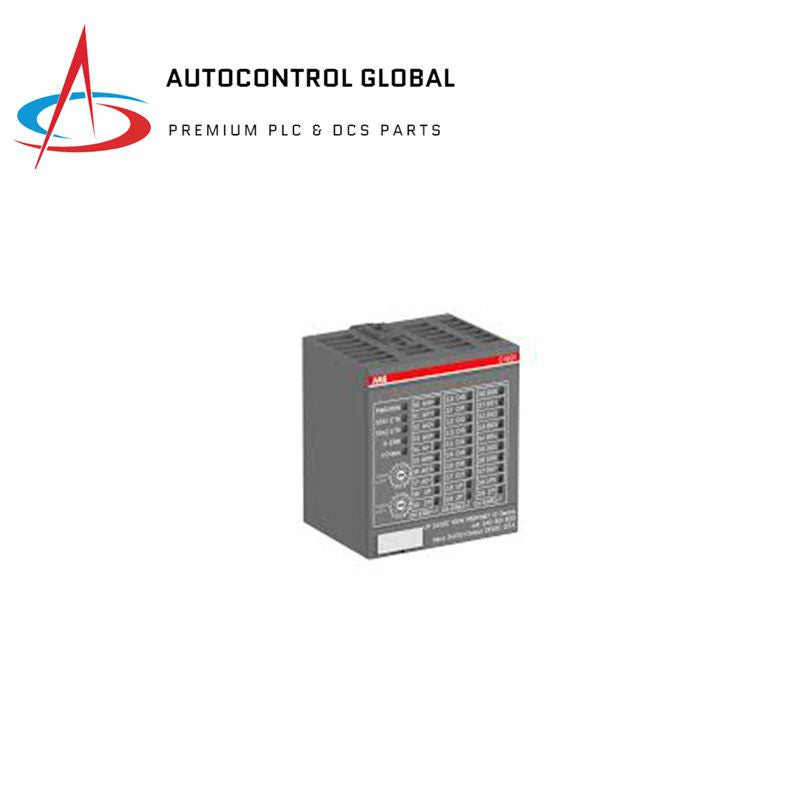

ABB CI501-PNIO 1SAP220600R0001 Interface Module

General Information

• Extended Product Type: CI501-PNIO
• Product ID: 1SAP220600R0001
• ABB Type Designation: CI501-PNIO
• EAN: 4016779661263
• Catalog Description: Interface module. PROFINET IO RT device. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI 24VDC. 8 DO 24VDC 0.5A (CI501-PNIO)
• Long Description: CI501-PNIO: S500 Interface module for PROFINET IO RT. Includes 4 AI: U, I, RTD; 2 AO: U, I; 8 DI 24VDC; 8 DO 24VDC 0.5A. Extendable by up to 10 I/O modules.

Ordering

• CN8: 85389091
• Invoice Description: Interface module. PROFINET IO RT device. 4 AI: U, I, RTD. 2 AO: U, I. 8 DI 24VDC. 8 DO 24VDC 0.5A (CI501-PNIO)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: Piece

Dimensions

• Product Net Weight: 0.136 kg
• Product Net Depth / Length: 62 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm
• Gross Weight: 0.16 kg
• Package Level 1 Depth / Length: 84 mm
• Package Level 1 Height: 72 mm
• Package Level 1 Width: 71 mm
• Package Level 1 Units: 1 carton

Technical

• Function: PROFINET IO RT device with 4 AI: U, I, RTD; 2 AO: U, I; 8 DI 24VDC; 8 DO 24VDC 0.5A
• Number of Hardware Interfaces:
  • Industrial Ethernet: 2
  • Other: 0
  • Parallel: 0
  • RS-232: 0
  • RS-422: 0
  • RS-485: 0
  • Serial TTY: 0
  • USB: 0
  • Wireless: 0
• Analog Inputs: 4
• Analog Outputs: 2
• Number of Digital Inputs: 8
• Number of Digital Outputs: 8
• Number of Digital Configurable I/Os: 0
• Input Voltage Type: DC
• Input Voltage (Uin): 24 V DC
• Input Current: 5 mA
• Delay Time (τ): 0.1 … 32 ms
• Output: Transistor
• Output Voltage Type: DC
• Output Current: 0.5 A
• Output Voltage Maximum: 20.4 … 28.8 V
• Degree of Protection: IP20
• Supply Voltage: 20.4 … 28.8 V DC

Additional Information

• Product Main Type: CI501
• Product Name: Distributed Automation I/Os

Classifications

• eClass: 27-24-26-07
• ETIM 8: EC001604 - Fieldbus, decentr. periphery - communication module
• UNSPSC: 32151705

Environmental

• SCIP: a307b9ae-b352-4d4d-8ebf-99c63e467033 Germany (DE)
• WEEE B2C / B2B: Business To Business
• WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
