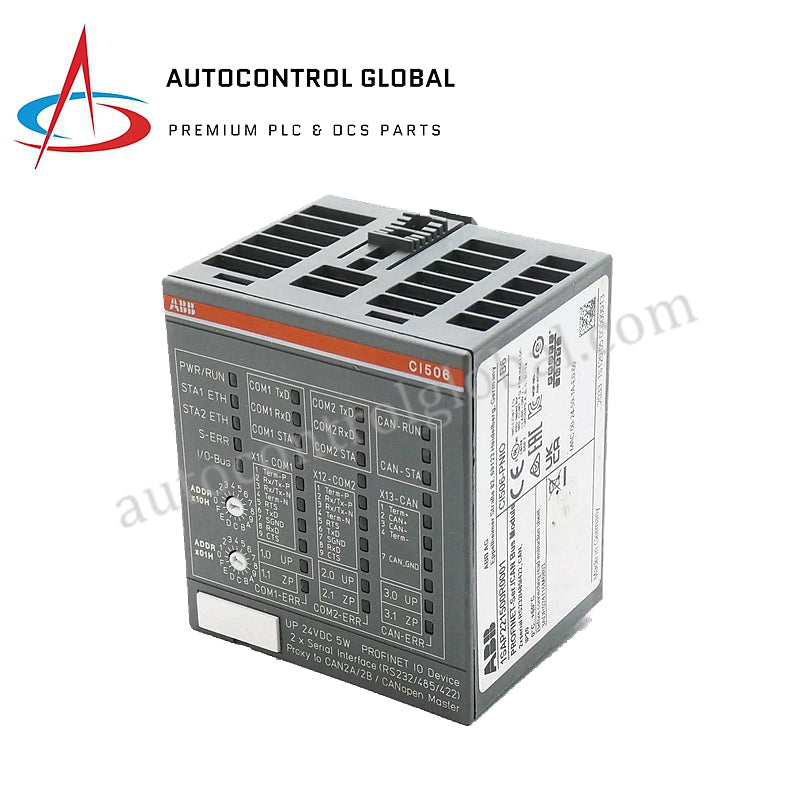

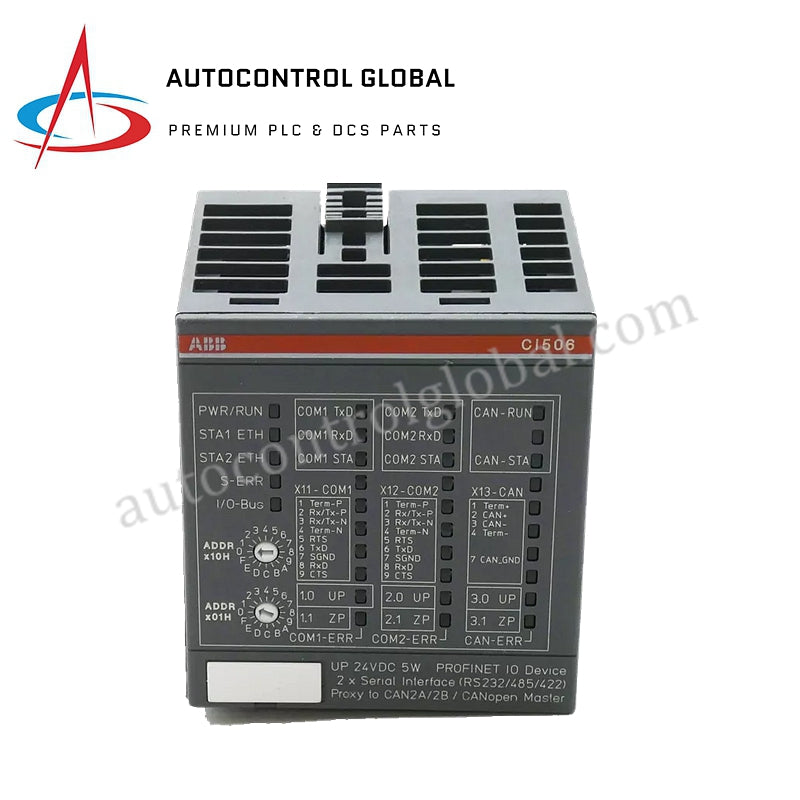

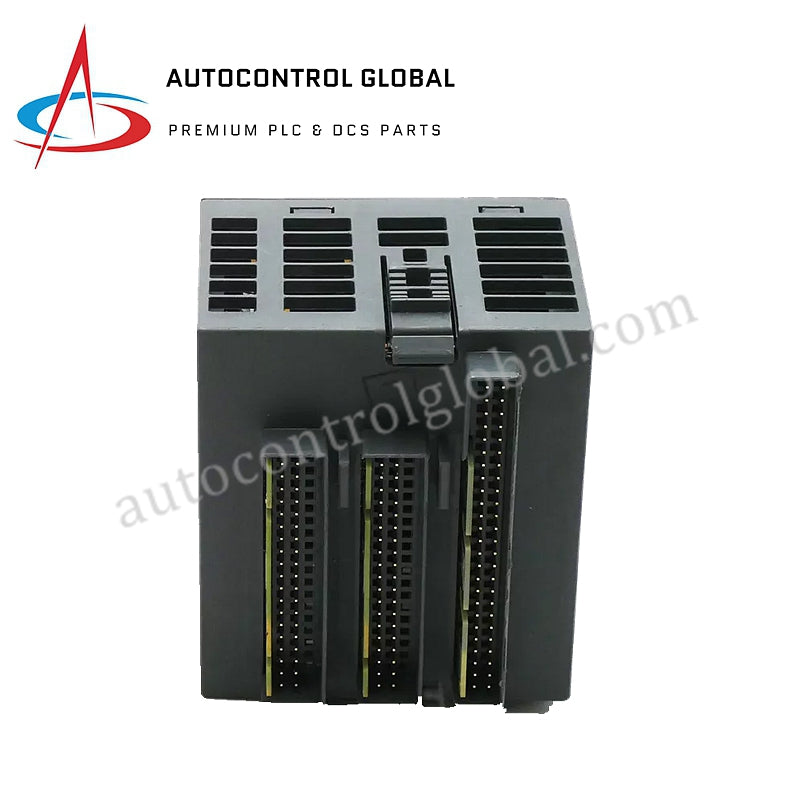

ABB CI506-PNIO | AC500 PROFINET Communication Interface Module

Overview

The CI506-PNIO is a PROFINET communication interface module designed for use with ABB's AC500 PLC system. It supports 100Mbit/s Ethernet media for PROFINET IO RT slave communication and offers two RS-232/422/485 serial ports and a CANopen master interface.

Specifications

• Product Life Cycle Phase: Active
• Interface Ports:
  • 2 x RS-232/422/485
  • 1 x CANopen master interface
• Communication Standard: PROFINET IO RT
• Ethernet Speed: 100 Mbit/s
• CAN Features: CAN2A/CAN2B send and receive functionality

Compatibility and Usage

• Application: Used with ABB AC500 PLC for connecting serial devices and CAN networks
• Functionality: Acts as a CANopen master and enables serial communication through RS-232/422/485

Ordering Information

• Part No.: 1SAP 221 500 R0001
• Description: CI506-PNIO, PROFINET communication interface module with 2 serial interfaces and 1 CANopen master interface
