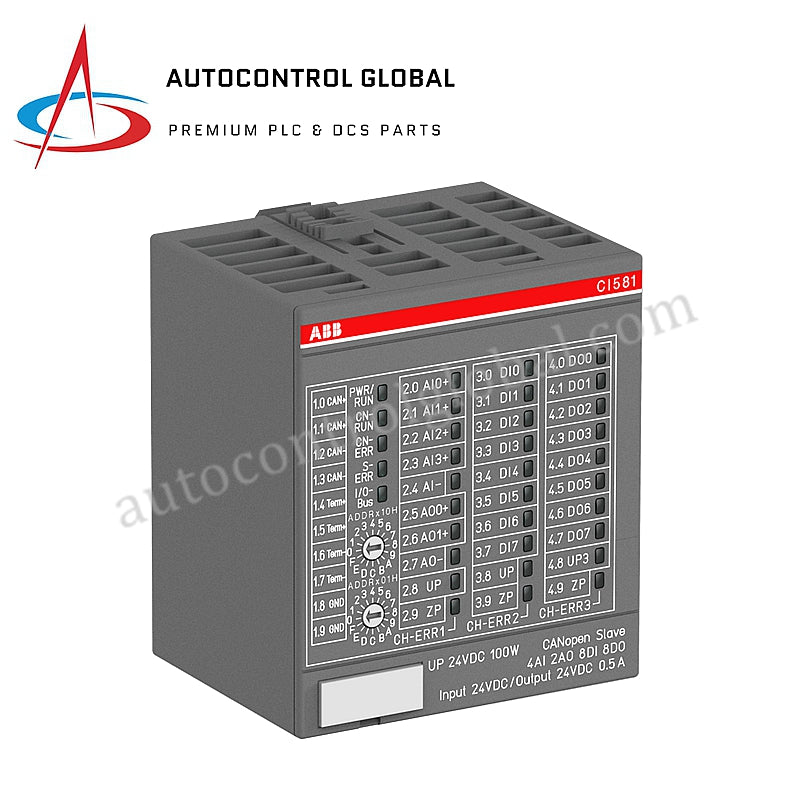

ABB CI581-CN S500 Interface Module

Description

• Model: CI581-CN
• Brand: ABB
• Type: Interface Module (CANopen Slave)

Technical Specifications

• Analog Inputs: 4 (U, I, RTD)
• Analog Outputs: 2 (U, I)
• Digital Inputs: 8 (24 V DC)
• Digital Outputs: 8 (24 V DC, 0.5 A)
• Configurable Digital I/Os: 0
• Input Voltage: 24 V DC
• Input Current: 5 mA
• Output Current: 0.5 A
• Output Voltage Range: 20.4 … 28.8 V
• Delay Time: 0.1 … 32 ms

Communication

• Protocol: CANopen Slave

Physical Characteristics

• Dimensions (W x H x D): 6.2 x 7.6 x 6.75 cm
• Weight: 0.137 kg
• Degree of Protection: IP20

Power

• Supply Voltage: 20.4 … 28.8 V DC
• Input Voltage Type: DC
• Maximum Power Dissipation: 6 W
• Max. Load for Terminals: 10 A
• Current Consumption (Normal Operation): 0.15 A
• Current Consumption via UP3: 0.06 A + 0.5 A per output

Mounting

• Mounting Position: Horizontal or vertical (with derating)
• Cooling: Natural convection cooling

Additional Information

• Extendable by up to 10 I/O Modules
