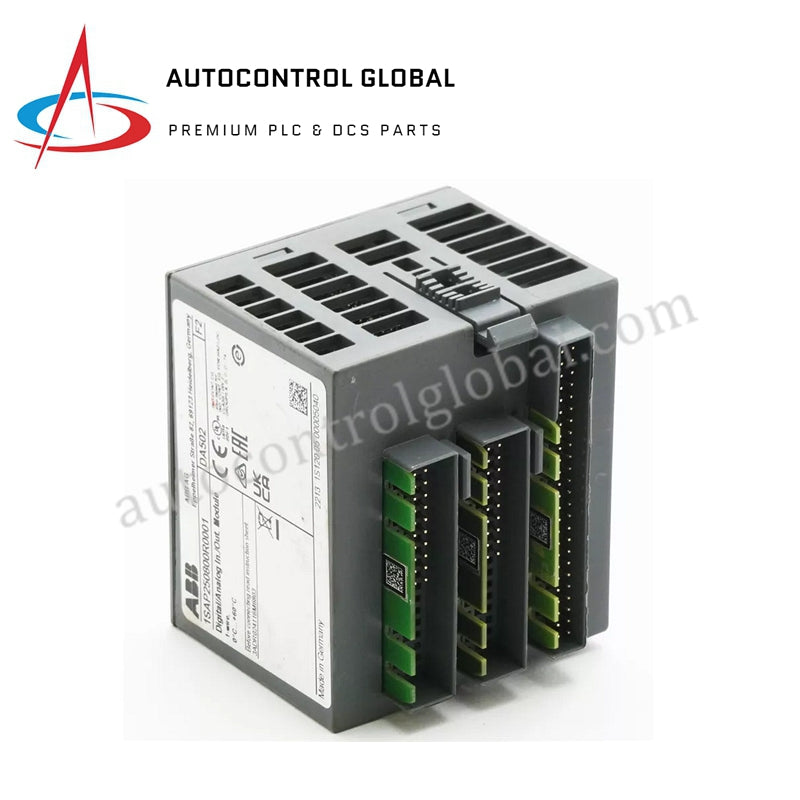

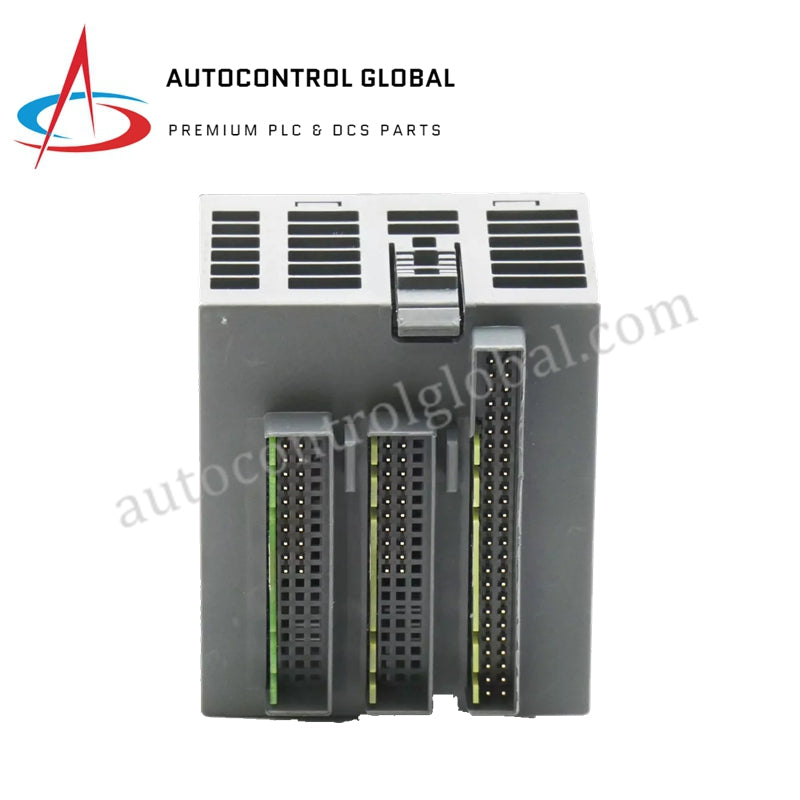

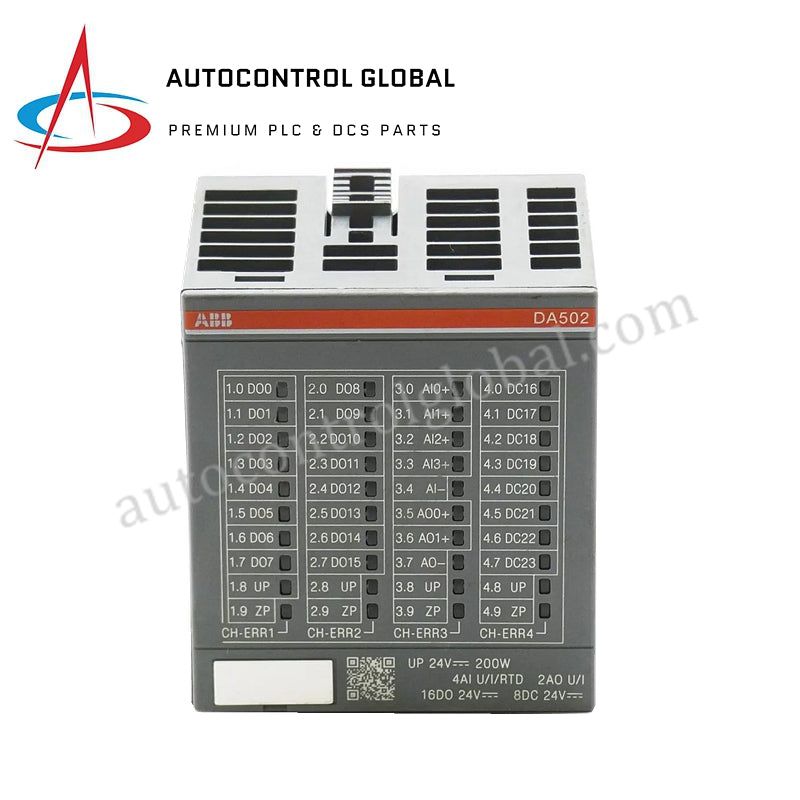

ABB DA502 S500 Digital/Analog I/O Module

General Information

• Extended Product Type: DA502
• Product ID: 1SAP250800R0001
• ABB Type Designation: DA502
• Catalog Description: Digital/analog I/O module. 16 DO 24VDC 0.5A. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A (DA502)
• Long Description: DA502: S500 Digital/analog I/O module. 16 DO 24VDC 0.5A. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A. 1-wire.

Ordering

• CN8: 85389091
• Invoice Description: Digital/analog I/O module. 16 DO 24VDC 0.5A. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A (DA502)
• Made To Order: No
• Minimum Order Quantity: 1 piece
• Order Multiple: 1 piece
• Selling Unit of Measure: piece

Dimensions

• Product Net Weight: 0.124 kg
• Product Net Depth / Length: 62 mm
• Product Net Height: 76 mm
• Product Net Width: 67.5 mm

Technical

• Function: 16 DO 24VDC 0.5A. 4 AI: U, I, RTD. 2 AO: U, I. 8 configurable DI/DO: 24VDC 0.5A
• Analog Inputs: 4
• Input Signal: U, I, RTD, DI
• Analog Outputs: 2
• Output Signal: U, I
• Resolution:
  • Analog Input: 13 bit
  • Analog Output: 13 bit
• Number of Digital Outputs: 16
• Number of Digital Configurable I/Os: 8
• Input Voltage Type: DC
• Input Voltage (Uin): 24 V DC
• Input Current: 5 mA
• Maximum Input Voltage: 30 V
• Delay Time (τ): 0.1 … 32 ms
• Output: Transistor
• Output Voltage Type: DC
• Output Voltage (Uout): 24 V DC
• Output Current: 0.5 A
• Degree of Protection: IP20
• Rated Voltage (Ur): 24 V DC
• Supply Voltage: 20.4 … 28.8 V DC
