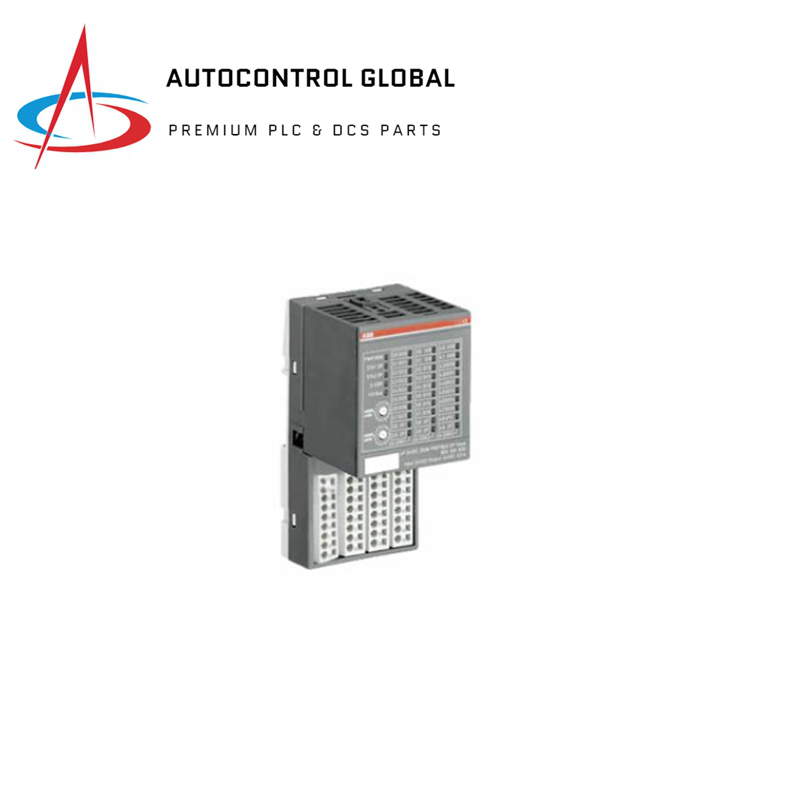

ABB DC532 1SAP240100R0001 Digital Input/Output Module
Manufacturer: ABB
-
Part Number: DC532 1SAP240100R0001
Condition：New with Original Package
Product Type: Digital Input/Output Module
-
Country of Origin: Sweden
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months
General Information
- Extended Product Type: DC532
- Product ID: 1SAP240100R0001
- ABB Type Designation: DC532
- EAN: 4016779649162
- Catalog Description: Digital input/output module. 16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A (DC532)
- Long Description: DC532: S500 Digital input/output module. 16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A. 1-wire.
- Product Net Weight: 0.114 kg
- Product Net Depth / Length: 62 mm
- Product Net Height: 76 mm
- Product Net Width: 67.5 mm
- Function: 16 DI: 24VDC. 16 configurable DI/DO: 24VDC 0.5A
- Number of Digital Inputs: 16
- Number of Digital Configurable I/Os: 16
- Input Voltage Type: DC
- Input Current: 5 mA
- Maximum Input Voltage: 0 ... 30 V
- Delay Time (τ): Signal Exchange 0.1 … 32 ms
- Output: Transistor
- Output Voltage Type: DC
- Output Current: 0.5 A
- Output Voltage Maximum: 20.4 … 28.8 V
- Degree of Protection: IP20
- Supply Voltage: 20.4 … 28.8 V DC
- SCIP: 37dc1f5d-8a13-4e11-9ee5-efcbc63dab42 Germany (DE)
- WEEE B2C / B2B: Business To Business
- WEEE Category: 5. Small Equipment (No External Dimension More Than 50 cm)
