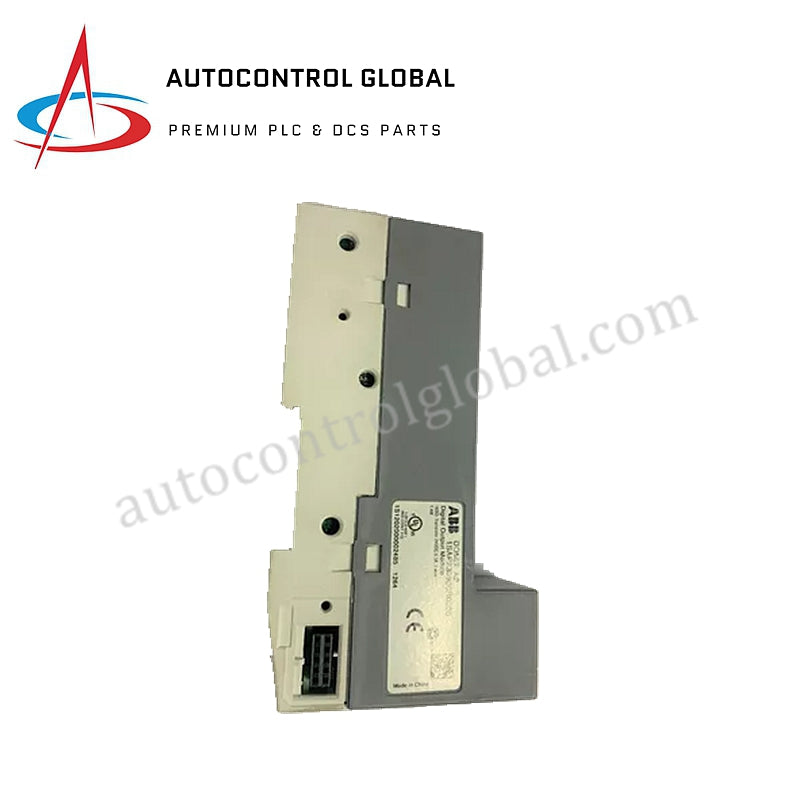

ABB DO562 Digital Output Module

  • Manufacturer: ABB

  • Part Number: DO562

  • Condition：New with Original Package

  • Product Type: Digital Output Module

  • Country of Origin: Sweden

  • Payment:T/T, Western Union

  • Shipping port: Xiamen

  • Warranty: 12 months

Overview

The DO562 is a 16-channel digital output module with transistor outputs, designed for 24 V DC systems.

Key Specifications

  • Supply Voltage: 24 V DC
  • Current Consumption: 20 mA + max. 0.5 A per output
  • Max. Ripple: 5%
  • Inrush Current: 0.000002 A²s
  • Protection: Reversed voltage protection
  • Fusing: 3 A fast-acting fuse recommended for outputs
  • Galvanic Isolation: Yes, between output group and module
  • Surge Voltage: 35 V DC (for 0.5 s)
  • Power Dissipation: Max. 1.4 W
  • Weight: 125 g

Mounting & Cooling

  • Mounting Position: Horizontal or vertical
  • Cooling: Natural convection, with no obstruction from cable ducts or components
