ABB DO810 3BSE008510R1 S800 Digital Output Module In Stock

General Information

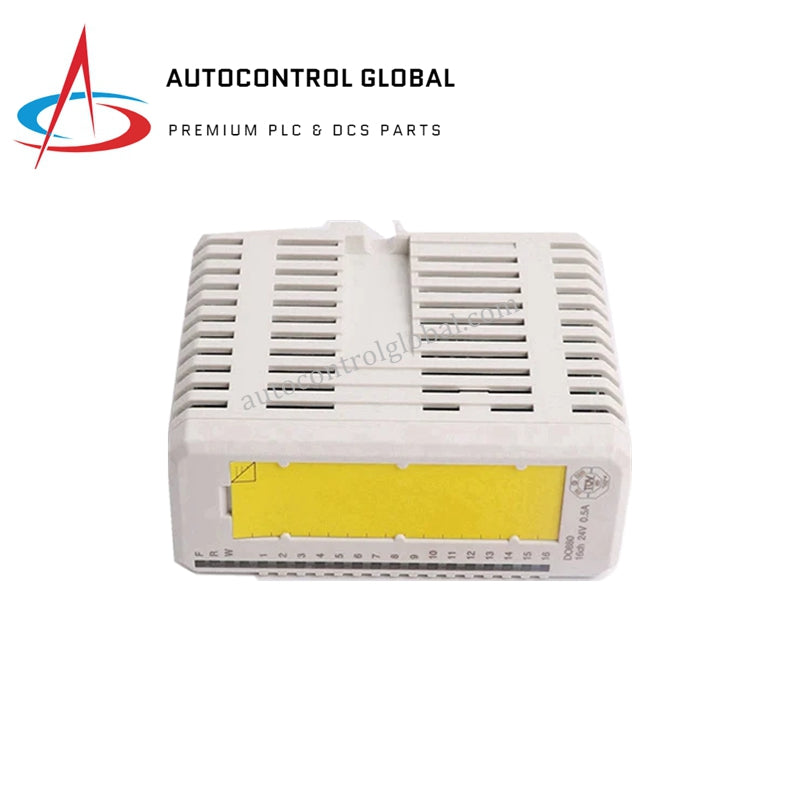

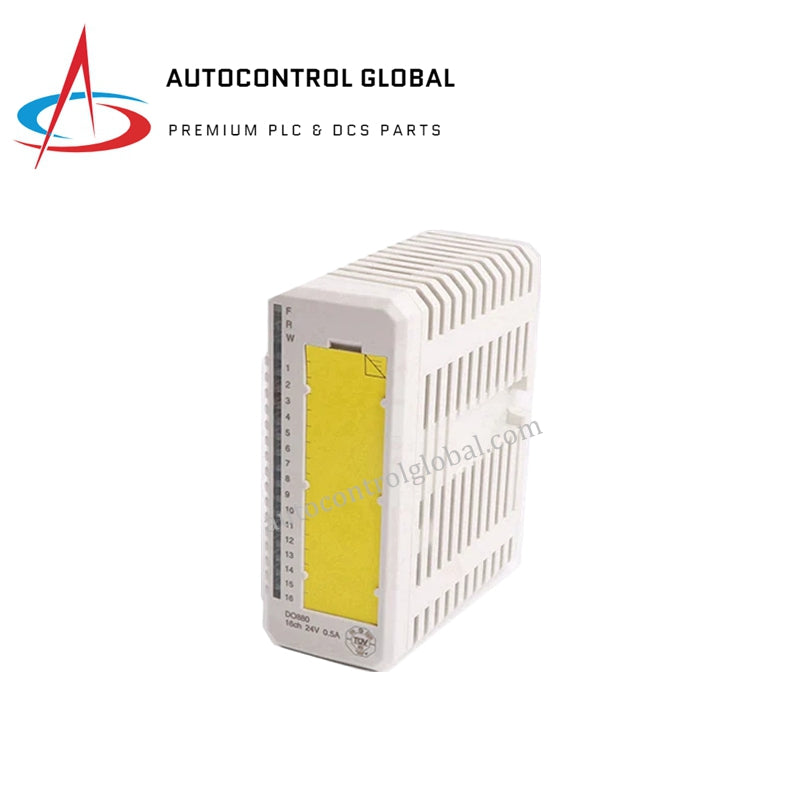

ABB DO810 Digital Output Module

Product ID: 3BSE008510R1
ABB Type Designation: DO810
Catalog Description: DO810 Digital Output 24V 16 ch
Long Description: Isolated in two groups of 8 channels. 0.5A output, short circuit proof. Use with Module Termination Units TU810, TU812, TU814, TU830, TU833.

Dimensions

• Product Net Depth / Length: 102 mm
• Product Net Height: 119 mm
• Product Net Width: 45 mm
• Product Net Weight: 0.2 kg

Technical Specifications

• Channel Type: Digital Output (DO)
• Number of Output Channels: 16
• Output Current: 0.5A per channel
• Short Circuit Protection: Yes (short circuit proof)

Detailed Overview

The ABB DO810 Digital Output Module is designed for applications requiring reliable and robust digital outputs. This module features 16 digital output channels, isolated into two groups of 8 channels each, providing enhanced safety and performance. Each channel can handle an output current of up to 0.5A and includes short circuit protection, ensuring robust operation even under fault conditions.

Key Features

• Isolated Outputs: The 16 channels are divided into two groups of 8, offering electrical isolation that reduces the risk of interference between channels.
• High Reliability: Short circuit proof design ensures the module remains functional even if one or more channels experience a short circuit.
• Compatibility: Designed to work seamlessly with various Module Termination Units (TU810, TU812, TU814, TU830, TU833), expanding its application versatility.
• Compact Design: With dimensions of 102 mm (depth), 119 mm (height), and 45 mm (width), it fits easily into control panels without occupying much space.
• Lightweight: Weighing only 0.2 kg, making it easy to install and handle.
