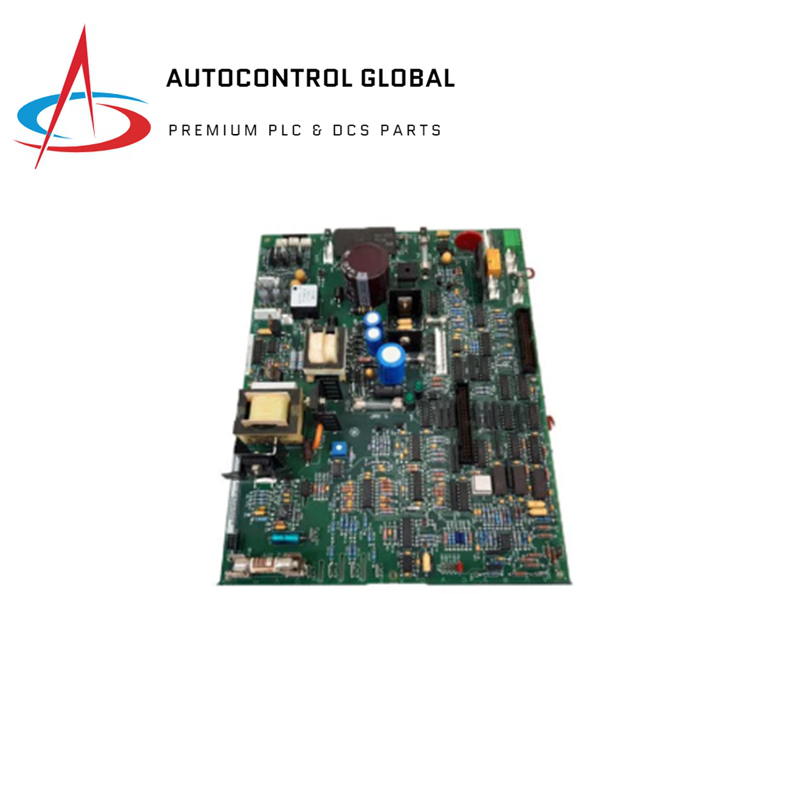

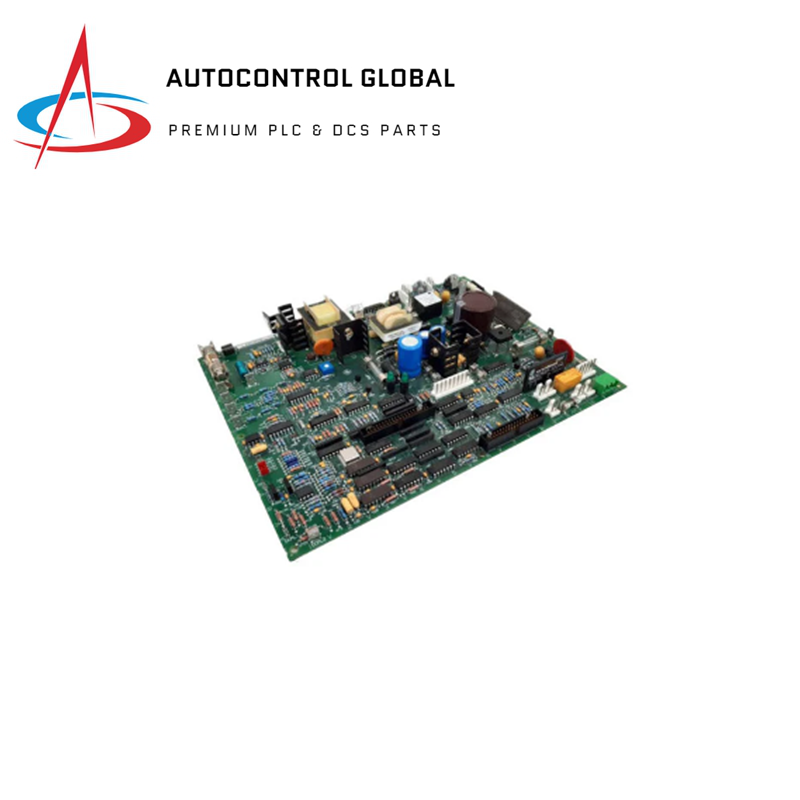

ABB DS200FGPAG1AEC Gate Pulse Amplifier Board

Manufacturer: GE Fanuc
Part Number: DS200FGPAG1AEC
Condition：New with Original Package
Product Type: Gate Pulse Amplifier Board
Country of Origin: USA
Payment:T/T, Western Union
Shipping port: Xiamen
Warranty: 12 months

Description

The DS200FGPAG1AEC2 is a high-frequency power supply board used in GE's Mark V series. It provides gate power for one phase of the SCR (Silicon Controlled Rectifier) bridge, monitors SCR status, and converts AC power to DC. It integrates with the LS2100 static starter system.

Features

High-Precision Amplification: Ensures accurate power control and signal processing.
Wide Input Voltage Range: Allows flexibility in application and compatibility with different power sources.
SCR Status Monitoring: Monitors the status of SCR components to ensure proper functioning.
Switching Power Supply: Converts AC power to DC efficiently.
Gate Driver: Drives the gate of the SCR bridge for reliable operation.

Specifications

Model Number: DS200FGPAG1AEC2
Twelve-Pulse Converter Supply Voltage: 2080 or 3300 VAC
Number of Gate Driver Circuits: Two
Quantity of Fiber-Optic Connectors: 15
- One Fiber-Optic Transmitter
- Fourteen Fiber-Optic Receivers
