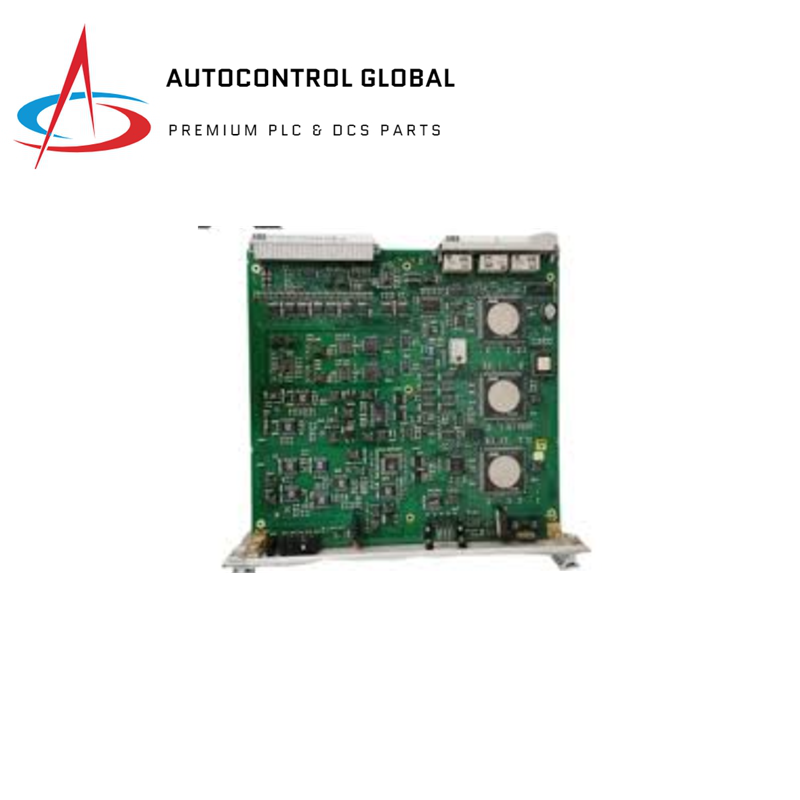

ABB DSPP4LQA HENF209736R0003 Controller Processor Board

Technical Specifications

• Processor: 32-bit DSP core
• Clock Frequency: 400 MHz
• Memory: 2 MB SRAM, 4 MB Flash
• I/O:
  • Digital Inputs: 16 points
  • Digital Outputs: 16 points
  • Analog Inputs: 4 points
  • Analog Outputs: 2 points
  • Serial Communication Ports: 2
• Operating Temperature: -40°C to 85°C
• Operating Humidity: 5% to 95% RH, non-condensing

Features

• High-Performance DSP Core: Handles complex real-time control tasks and high-throughput applications with efficiency.
• Flexible I/O Interfaces: Includes digital inputs/outputs, analog inputs/outputs, and serial communication ports for diverse device and sensor connectivity.
• Robust and Durable: Designed to withstand harsh industrial environments.
• High Reliability: Built with high-quality components to ensure long-term stable operation.
• Programmable: Can be programmed using ABB AC500ST software.
• Certifications: Complies with CE and ATEX standards for safety and performance.

Applications

• Industrial Automation: Controls robots, conveyor belts, packaging machinery, etc.
• Process Control: Monitors and controls industrial processes such as chemical reactions and oil refining.
• Building Automation: Manages HVAC systems, lighting systems, etc., within buildings.
• Safety Systems: Implements safety controls to ensure operational safety.
